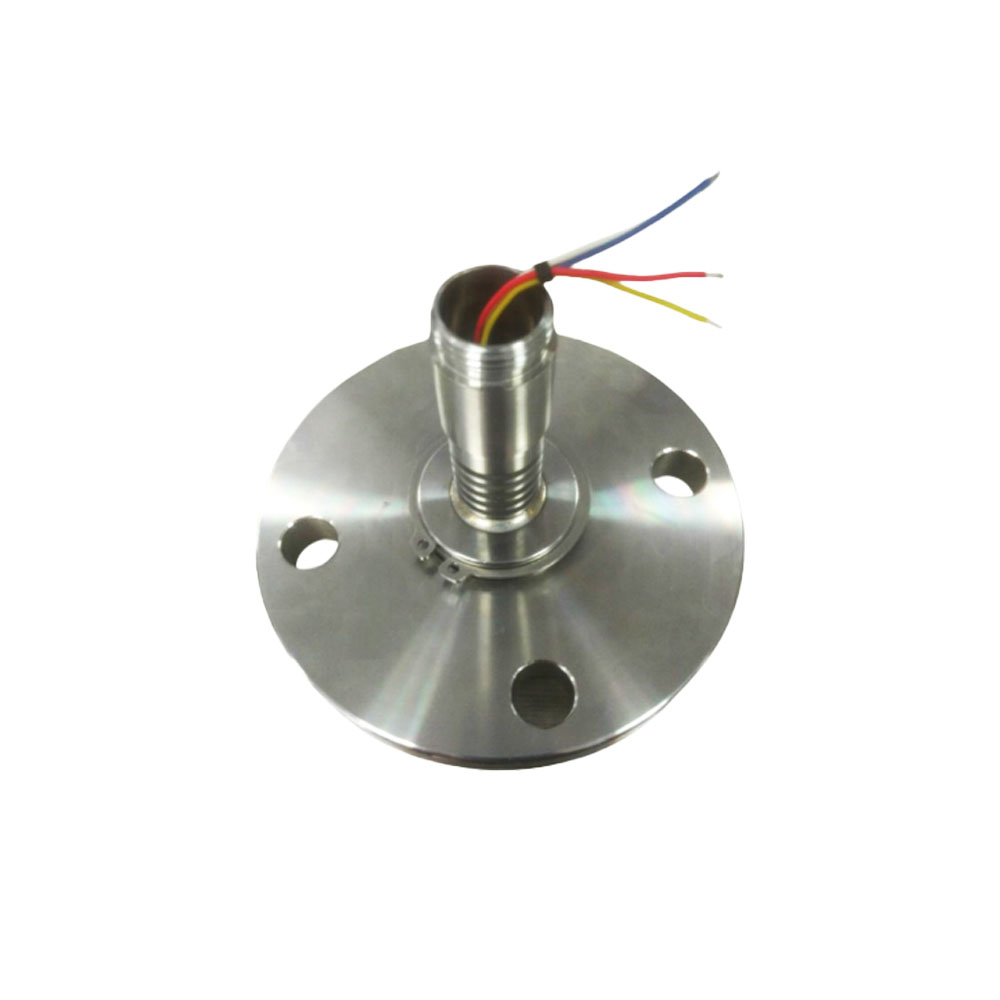

PC12F Flush Diaphragm Pressure Sensor with Flange
Features
■ Flange mounting
■ Constant current compensation
■ Compensation board filled with glue for protection against moisture
■ Large size diaphragm,fully welded and sealed, long-term reliability and durability
■ For pressure measurement of gas, liquid, steam
■ Anti-corrosion diaphragm optional
■ Especially suitable for high temperature viscous liquids
Applications and industries
■ Process control used in petroleum, chemical industry, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiments and aviation and military industries.
Product overview
PC12F flush diaphragm pressure sensor with flange is a flush diaphragm product that meets the flange installation requirements of customers. This product uses imported diffused silicon pressure sensitive elements, and after long-term aging and stability screening, the product performance is stable and reliable. It is an excellent choice for field use and production of pressure transmitters.
PC12F flush diaphragm pressure sensor with flange adopts the international standard flange interface standard, allowing for user-friendly flange installation methods. As the force diaphragm is exposed to directly sense pressure, it is easy to clean and can meet requirements for harsh conditions such as moisture and water resistance. This series of products are widely used in industrial process control, petroleum, chemical industry, metallurgy, and other media containing particulate and viscous substances.
Product Parameters
Performance parameters | |
Pressure range | 0~35kPa…6MPa |
Pressure reference | Gauge pressure | Absolute pressure | Sealed gauge pressure |
Power supply | 1.5mA excitation |
Non-linearity | ±0.25%FS(BFSL,@25±5℃) |
Temperature drift | ±1.5%FS |
Compensation temp. | -10℃~70℃ |
Operating temp. | -40℃~100℃ |
Storage temp. | -40℃~85℃ |
Insulation resistance | ≥200MΩ/250VDC |
Overload pressure | 150%FS |
Long-term stability | ±0.2%FS/Year |
Diaphragm material | 316L(316L Sprayed with PTFE、Hastelloy C、Tantalum) |
Oil filling | Silicon oil |
Electrical connection | M25×1,M27×2 |
Process connection | DN25、DN50、DN80 |
Weight | 5kg (DN50) |
