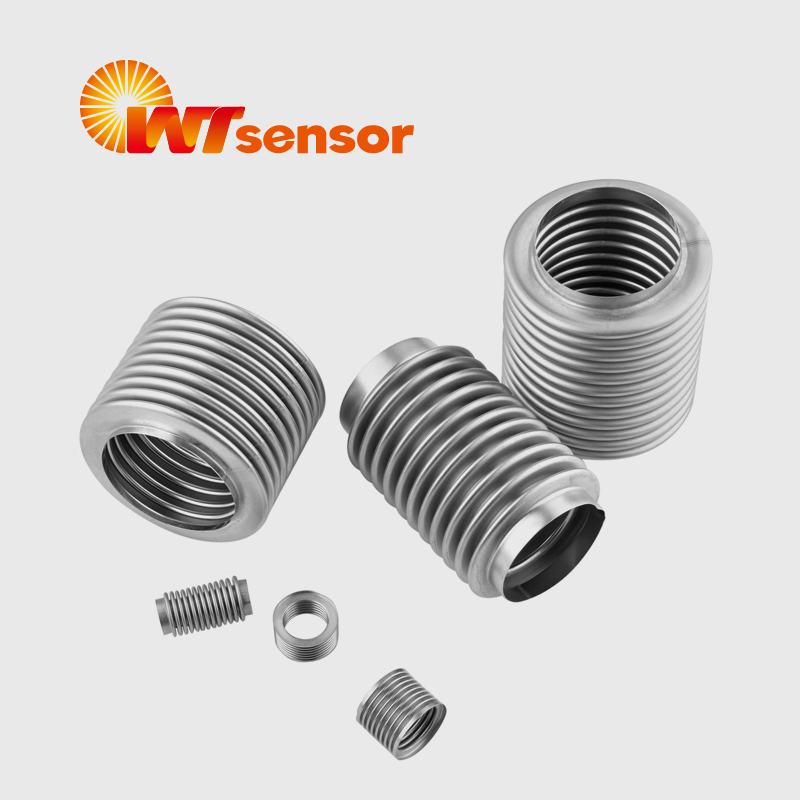

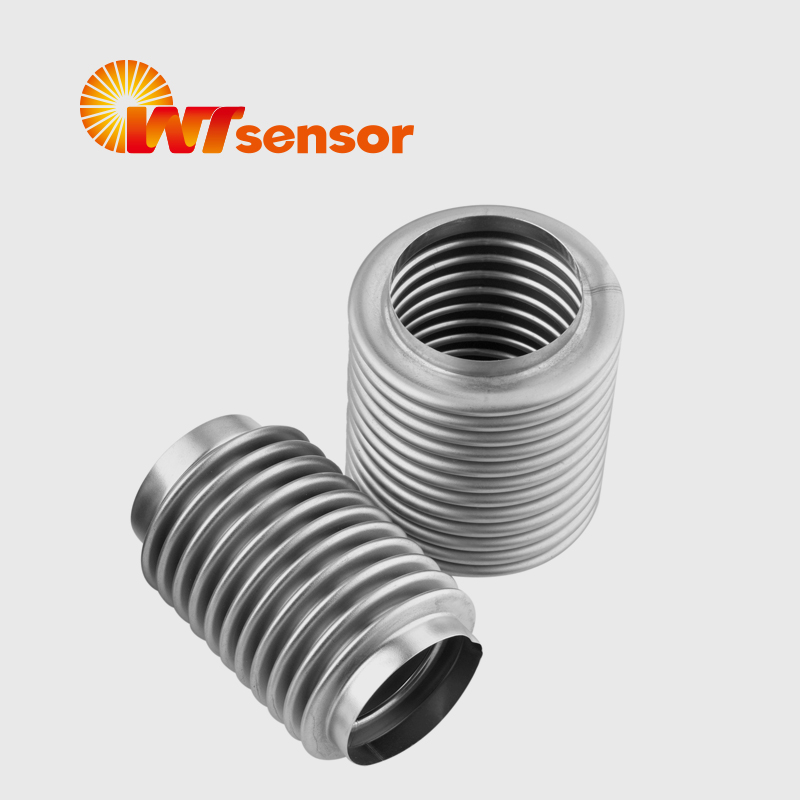

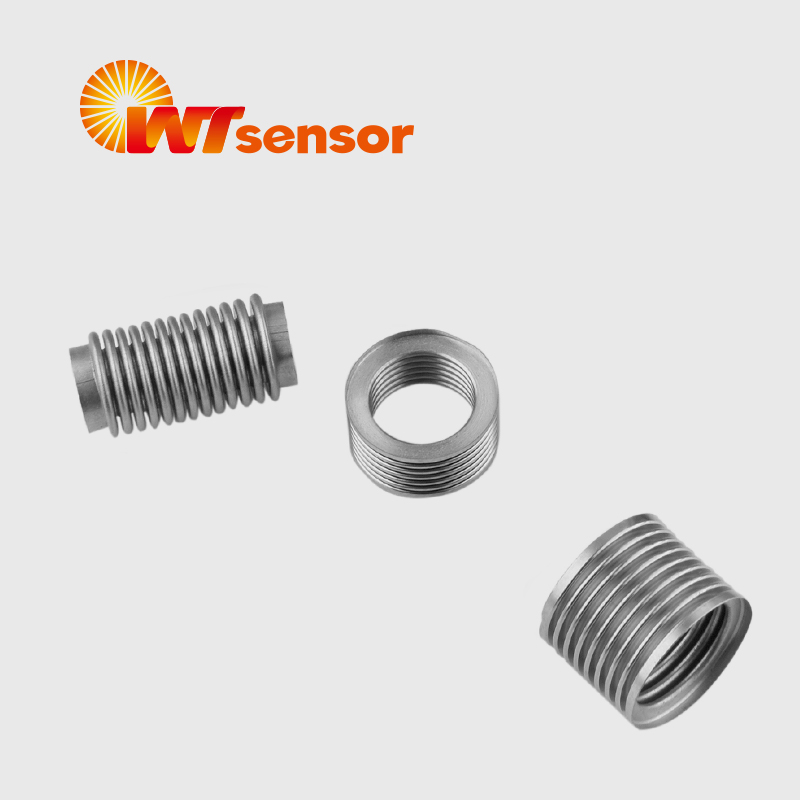

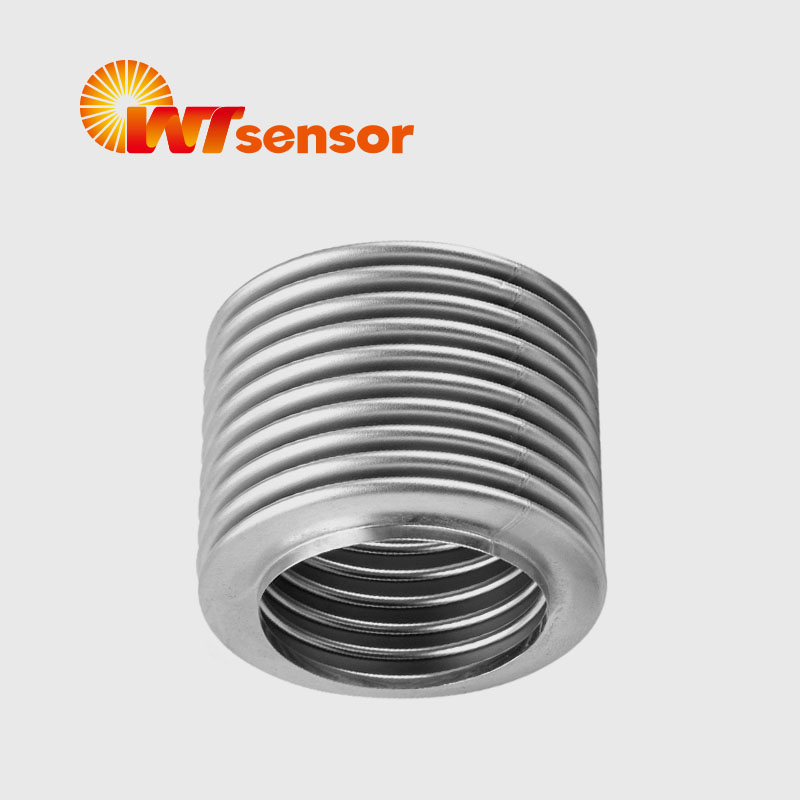

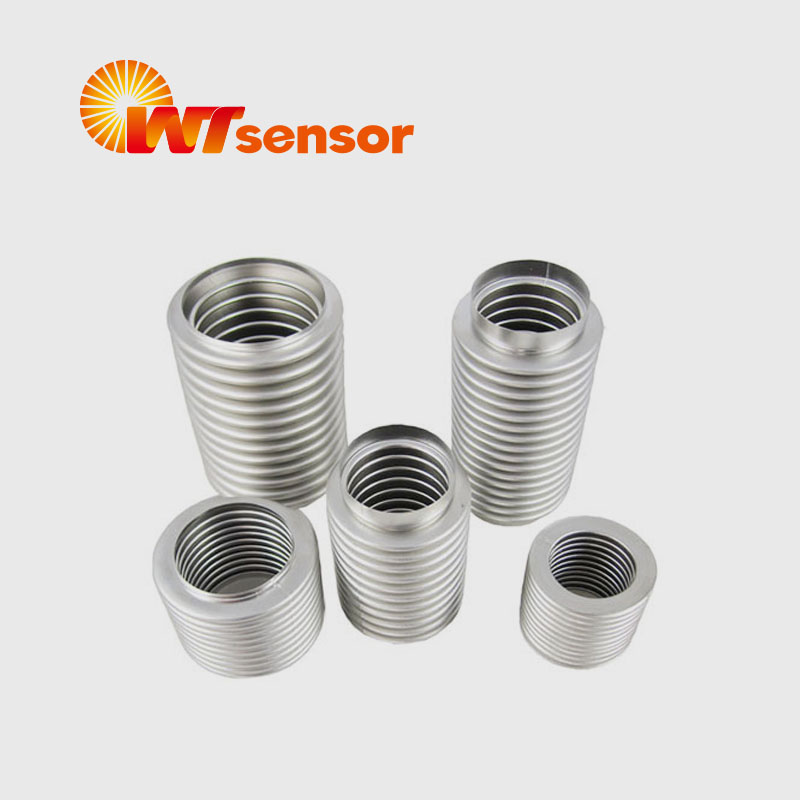

Electroforming Precision Bellows

Features

■ High precision

■ Stain resistance

■ Low leakage rate

■ The tube wall thickness can be 0.008 millimeter

Applications and industries

■ Instruments and apparatus

■ Automatic communication control

■ Medical facility

■ Aeronautic & Astronautics

■ Military equipment

Product Overview

There are 5 kinds of metal bellows: rolled, hydroformed, welded, chemically deposited, electroformed. The electroplate metal onto a mandrel with aluminum material.

The mandrel will be dissolved after electroforming.

Inquire Now Download

Product Parameters

Techincal Indicators

1. Environmental suitability
Temperature				-196℃～176℃			1. The elasticity remains in liquid nitrogen and the mechanical strength is improved. 2. The high temperature limit is about 176℃, which will lead to bellows embrittlement or annealing
Corrosion resistance				Corrosion resistance in dry air and alkaline environment					· Not resistant to acid, salt and sea water
Magnetic characteristic				Magnetic
2.Specification and size
No	Inner diameter (mm)	Outer diameter (mm)	Pitch of waves (mm)		Max splash n	Wall thickness (mm)		Max pressure resistance (Mpa)		Single wave steel K			Maximum allowable single-wave displacement (mm)	Active area S (cm²)
										Axial	Angular	Horizontal
										N/4mm	Nm/Grad	N/mm
1	2	3	0.5		10	0.025		1.6		47	0.96	2600	±0.025	0.05
2	2	3.5	0.5		10	0.025		0.61		16	0.45	1200	±0.04	0.061
3	2	4	0.5		10	0.025		0.29		7.4	0.27	730	±0.06	0.073
4	4	5.5	0.5		10	0.03		0.85		55	3.8	10000	±0.04	0.179
5	4	6	0.5		10	0.03		0.42		26	2.1	5600	±0.06	0.199
6	4	7	0.8		16	0.03		0.22		7.4	0.82	870	±0.12	0.243
7	6	8	0.5		10	0.03		0.44		38	5.5	15000	±0.06	0.387
8	6	9	0.8		16	0.03		0.21		11	2	2100	±0.14	0.448
9	6	10	1.2		24	0.03		0.15		4.5	1	480	±0.20	0.513
10	8	11	0.8		16	0.04		0.35		35	9.5	10000	±0.11	0.715
11	8	12	1.2		24	0.04		0.24		14	4.6	2200	±0.19	0.796
12	8	13	0.2		24	0.04		0.14		7.8	2.9	1400	±0.26	0.882
13	10	13	0.8		16	0.04		0.35		44	17	18000	±0.11	1.045
14	10	15	1.2		24	0.04		0.14		10	4.9	2300	±0.28	1.24
15	10	17	2		40	0.04		0.08		3.4	2.2	370	±0.43	1.46
16	12	16	1.2		24	0.05		0.33		42	24	11000	±0.16	1.55
17	12	18	2		40	0.05		0.19		12	8.7	1500	±0.32	1.79
18	12	20	2		40	0.05		0.094		5.5	4.9	840	±0.49	2.05
19	16	21	1.2		24	0.06		0.28		53	52	24000	±0.19	2.7
20	16	24	2		40	0.06		0.13		13	16	2800	±0.47	3.18
21	16	27	2		60	0.06		0.073		4.8	7.7	590	±0.72	3.71
22	20	26	2		40	0.07		0.31		55	83	14000	±0.28	4.18
23	20	30	3		60	0.07		0.14		12	25	1900	±0.62	4.97
24	20	33	3		60	0.07		0.062		6	15	1100	±0.92	5.63
3. Surface treatment (select according to the demand )
Gold plated or silver plated					Improve the weld-ability, electrical conductivity, turbidity resistance of bellows
Organic coating					Improve the turbidity resistance of bellows
