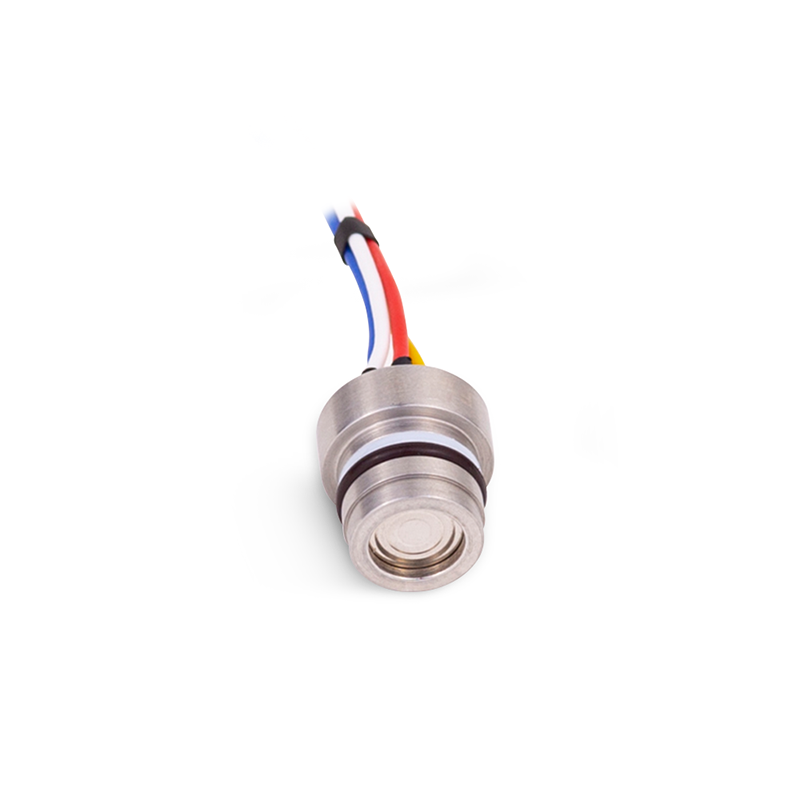

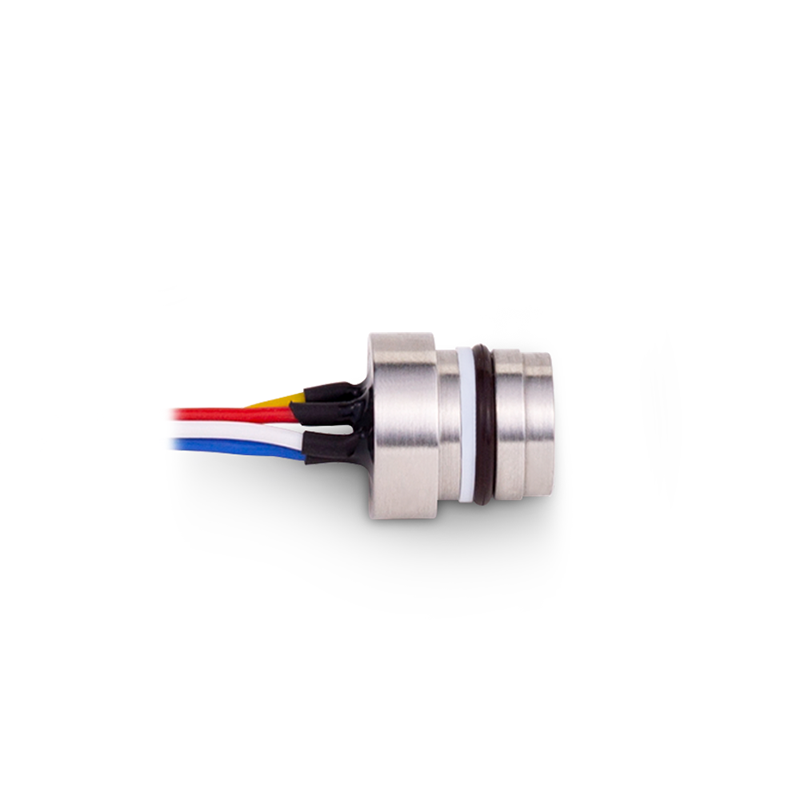

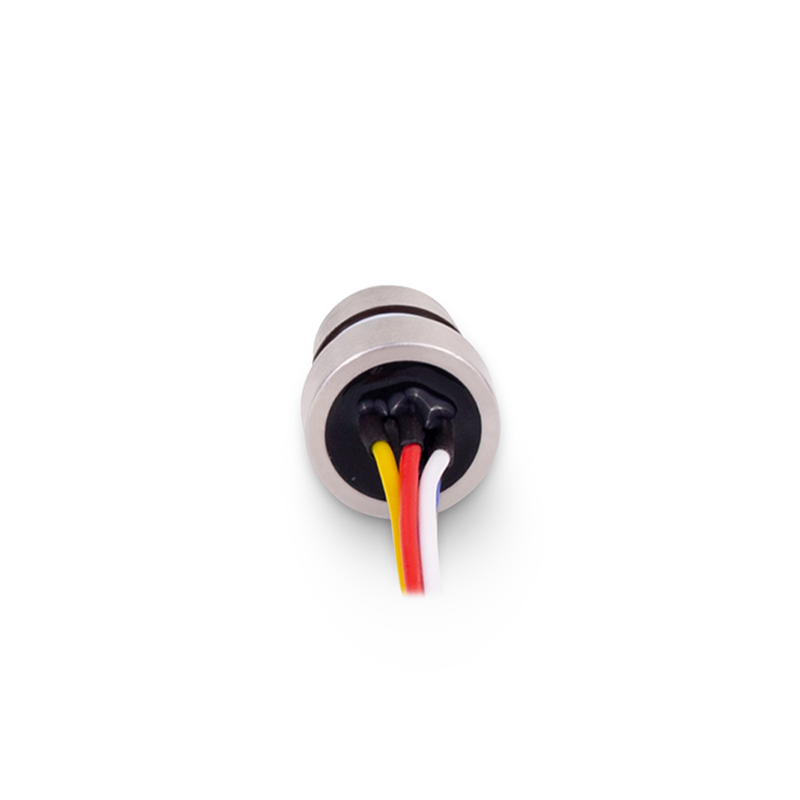

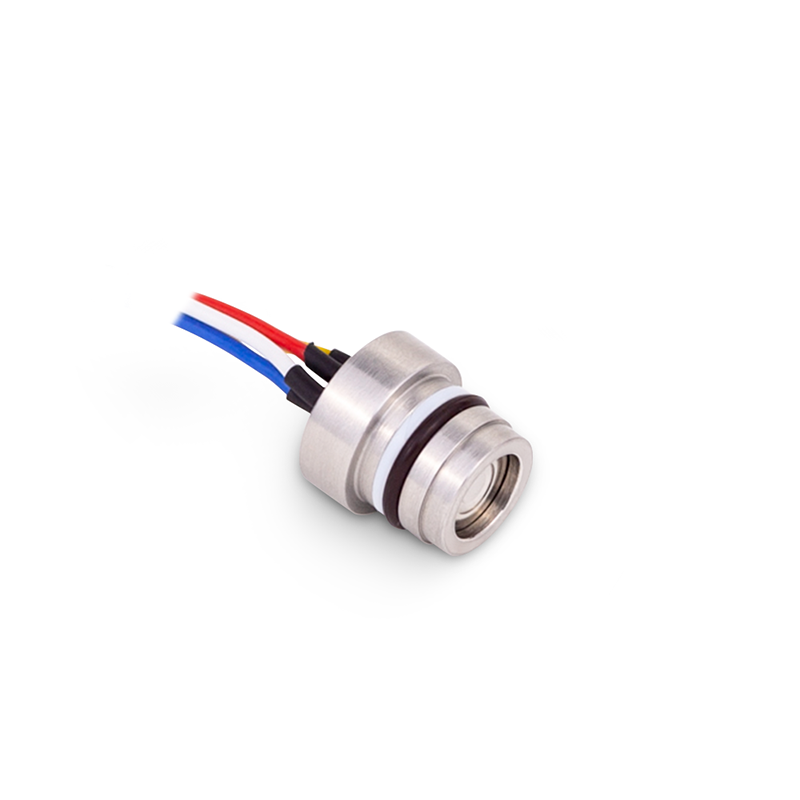

PC13 Piezoresistive Silicon Pressure Sensor
Product overview
The PC13 piezoresistive silicon pressure sensor is the core component for manufacturing pressure sensors and pressure transmitters. As a high-performance pressure sensitive component, PC13 can easily amplify signals and be assembled into pressure transmitters with standard signal output.
PC13 packages diffused silicon pressure sensitive die to a 316L stainless steel housing. The external pressure is transmitted to the sensitive die through the stainless steel diaphragm and the internally sealed silicon oil. The pressure sensitive die does not directly cntact the measured medium, forming an all-solid structure of pressure measurement. This allows the product to be applied to a variety of occasions, including harsh corrosive medium environments.
PC13 uses the O-ring for pressure sealing, making installation easy.
Our company can undertake special customization based on users’ needs, such as pressure sensors with wide temperature compensation, high reliability, shock resistance, and vibration resistance.
Features
■ With constant current and constant voltage excitation options
■ Highly reliable imported pressure die
■ Wide temperature compensation
■ Normalized output available
■ The compensating board with glue for moisture-proof protection
■ All 316L material
■ High performance, all solid, high reliability
■ 18 months warranty period
Applications
■ Process control systems
■ Pressure calibration instruments
■ Refrigeration equipment and HVAC control
■ Hydraulic systems and valves
■ Level measurement
■ Biomedical instruments
■ Ships and navigation
■ Aircraft and avionics systems
Product Parameters
Electrical performance parameters | |
Pressure range | 6MPa…60MPa |
Pressure reference | Absolute pressure, Sealed gauge pressure |
Excitation | 1.5mA recommended for constant current |
10V recommended for constant voltage | |
Input impedance | Constant current: 2kΩ~5kΩ |
Constant voltage: 3kΩ~18kΩ | |
Electrical connection | Gold-plated Kovar pins or silicon soft wires |
Compensation temp. | -10℃~70℃ |
Operating temp. | -40℃~125℃ |
Storage temp. | -40℃~125℃ |
Insulation resistance | ≥200MΩ/250VDC |
Response time | ≤1ms (up to 90%FS) |
Measured medium | All the liquids and gases compatible with 316L |
Mechanical vibration | 20g (20~5000Hz) |
Shock | 100g (10ms) |
Durability | 1×106 (cycles) |
Structural performance parameters | |
Diaphragm material | 316L |
Housing material | 316L |
Oil filling | Silicon oil |
Sealing O-ring | Fluorine rubber O-ring |
Basic parameters | ||||||
Item | Condition | Min | Typical | Max | Unit | Note |
Nonlinearity | -0.3 | ±0.2 | 0.3 | %FS | Note(1) | |
Hysteresis | -0.05 | ±0.03 | 0.05 | %FS | ||
Repeatability | -0.05 | ±0.03 | 0.05 | %FS | ||
Output signal under zero pressure | -2 | ±1 | 2 | mV | ||
Output signal under full-scale span pressure | 1.5mA 10V | 60 80 | 90 100 | 150 120 | mV | |
Temp.effect on offset | -1.5 | ±0.75 | 1.5 | %FS | Note(1) | |
Sensitivity temp. drift | -1.5 | ±1.0 | 1.5 | %FS | Note(2) | |
Thermal hysteresis | -0.075 | ±0.05 | 0.075 | %FS | Note(3) | |
Long-term stability | -0.3 | ±0.2 | 0.3 | %FS/Year | ||
