WTP01 Pressure Sensor
Product overview

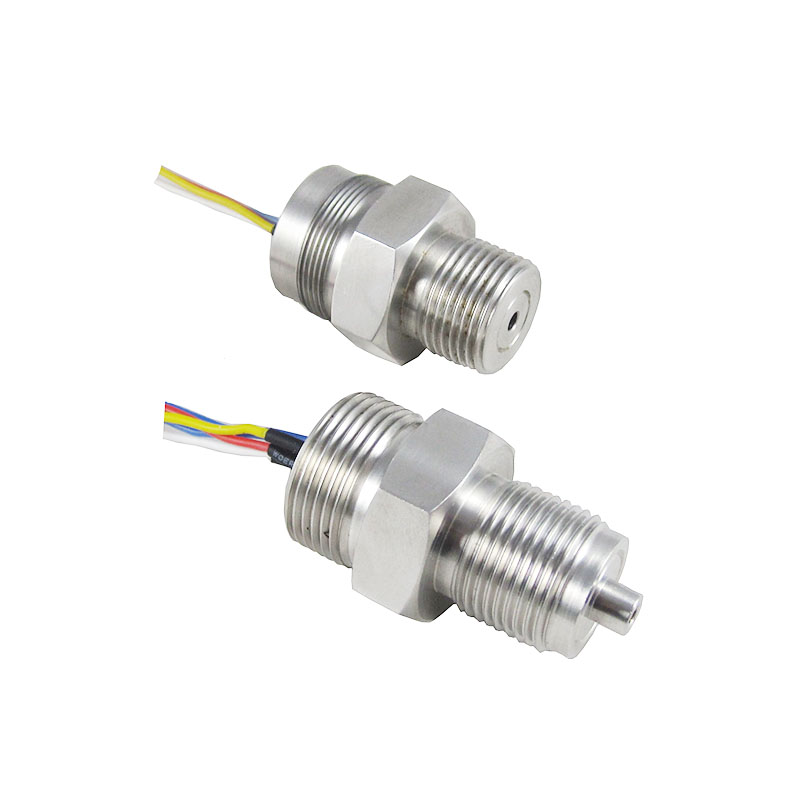

WTP01 pressure sensor packages a PC10 pressure sensor in a workpiece with a standard pressure port. It is widely used in the process control and measurement of petroleum, chemical, metallurgy, aviation, aerospace, marine, medical equipment, vehicles, refrigerators, compressors and other industries
Features
■ With constant current and constant voltage excitation options
■ Imported highly reliable pressure die
■ Wide temperature compensation
■ Compensation board filled with glue for protection against moisture
■ A variety of pressure port options available
■ High performance, all solid, high reliability
■ 18 months warranty period
Applications
■ Process control systems
■ Pressure calibration instruments
■ Refrigeration equipment and HVAC control
■ Hydraulic systems and valves
■ Level measurement
■ Biomedical instruments
■ Ships and navigation
■ Aircraft and avionics systems
Product Parameters
Electrical performance parameters | |
Pressure range | 0～10kPa…100MPa |
Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure |
Excitation | 1.5mA recommended for constant current 10V recommended for constant voltage |
Input impedance | Constant current: 2kΩ～5kΩ Constant voltage: 3kΩ～18kΩ |
Electrical connection | silicon soft wire |
Compensation temp. | 0℃～60℃（Range＜70kPa）; -10℃～70℃（other ranges） |
Operating temp. | -40℃～120℃ |
Storage temp. | -40℃～120℃ |
Insulation resistance | ≥200MΩ/250VDC |
Response time | ≤1ms (up to 90%FS) |
Measured medium | All the liquids and gases compatible with 304. |
Mechanical vibration | 20g（20～5000HZ） |
Shock | 100g（10ms） |
Service life | 1.0×106(cycles) |
