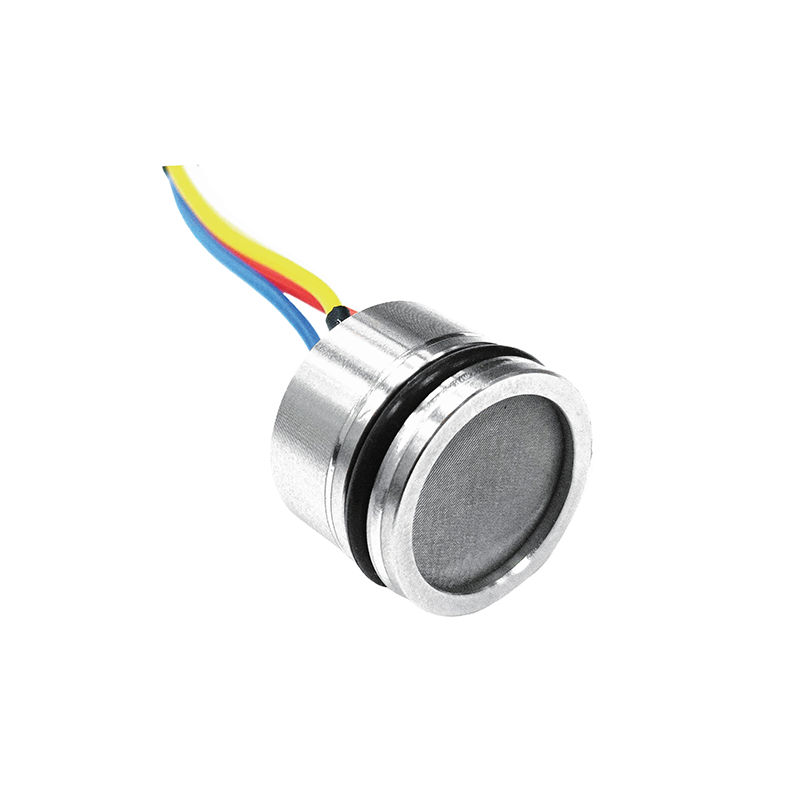

X19-F Micro-Pressure Sensor
Product overview
The X19-F Micro-Pressure Sensor is the core component for manufacturing pressure sensors and pressure transmitters. As a small-range and high-performance pressure-sensitive component, it can easily amplify signals and be assembled into pressure transmitters with standard signal output.
X19-F seals diffusion silicon pressure sensitive die to 316L stainless steel housing. The external pressure is applied directly to the back of the sensor chip, forming an all-solid structure for pressure measurement. Therefore, this product can only be used to measure clean, non-corrosive gases.X19-F uses an O-ring for pressure sealing, making installation easy.
Our company can also undertake special customizations to meet users’ requirements, such as pressure sensors with a fully welded structure, wide temperature compensation, and high reliability.
Features
■ Small range
■ Constant current excitation
■ Highly reliable imported pressure die
■ Temperature compensation
■ Normalized output available
■ The compensating board with glue for moisture-proof protection
■ Φ18.8mm standard OEM
■ Fully 316L material
■ Steel mesh for impurity filtration
■ High performance, all solid, high reliability
■ 18 months warranty period
Applications
■ Industrial process control systems
■ Pressure calibration instruments
■ Refrigeration equipment and HVAC control
■ Gas pressure measurement
■ Biomedical instruments
■ Pressure measuring instrument
Product Parameters
Electrical performance parameters | |
Pressure range | -10kPa~10kPa |
Pressure reference | Gauge pressure |
Excitation | 1.5mA |
Input impedance | 2kΩ~5kΩ |
Electrical connection | Silicon soft wire |
Compensated temp. | 0℃~50℃ |
Operating temp. | -20℃~85℃ |
Storage temp. | -20℃~85℃ |
Insulation resistance | ≥200MΩ/250VDC |
Response time | ≤1ms (up to 90%FS) |
Measured medium | Clean and non-corrosive gas |
Mechanical vibration | 20g(20~5000Hz) |
Shock | 100g (10ms) |
Durability | 1×106 (cycles) |
Structural performance parameters | |
Housing material | 316L |
Sealing ring | NBR |
Basic parameters | ||||||
Item | Condition | Min | Nominal | Max | Unit | Note |
Nonlinearity | -2.0 | ±1 | 2.0 | %FS | Note(1) | |
Hysteresis | -0.05 | ±0.03 | 0.05 | %FS | ||
Repeatability | -0.05 | ±0.03 | 0.05 | %FS | ||
Output signal under zero pressure | -2 | ±1 | 2 | mV | ||
Output signal under full-scale span pressure | 100Pa 250Pa 500Pa Other ranges | 7 10 10 20 | 15 30 20 35 | 25 50 35 70 | mV | Excitation:1.5mA |
Temp.effect on offset | 100Pa 250Pa 500Pa Other ranges | -10 -5 -3 -2 | ±5 ±3.5 ±2 ±1.5 | +10 +5 +3 +2 | %FS | Note(2) |
Sensitivity temp. drift | <1kPa Other ranges | -5 -2 | ±3.5 ±1.5 | 5 2 | %FS | Note(2) |
Long-term stability | -0.3 | ±0.2 | 0.3 | %FS/Year | ||
