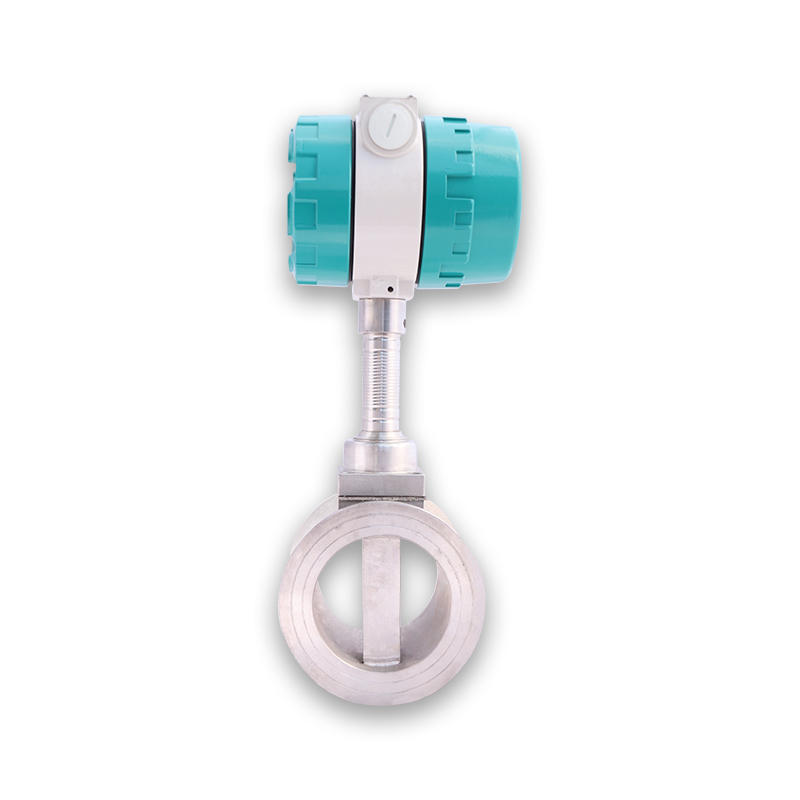

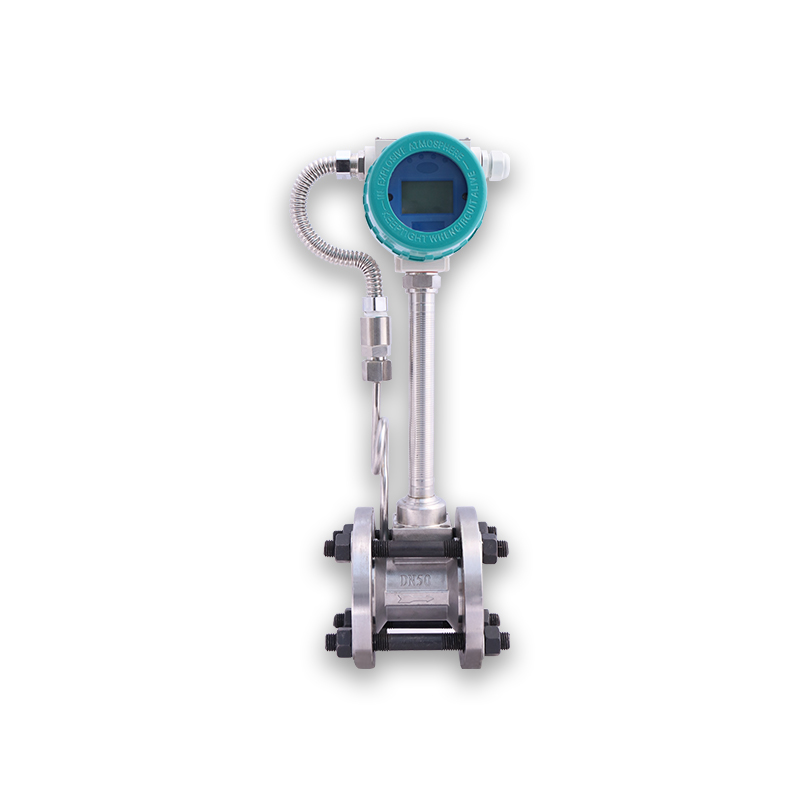

PCWJ Series Vortex Flow Meter

Features

■ The structure of Vortex flow meter is simple and strong, no movable parts, and it is very stable.

■ Simple installation and easy maintenance

■ Wide measuring range, the ratio is up to 10:1

■ Low pressure loss and operating costs.

■ When measuring the volume of fluid, compensate as required, replace parts without re-calibrate the flow meter.


Introduction

The series of Vortex Flow Meter is based on Von Karman’s Vortex Principle, which adopts piezoelectric crystal as testing components. It is a new kind of stress detecting vortex flow meter. It has the advantages of wide range rate, high accuracy, low pressure loss, good medium generality, pulse signal output proportional to flow, convenient to connect with computer etc. As the detector probe of sensor and the vortex generating body are installed separately, and the high temperature resistant piezoelectric crystal doesn’t contact with medium, so the instrument is of simple structure, good generality, and high stability.

PCWJ series Vortex Flow Meter can be used to detect and measure the flow of all kinds of gas, fluid and steam.


1% accuracy stainless steel steam gas liquid fluid vortex flow meter,China 4~20mA RS485 Pulse vortex flowmeter


Vortex flow meter consists of converter (with amplifier board), bracket, bluff body components (Triangular prism, probe) and body. Range for liquid is 0.7m/s~7m/s, for gas, 7m/s~40m/s. Accuracy for liquid is 1.0%, for gas 1.5%. Working pressure 2.5~4.0MPa, applicable to measure gas, fluid and steam.

Product Parameters

Measuring medium

Steam, gas,   liquid (Avoid of multiple-direction fluid)

Accuracy

Liquid:   1.0%         Gas: 1.5%

Repeatability

Liquid:   0.33%        Gas: 0.5%

Range

Liquid:   0.7m/s~7m/s   Gas: 7m/s~40m/s

Working   pressure

Standard   1.6MPa, 2.5~4.0MPa (on request)

Fluid   temperature

-40~250 (Common type); 100~ 350   (High-temperature type)

Body material

304   stainless steel (SS316 is optional)

Output signal

Pulse   (three wires, low level≤1V; High level4V); 4~20mA; RS485

Power supply

24VDC   (12VDC), Lithium battery

Ambient   temperature

-35~ 60 (without LCD); -5~60(with   LCD)

Relative   humidity

5~95%

Protection   level

IP65

Electrical   connection

M20*1.5

Explosion-proof

Optional
