The Flush Pressure Transmitter with Tri Clamp

PCM350K Features

■ The pressure connection adopts 316L flat diaphragm structure

■ Sanitary type, anti-scaling

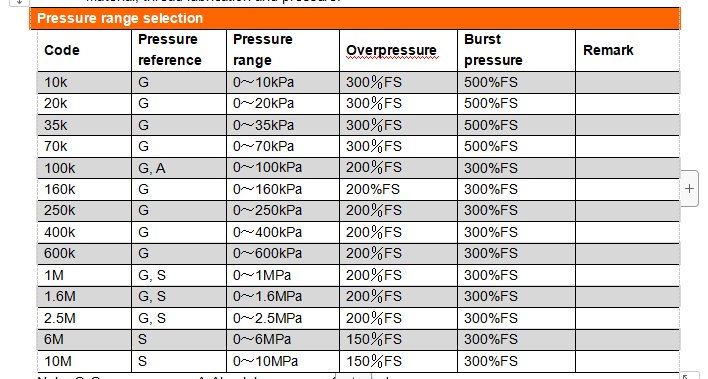

■ Wide pressure range, can measure the absolute pressure, gauge pressure and sealed pressure

■ Well sealed, can ensure long-term stable work

■ With the cooling fan design, excellent high temperature medium application performance

■ Optional multiple kinds of output signals, can be customized according to the customer’s requirements

 Applications and industries

■ Medicine and health, food, wine-making, milk, beverage and other viscous and easily plugged situations with high sanitary and convenient cleaning requirements

■ Environmentally friendly chemical industry coating, polyurethane equipment, paint inspection system etc.
