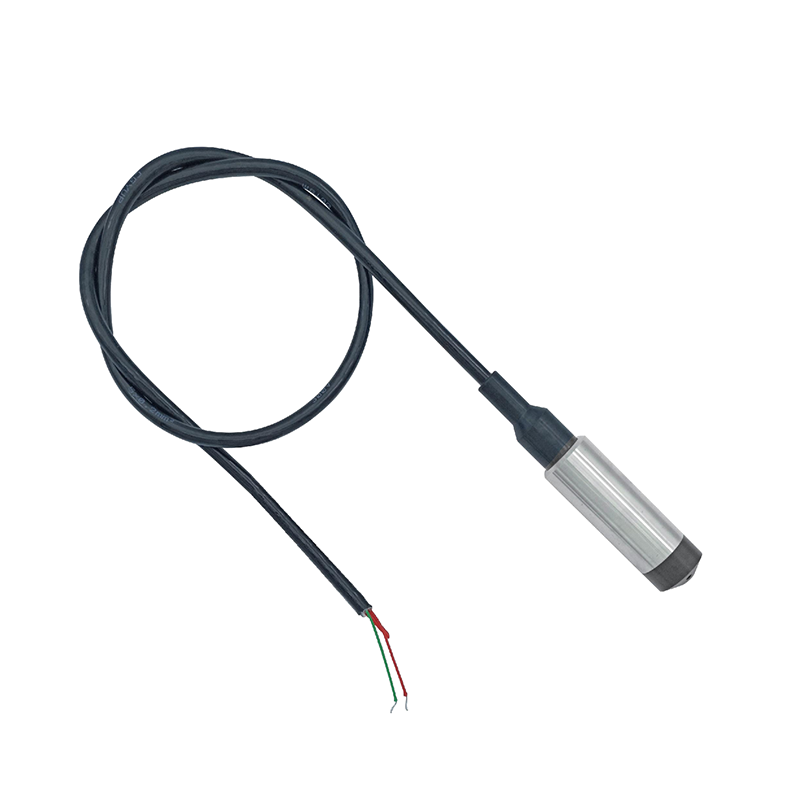

PCM263 Level Transmitter
Product overview
PCM263 Level Transmitter adopts the high-performance diffusion silicon piezoresistive pressure sensor as the measuring element, and accurately measures static pressure of the liquid proportional to the level depth; the result is converted to the standard current signal through the signal conditioning circuit, establishing the linear corresponding relation between the output signal and liquid depth to realize the measurement for the liquid depth. PCM263 has the advantages of high precision and small volume. By submerging it directly into liquid, the height from the end of the transmitter to the liquid surface can be measured easily. The product is applicable to the level measurement and control in the petroleum, chemical, power plant, urban water supply, and hydrological exploration fields.This product, with stable and reliable performance, has passed long-term aging and stability screening and can be used in harsh outdoor environments.
Features
■ Diffusion silicon piezoresistive pressure sensor
■ Immersion probe measurement, easy to install
■ For level measurement
■ High precision and all stainless steel structure
■ Small size and light weight
■ Strong anti-interference; good long-term stability
■ Anti-vibration, shock resistance
Applications
■ Water level measurement in rivers and lakes
■ Level measurement of containers and storage systems
Product Parameters
Performance parameters | |
Pressure range | 0~1mH₂O…10mH₂O |
Pressure reference | Gauge pressure |
Accuracy | ±0.5%FS (@25℃) |
Supply | 9~30V |
Output signal | 4~20mA |
Temperature drift | 35kPa: ±3%FS (@0~60℃) |
Others: ±1.5%FS (@-10~70℃) | |
Response time | ≤100ms (Up to 90%FS) |
Overload pressure | (Refer to “pressure range selection” on page 3) |
Durability | ≥106 (cycles) |
Operating temp. | -20℃~70℃ |
Medium temp. | -10℃~70℃ |
Storage temp. | -40℃~70℃ |
Insulation resistance | ≥100MΩ/250VDC |
Protection | IP68 |
Medium compatibility | All kinds of media compatible with stainless steel 304 (Protective cap: PC+ABS) |
