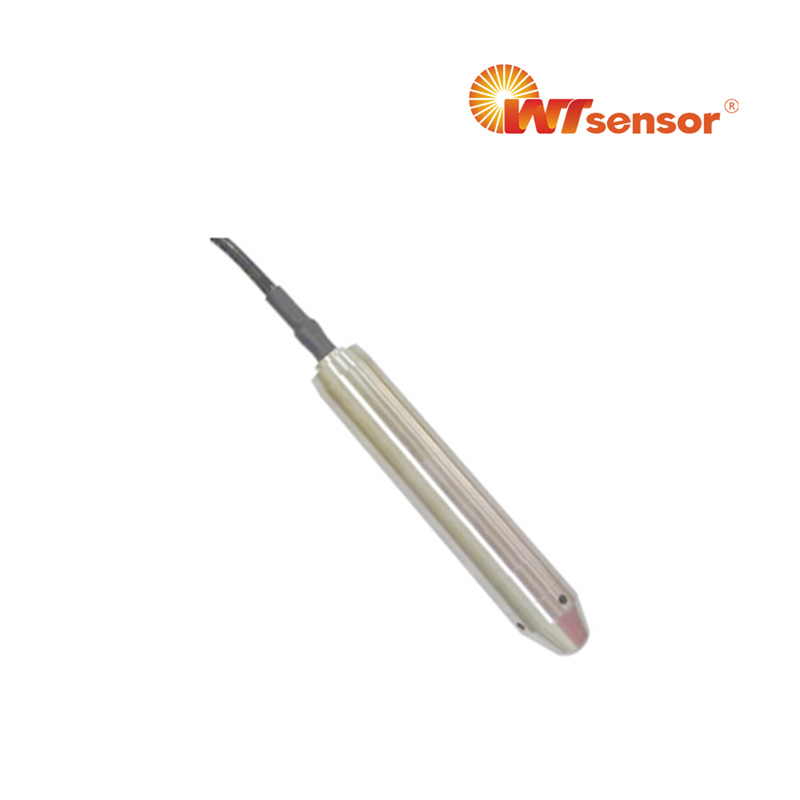

PCM2600 Submersible Level Transmitter
l Piezoresistive silicon chip employed
l Probe insertion measurement mode, simple installation, easy to use
l Digital circuit compensation
l Multiple protection structure design, high protection ability
l Strong anti-interference ability
l Moisture proof, vibration resistant
l Corrosion resistant stainless steel adopted, applicable to various industry fields
PCM2600 submersible level transmitter,China pressure transmitter,wotian pressure transmitter
PCM2600 Submersible Level Transmitter accurately measures static pressure of the liquid proportional to the level depth using high performance piezoresistive silicon chip as the measuring element.Nanjing Wotian Technology Co., Ltd is a Chinese manufacturer that produces the transmitter and sensor.
Product Parameters
Pressure range | |
Pressure range | 0.5m, 1m, 2m, 5m, 10m, 20m, 50m, 100m, 200m H2O |
Overpressure | |
Output signal | |
Output | 4 to 20mA | 1 to 5V | 0 to 5V |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. |
Excitation | 24VDC | 12VDC |
Operating temp. | 0-85ºC |
Medium temp. | -20-85ºC |
Storage temp. | -40-125ºC |
Compensated temp. | 0m-10m H2O: 0-60ºC | 10m-200m H2O: -10-70ºC |
Zero temp. coefficient | ±1.5%F.S.max.(within compensated temp.) |
Span temp. coefficient | ±1.5%F.S.max.(within compensated temp.) |
Mechanical vibration | 20g(20 to 5000HZ) |
Shock | 100g(11ms) |
Insulation | 200MΩ/250VDC |
Response time | ≤1ms(up to 90%FS) |
Long term stability | ≤0.2%F.S.S/year |
Protection | IP68 |
Material | Low copper aluminum alloy for junction box, stainless steel for probe; Polyurethane wire for cable |
Medium compatibility | All kinds of media compatible with 316L stainless steel |
