  • Load Cell PCWL-L12

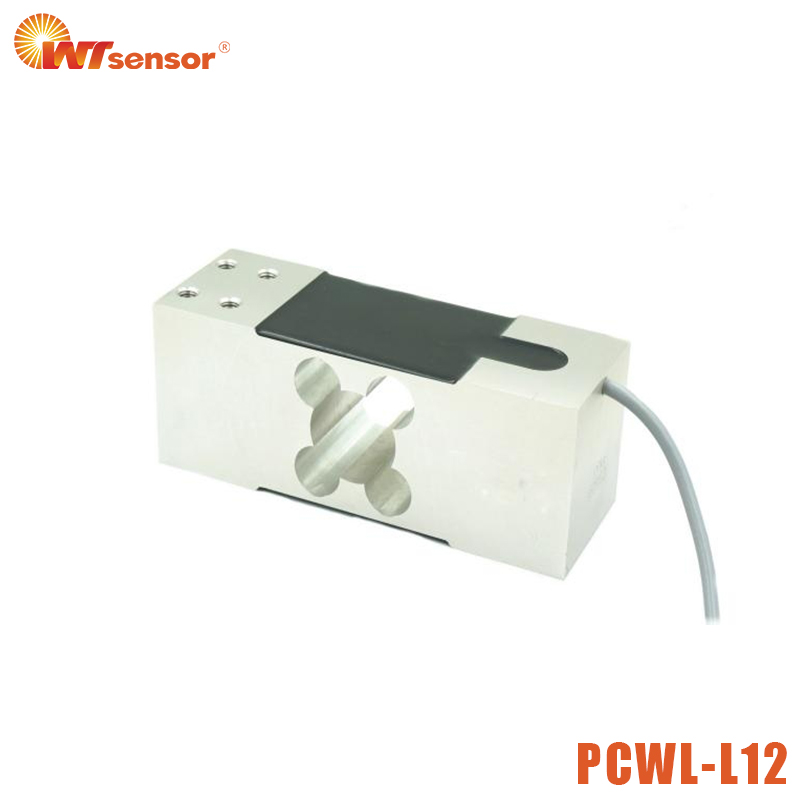

Load Cell PCWL-L12

Features

  • Aluminum alloy material

  • High precision and strong anti bias load ability

  • Easy to install, IP67



Applications

  • Suitable for electronic scales, counting scales, electronic scales, and industrial weighing systems


Product Parameters

Parameter performance

Technique

Capacity

50,100,150,200,250kg

300 ,500,600kg

Accuracy class

C3

Rated output

2.0±10%mV/V

Zero balance

±2%F.S.

Non-linearity

0.0166%F.S.

Hysteresis

0.0166%F.S.

Repeatability

0.02%F.S.

Creep(30min)

0.017%F.S.

Temp.effect on output

0.017%F.S./10℃

Temp.effect on zero

0.02%F.S./10℃

Input impedance

300~500Ω

Output impedance

300~500Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

5~15V

Maximum excitation

20V

Compensated temp range

-10~40℃

Operation temp range

-10~50℃

Safe overload

150%F.S.

Ultimate overload

300%F.S.

Cable size

Φ5.4×1500mm

Material

aluminum alloy

IP Class

IP67

Max.platform size

600mm×600mm
