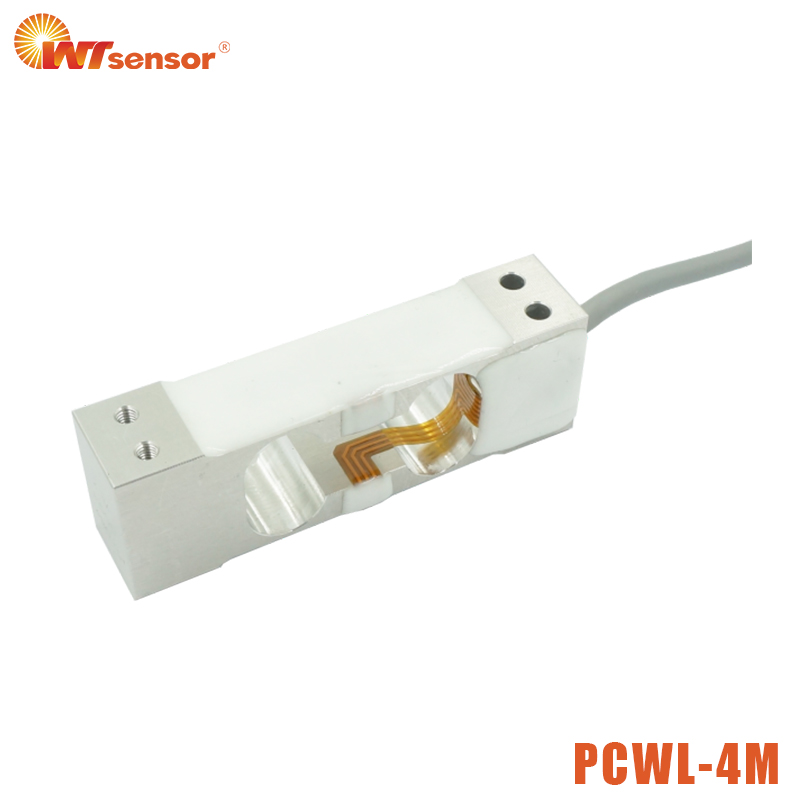

Load Cell PCWL-4M


Features

  • Aluminum alloy material

  • High precision and strong anti bias load ability

  • Easy to install, IP65


Application

  • Applied in electronic scales, counting scales, electronic scales, and industrial weighing systems


Product Parameters

Parameter performance

Specification

Capacity

300g,500g,1,1.5,2,3,4 kg

Accuracy class

C3

Output sensitivity

1.0±10%mV/V(300g,500g)

2.0±10%mV/V(1~5kg)

Zero point output

±2%F.S.

Non-linearity

0.015%F.S.

Hysteresis

0.015%F.S.

Repeatability

0.015%F.S.

Creepage(30min)

0.0166%F.S.

Temp. sensitivity drift

0.017%F.S./10℃

Zero temp. drift

0.02%F.S./10℃

Input impedance

380±40Ω

Output impedance

380±40Ω

Insulation

≥5000MΩ/100VDC

Recommended excitation

5~15V

Maximum excitation

20V

Compensated temp. range

-10~40℃

Operating temp. range

-25~70℃

Safe overload

150%F.S.

Ultimate overload

300%F.S.

Cable size

Φ4×400mm

Material

aluminum alloy

IP Class

IP65

Max.platform size

200mm×200mm

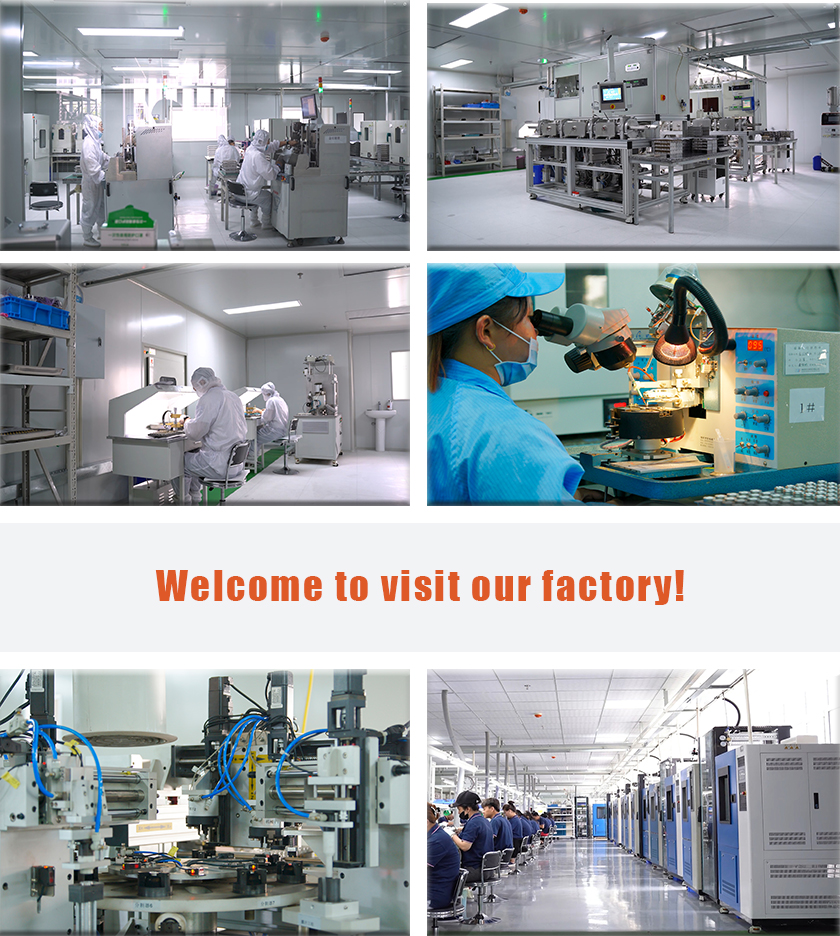

Production process
