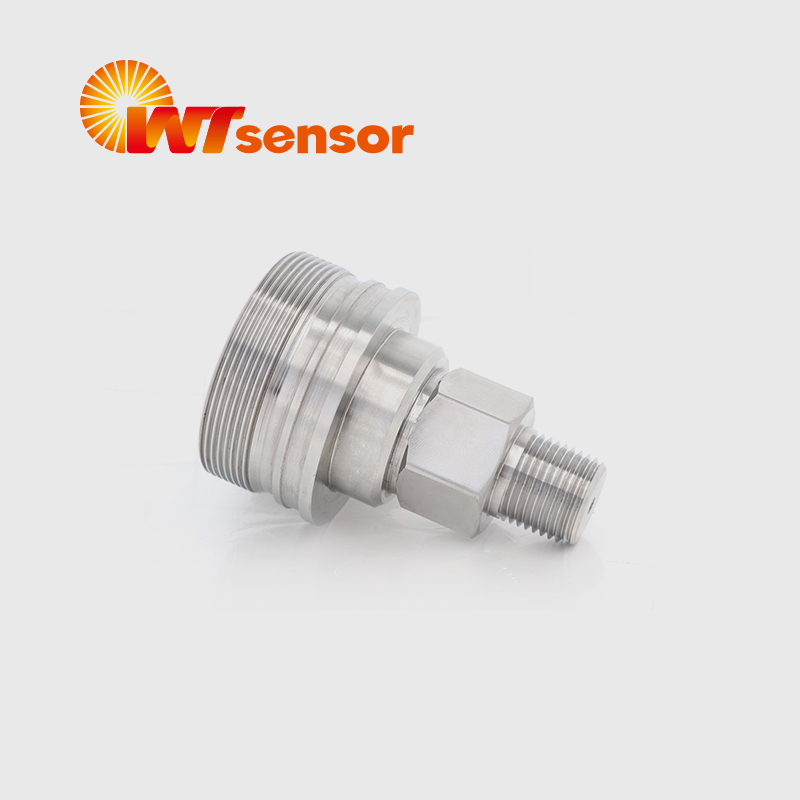

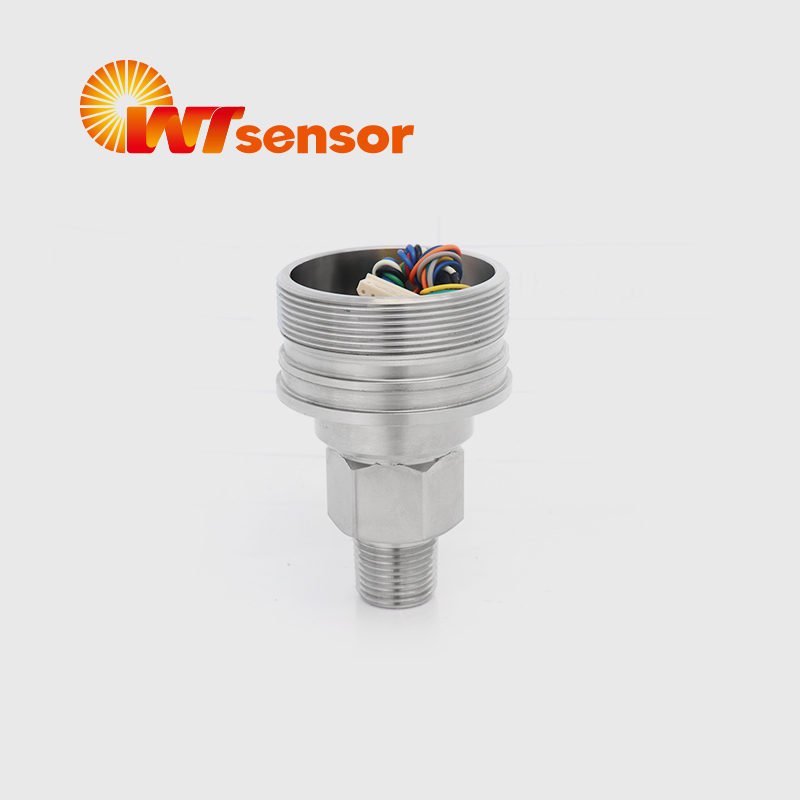

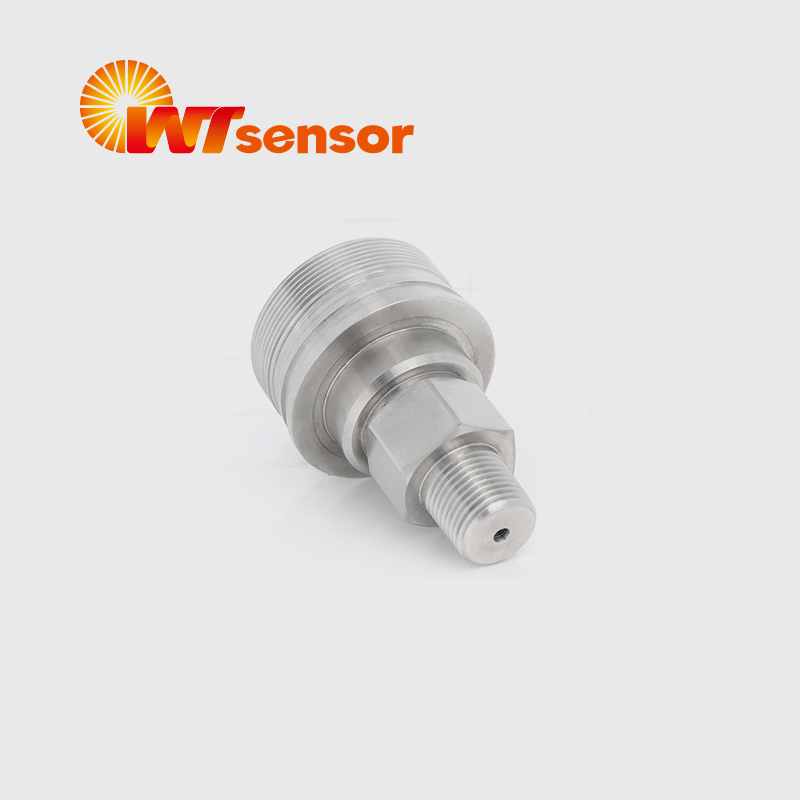

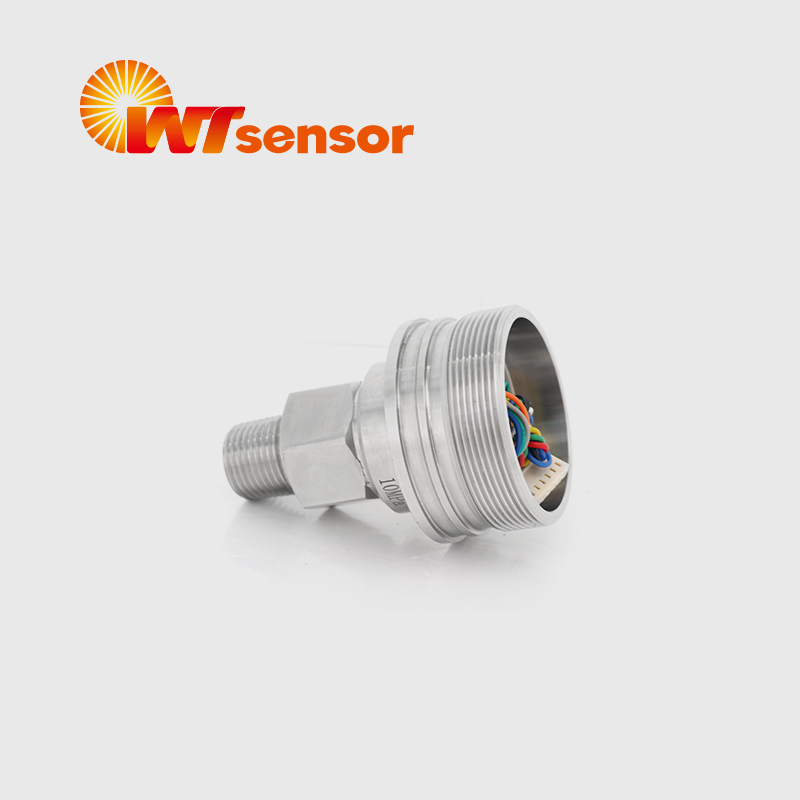

Monocrystalline Silicon Pressure Sensor PC91
Product overview
PC91 Monocrystalline Silicon Pressure Sensor adopts the imported MEMS monocrystalline silicon pressure die, achieves international leading overpressure performance and ensures the excellent stability of signal. It is assembled in all-welded seal structure and filled with silicon oil in high vacuum. Measuring diaphragm of different materials isolates measured medium and pressure die, meanwhile, the sensor performs long-term reliable measurement of differential pressure signals of various strong corrosive medium.
PC91 Monocrystalline Silicon Pressure Sensor allows measured pressure to act directly on the diaphragm of sensor. Then the diaphragm produces a microdisplacement proportional to the pressure, which can be detected with the integrated electronic circuit and be converted to output a standard measurement signal of the corresponding pressure.
Features
■ Imported MEMS monocrystalline silicon pressure die
■ With overload protection
■ 316L stainless steel all welded integrated structure
■ Gauge pressure type applicable to negative pressure measurement
■ Suitable for a variety of threads and shells
Applications and industries
■ Provide OEM for industrial transmitter manufacturers
Product Parameters
Performance parameters | |||
Power supply | Constant voltage | ||
Operating temp. | -40～85℃ | ||
Storage temp. | -50～125℃ | ||
Output voltage | 60～140mV | ||
Zero temp. coefficient | ±0.05%FS/℃ | ||
Temp. hysteresis | ±0.1%FS (Range≥10kPa) | ||
±0.5%FS (Range＜10kPa) | |||
Pressure hysteresis | ±0.05%FS | ||
Long-term drift | ±0.05%FS/Year | ||
Nonlinearity | ±0.5%FS (Range≥10kPa) | ||
±1.5%FS (Range＜10kPa) | |||
Max. overpressure | Refer to “Pressure range selection” | ||
Diaphragm material | Stainless steel 316L, Hastelloy C | ||
Outline dimension | |||
Rear thread code | Dimensional drawing In: mm |
H11:55-16 British thread |
|
H10:M56×1.5-6g |
|
H9:M45×1.5-6g |
|
H2:M27×2 |
|
Pressure connection | |||||
Thread code | C1: M20×1.5-6g | C2: G1/2 | |||
Dimension In mm |
|
| |||
Recommended torque | 15～25Nm | 15～25Nm | |||

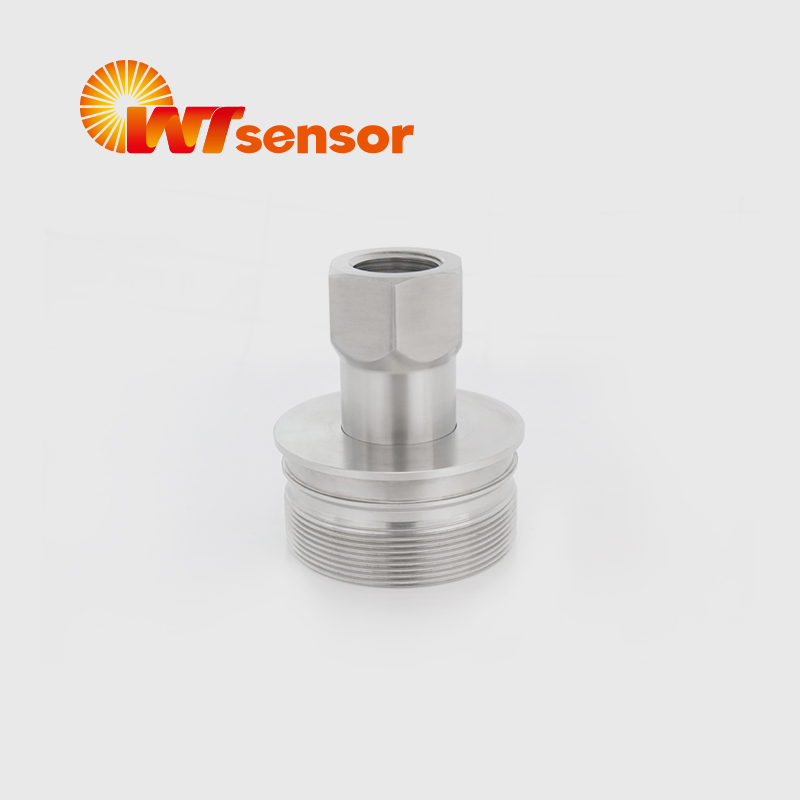

Thread code | C7: NPT1/2 | C7F: NPT1/2 (Female) | |||
Dimension In mm |
|
| |||
Recommended torque | 15～25Nm | 15～25Nm | |||
Electrical connection | |||||

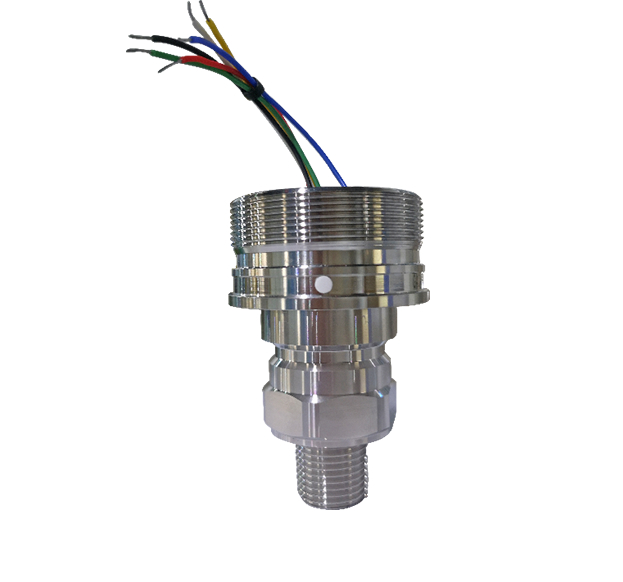

Electrical schematic diagram 1* | Wire color | Wire connection | |||
| Red Blue Yellow White Green Black | Excitation+ (IN+) Temperature (T) or Temperature+ (Diode+) | |||
