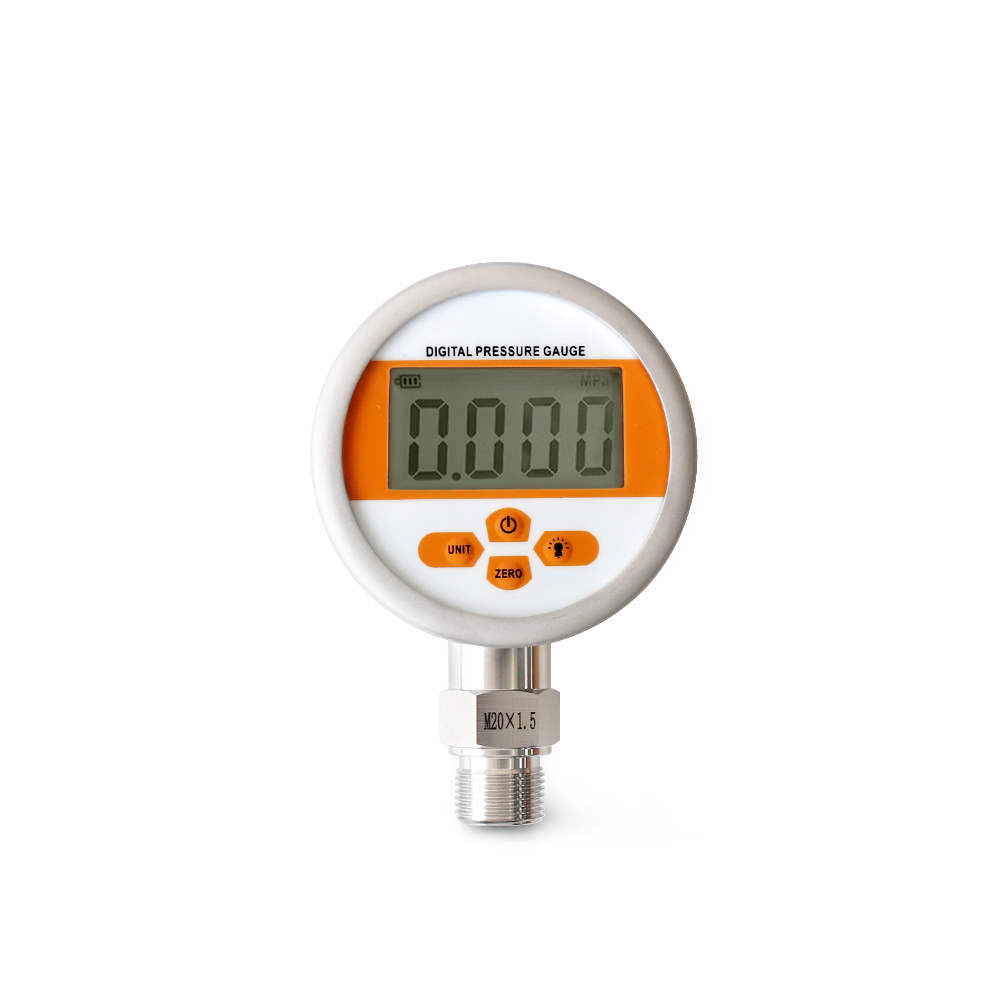

Pressure Gauge PCM580

Overview

PCM580 is a high-precision intelligent digital pressure gauge. It has a high-precision sensor and displays pressure accurately in real time. It has advantages of high precision and good long term stability.

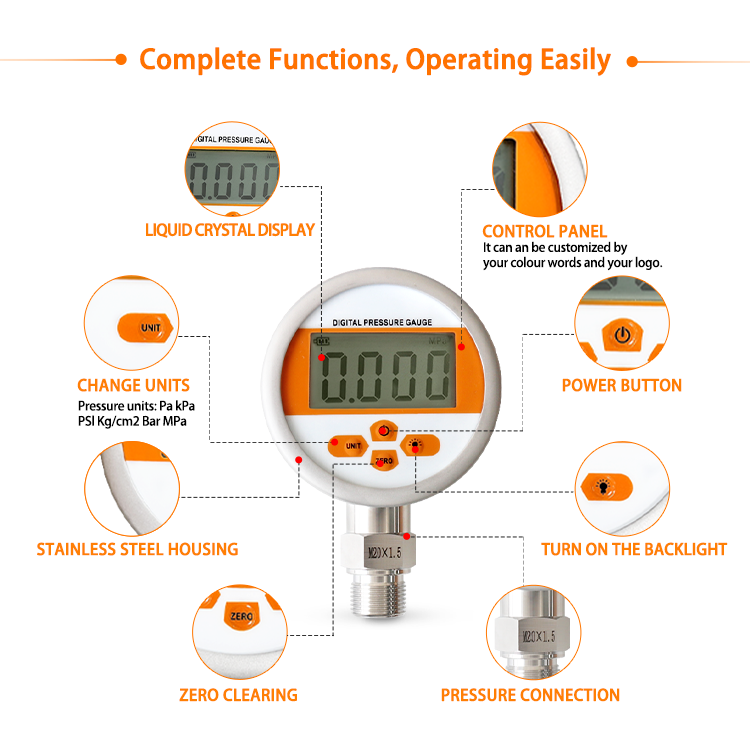

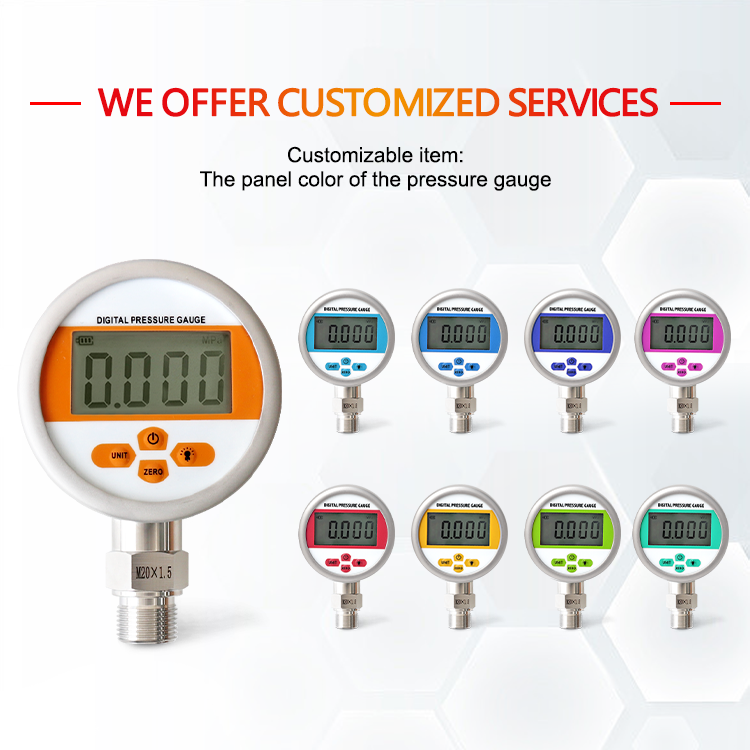

PCM580 is equipped with a large size LCD, featuring with functions of zero clearing, backlight, on/off button, units switching and low pressure alarm. It is convenient to install and easy to operate.

The housing and connector of PCM580 are made of stainless steel 304 with excellent vibration resistance. It can be used to measure gas, liquid, oil and other non-corrosive medium of stainless steel.


Features

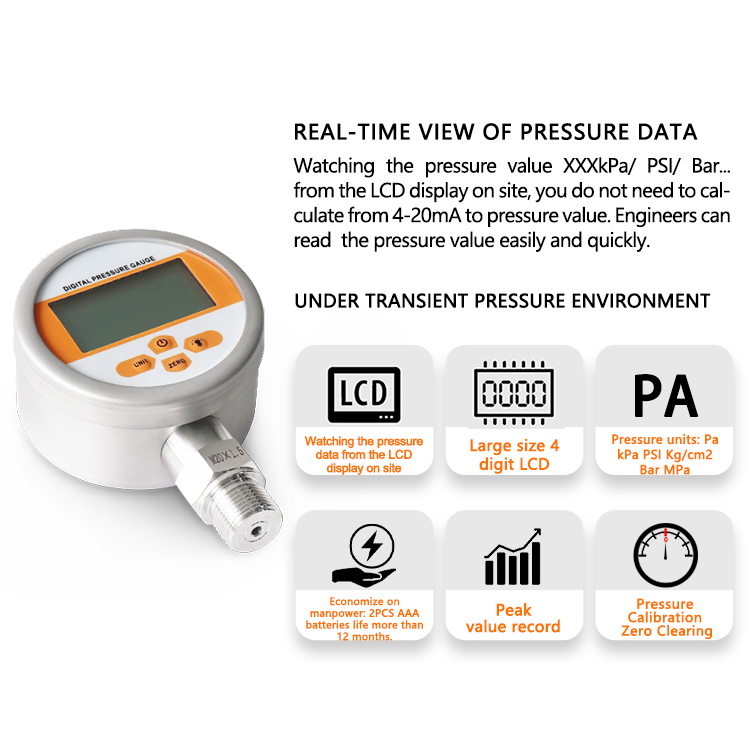

■ 4 digits LCD showing pressure accurately in real time, easy for observation

■ Various pressure units, zero clearing, backlight, on/off functions

■ Battery powered, low-power design, keeping working for 12 months

■ High-precision pressure sensor adopted

Application

■ Machinery and electronics

■ Supporting equipment of instruments

■ Pressure laboratory

■ Mechanical engineering automation

Product Parameters

Performance parameters

Pressure range

Negative pressure/composite pressure: -0.1~ 0... 0.1... 1.6MPa

Micro pressure: 0~10... 40... 60KPa

Conventional: 0~0.1... 1~6MPa

High pressure: 0~10... 25... 60MPa

Ultra high pressure: 0~100MPa

Dial diameter

80mm

Accuracy

0.4%FS   0.2%(Partial range)

Backlight color

White

Operating temp.

-10~60℃ ( -20~150℃ can be customized )

Electric protection

Anti electromagnetic interference design

Overpressure

150%FS (>10MPa)   200% (≤10Mpa)

Long term stability

Better than ±0.2%FS/year

Supply battery

3V (2 Triple AAA batteries)

Material

Shell & pressure connection: 304 stainless steel   Diaphragm:SS316L

Medium compatibility

Various media compatible with 304 & 316Lstainless steel

Pressure unit

MPa、KPa、cmH₂O、kgf、bar、mH₂O、PSI、mmHg、torr、mbar ……

Pressure Connection

M20 * 1.5 and others can be customized

Product Function

Power on/off, zero clearing, unit switching, peak value recording, backlight

Protection Grade

IP50  (Protection Grade of PCM580 with protective cover is IP54)

Structure & dimensions

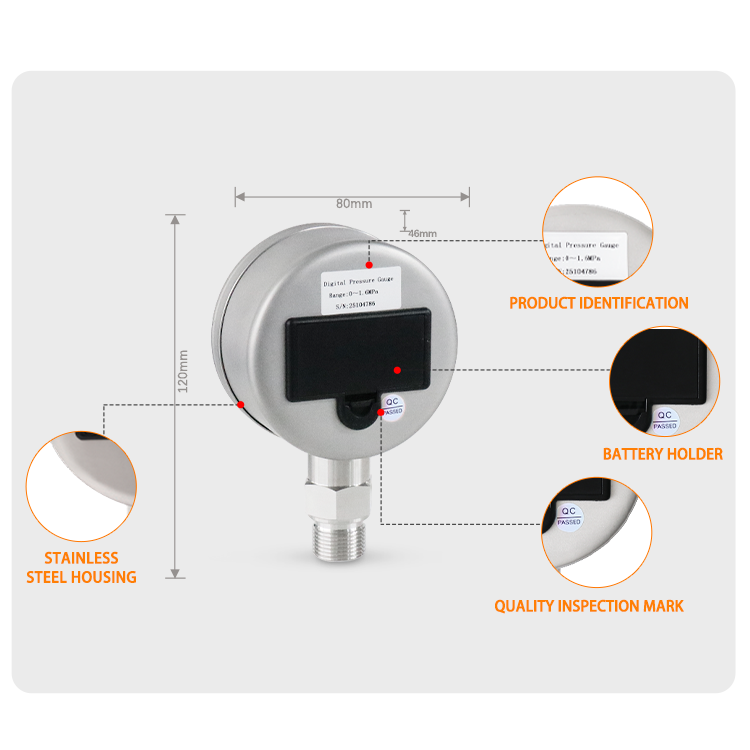

Dimension

In mm


















Production process


Digital Pressure Gauge Φ80mm PCM580


                                                         Testing Equipment


Φ80mm Digital Pressure Gauge PCM580Φ80mm Digital Pressure Gauge PCM580

Φ80mm Digital Pressure Gauge PCM580Φ80mm Digital Pressure Gauge PCM580

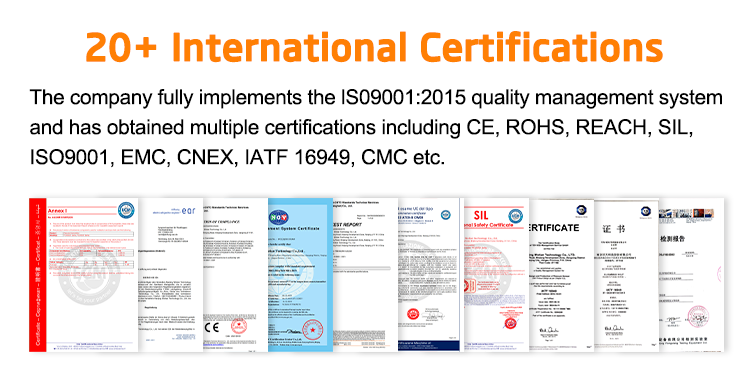

Certificate
