PCM91B Monocrystalline silicon pressure sensor with the Hart and display

Product overview

The PCM91B monocrystalline silicon single pressure sensor component uses the German-imported MEMS monocrystalline silicon pressure sensor die. The sensor signal is converted to a standard signal through special signal processing. It features stable and reliable performance, has passed long-term aging and stability testing and can be used in harsh outdoor environments. It also ensures the on-site pressure display, with zero and span transferable.

The connection interface of PCM91B can be compatible with other brands’ transmitters or can be customized to meet users’ requirements. The products of this series are widely applied to industrial process control, petroleum, chemical, metallurgy, and other industries.

Features

■ Adopting advanced monocrystalline silicon single pressure sensor

■ Wide range coverage of 0~6kPa... 40MPa

■ Two-wire system, 4~20mA output with HART® protocol

■ Intelligent LCD gauge head with backlight

■ Supports both remote and local zero/span adjustment

■ Complete variety, high precision, and good stability

Applications and industries

■ Process control fields for industries such as petroleum, chemical, metallurgy, power generation, food & beverage, paper-making, pharmaceuticals, machinery manufacturing, scientific research, and aerospace

Product Parameters

Performance parameter

Pressure range0~6kPa... 40MPa
Pressure referenceGauge pressure, absolute pressure
Power supply12V~32VDC, recommend 24VDC
Output signal4~20mA + HART® protocol
Accuracy±0.075%F.S. (Standard ranges)
Temp. drift±6kPa: ±0.3%F.S.; other ranges: ±0.25%F.S. (-20~70ºC)
Ambient temp.-30ºC~70ºC (Working temp. range of LCD gauge head)
Medium temp.-40ºC~125ºC
Storage temp.-30ºC~70ºC
Overload pressure(Refer to range selection on page 4.)
Long-term stability±0.2%F.S./year
Diaphragm materialIsolated diaphragm 316L, Ha C (≤10MPa)
Media compatibilityVarious medium compatible with SS316L and fluororubber

Production process

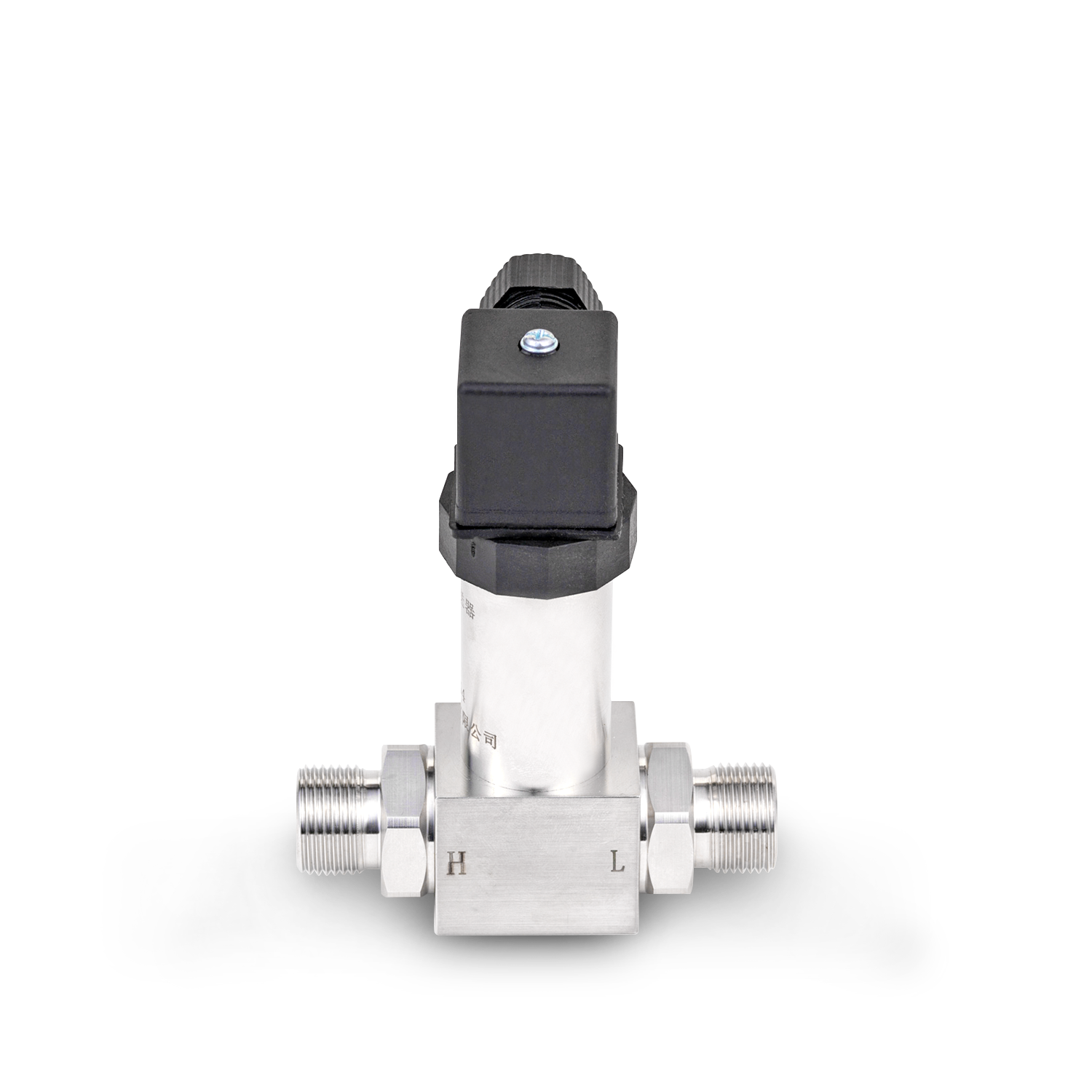

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor


                                                         Testing Equipment


Monocrystalline Silicon  Differential Pressure Sensor PC90DMonocrystalline Silicon  Differential Pressure Sensor PC90D

Monocrystalline Silicon  Differential Pressure Sensor PC90DMonocrystalline Silicon  Differential Pressure Sensor PC90D

Certificate

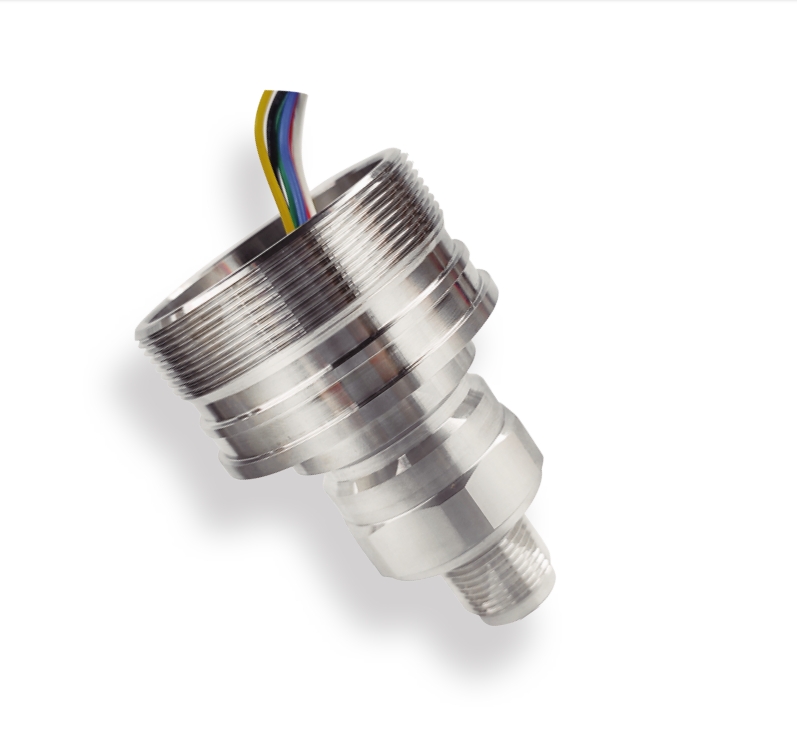

PC90M Monocrystalline Silicon  Differential Pressure Sensor
