You are here: WT Home > Products > Pressure Sensor

  • Φ19×14mm12c output Industrial Pressure Sensor PCM10
  • Φ19×14mm12c output Industrial Pressure Sensor PCM10
  • Φ19×14mm12c output Industrial Pressure Sensor PCM10

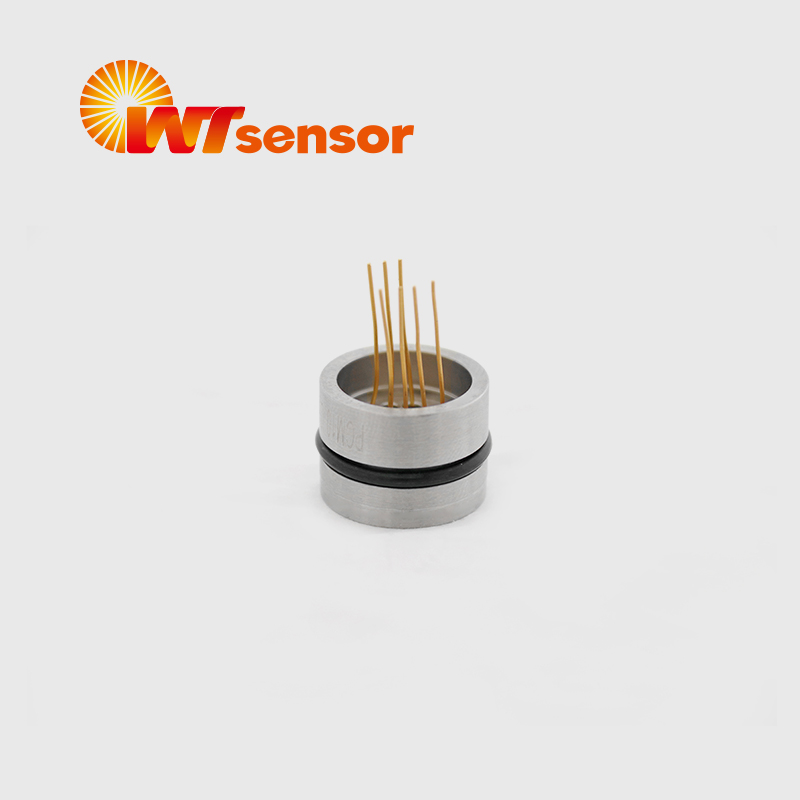

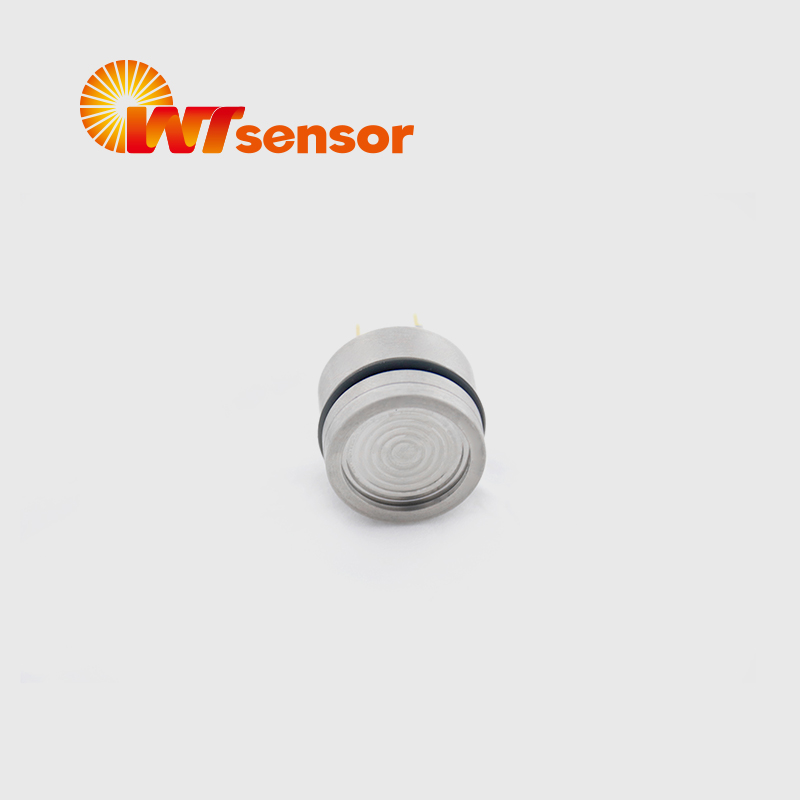

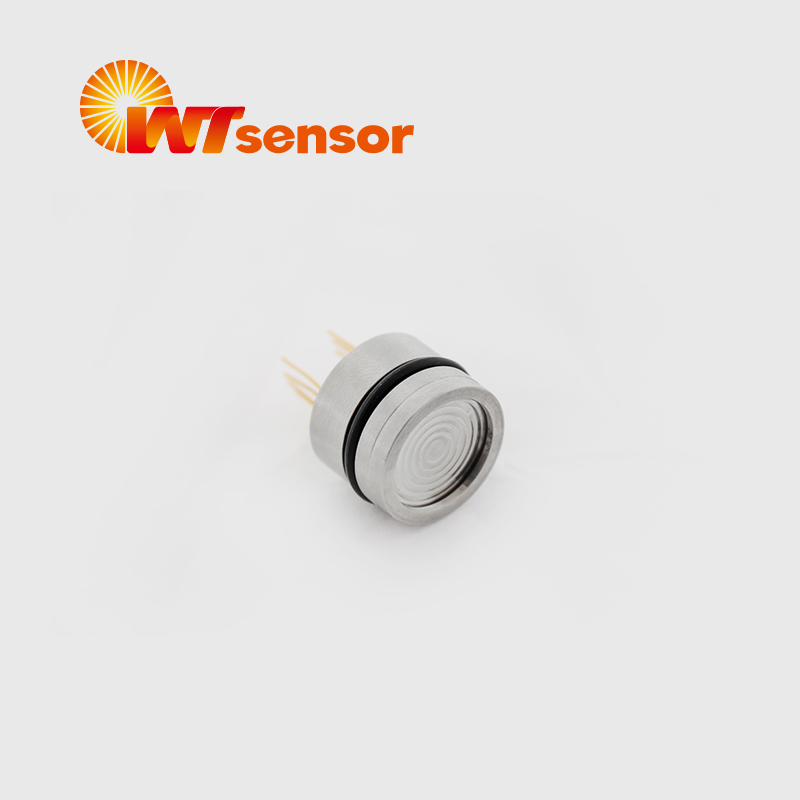

Φ19×14mm12c output Industrial Pressure Sensor PCM10

Features

Amplified output (ASIC inside)

1²C and 12c output

0.5 to 4.5V

CE certificate


I2C pressure sensor,wotian pressure sensor,PCM10 pressure sensor,factory pressure sensor

We are the manufacturer that produce PCM10 intelligent pressure sensor with I2C digital output and high accuracy.

Product Parameters

Pressure range

Pressure range

35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,   1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa (bar and psi unit   available)

Pressure reference

Gauge pressure | Absolute pressure | Sealed   gauge pressure

Overpressure

300%F.S.(70Kpa) | 200%F.S.(25Mpa)   | 150%F.S(25Mpa)

Output signal

Output

0.5 to 4.5V ratio metric (5V excitation)

I²C (3.3V excitation)

Specification

Accuracy (linearity,   repeatability and hysteresis)

±0.5%F.S. (Typical)

Excitation

5VDC   | 3.3VDC

Compensated temp.

0-60 (≤35kPa) | -10-70 (Other ranges)

Operating temp.

-40-125

Storage temp.

-40-125

Zero temp. coefficient

0.02%F.S./ (≥100kPa)   | 0.04%F.S.   / (<100kPa)

Span temp. coefficient

0.02%F.S. / (≥100kPa) | 0.04%F.S. / (<100kPa)

Insulation resistance

200Mohm/250VDC

Bridge resistance

Min.

Max.

Unit

2600

5500

ohm

Long term stability

≤0.2%F.S.S/year

Vibration

20g (20-5000Hz)

Oil filling

Silicon oil (Typical)

O-ring

NBR, Viton

Housing and   diaphragm

Stainless steel 316L

Wire connection

4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200 bearing

Weight

40g(approx)

Protection

IP65


Production process

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor

PC90D Monocrystalline Silicon  Differential Pressure SensorPC90D Monocrystalline Silicon  Differential Pressure Sensor


Certificate

PCM10 Industrial Pressure Sensor

Company profile

PCM580 Digital Pressure Gauge (Φ80mm)

Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors.  Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.


Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
