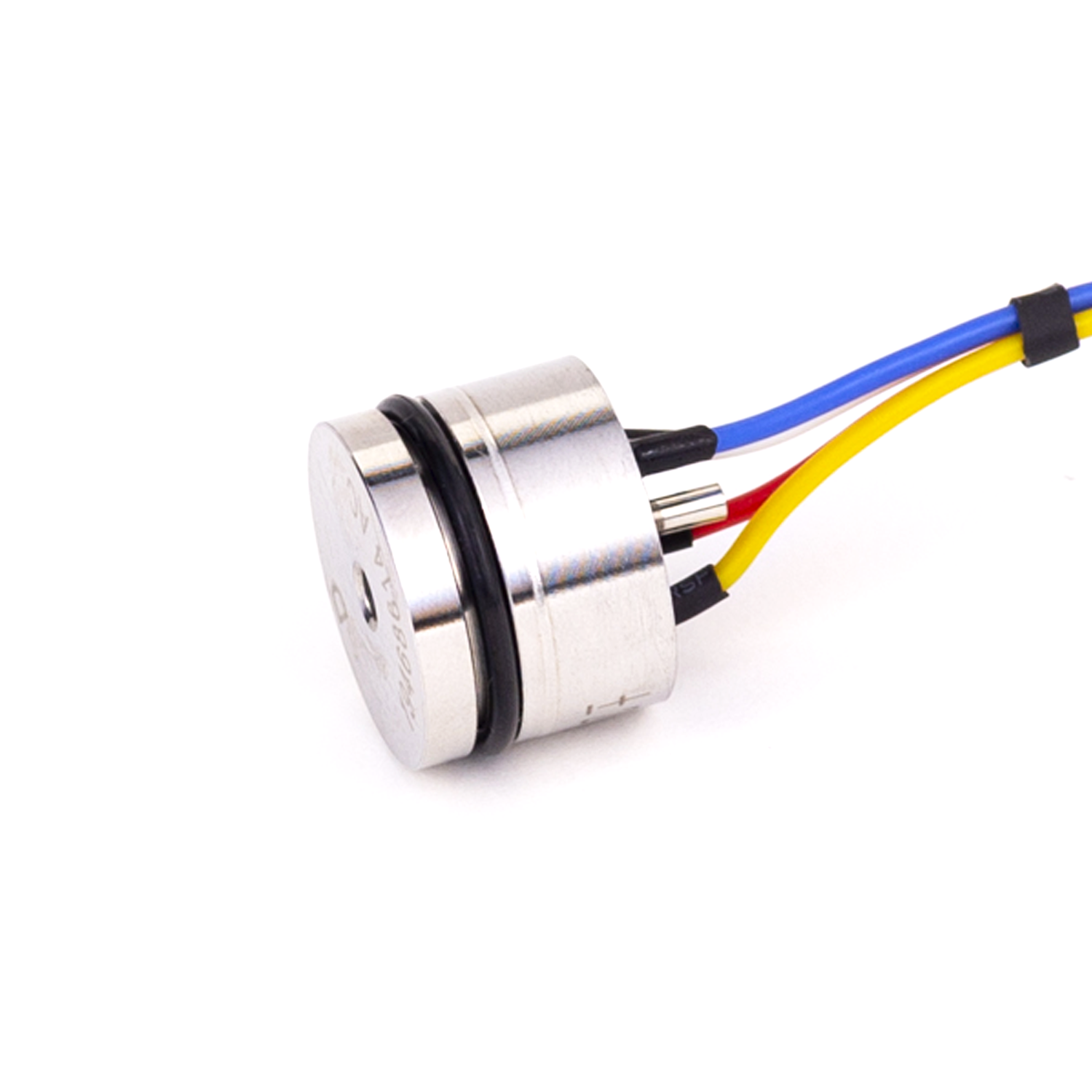

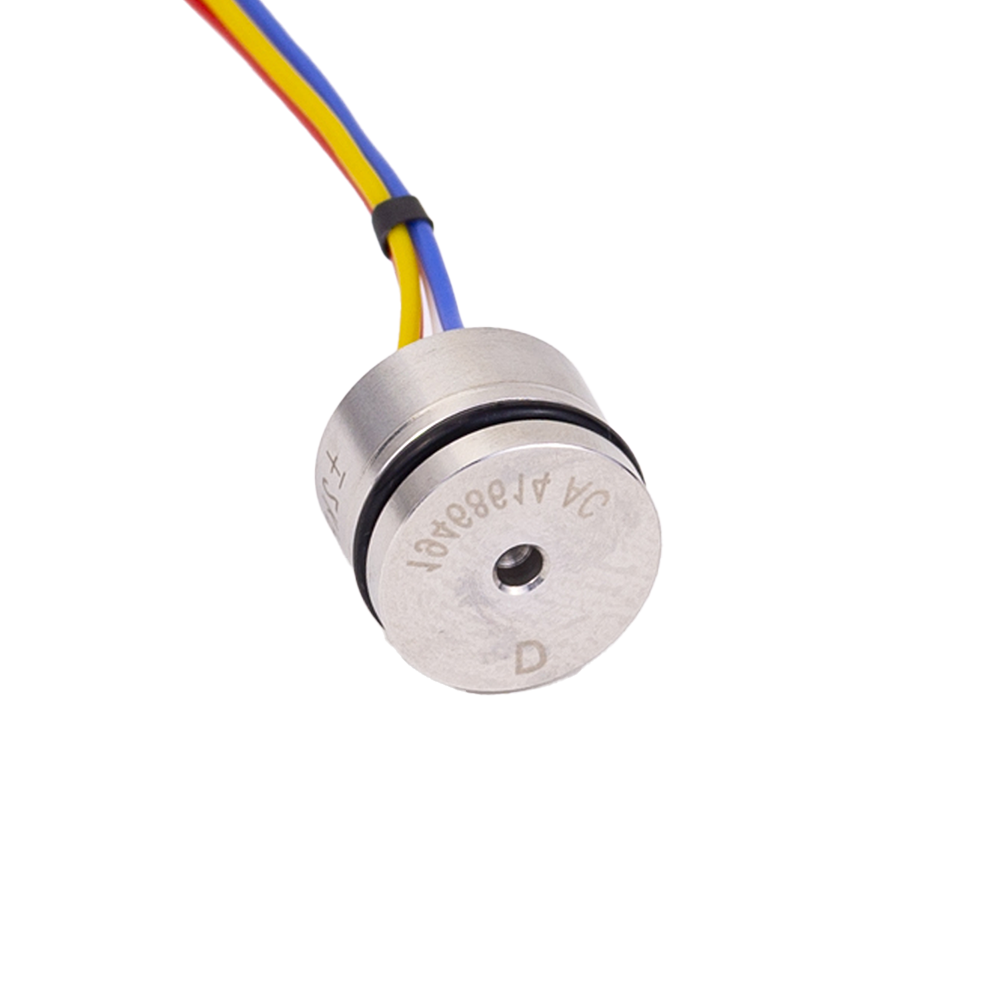

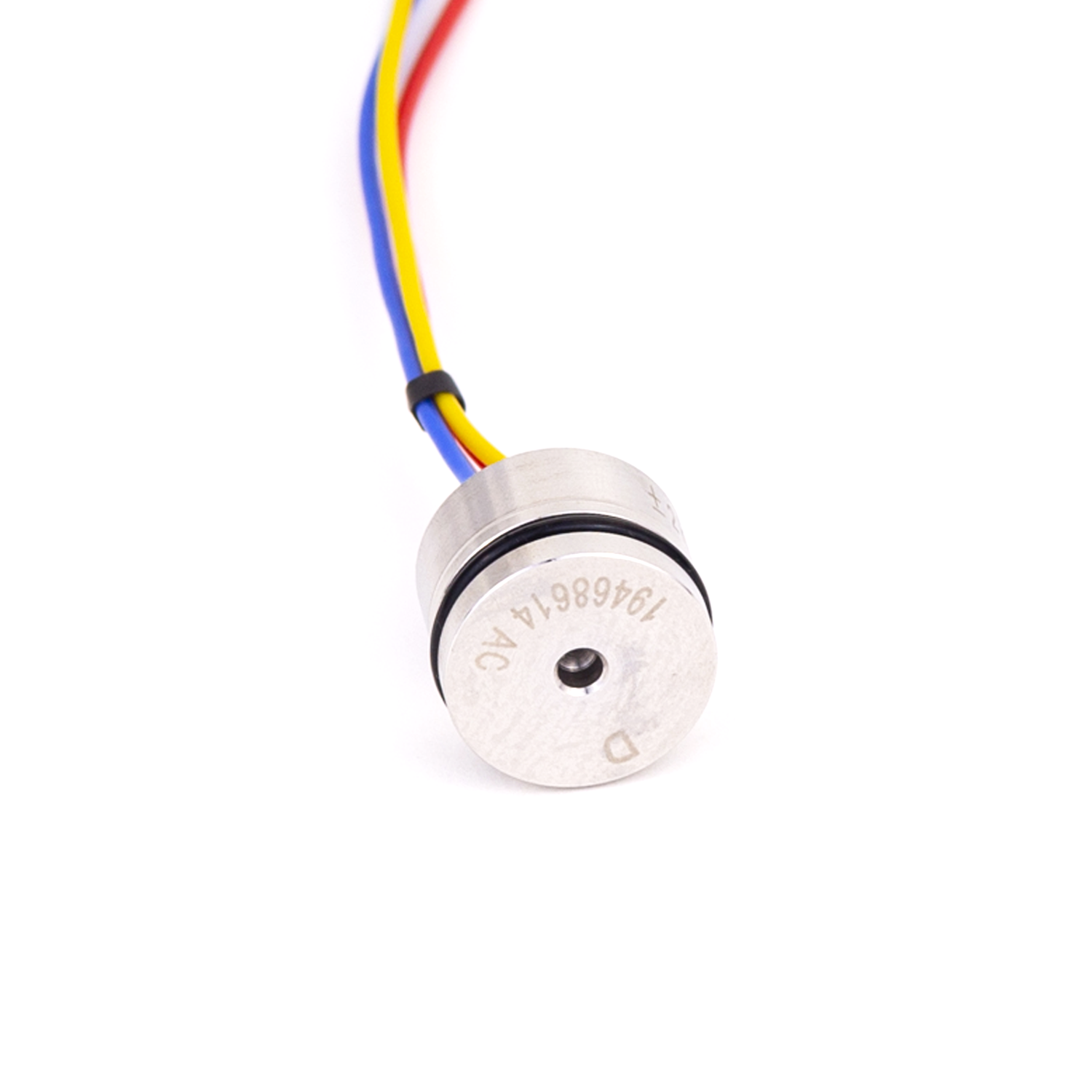

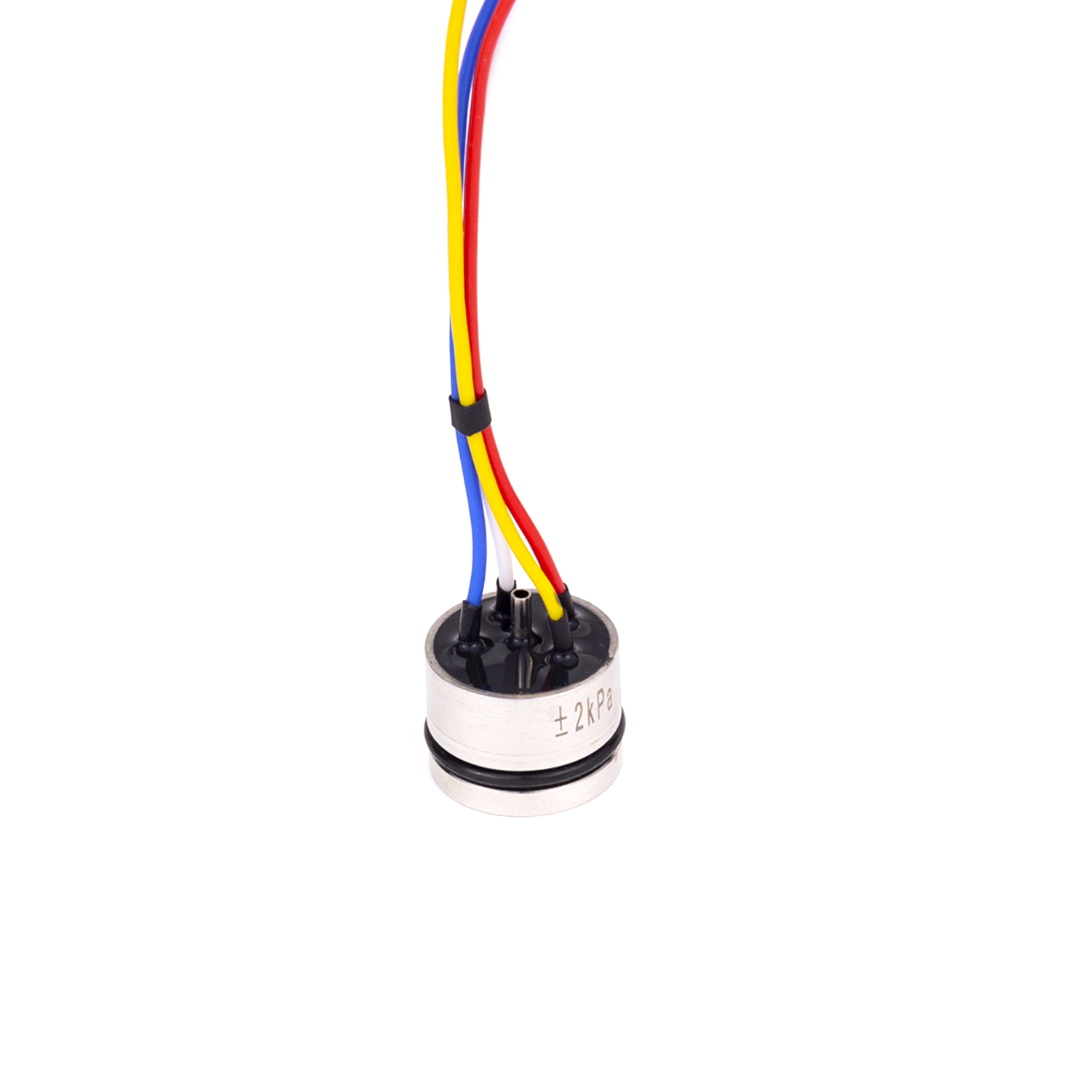

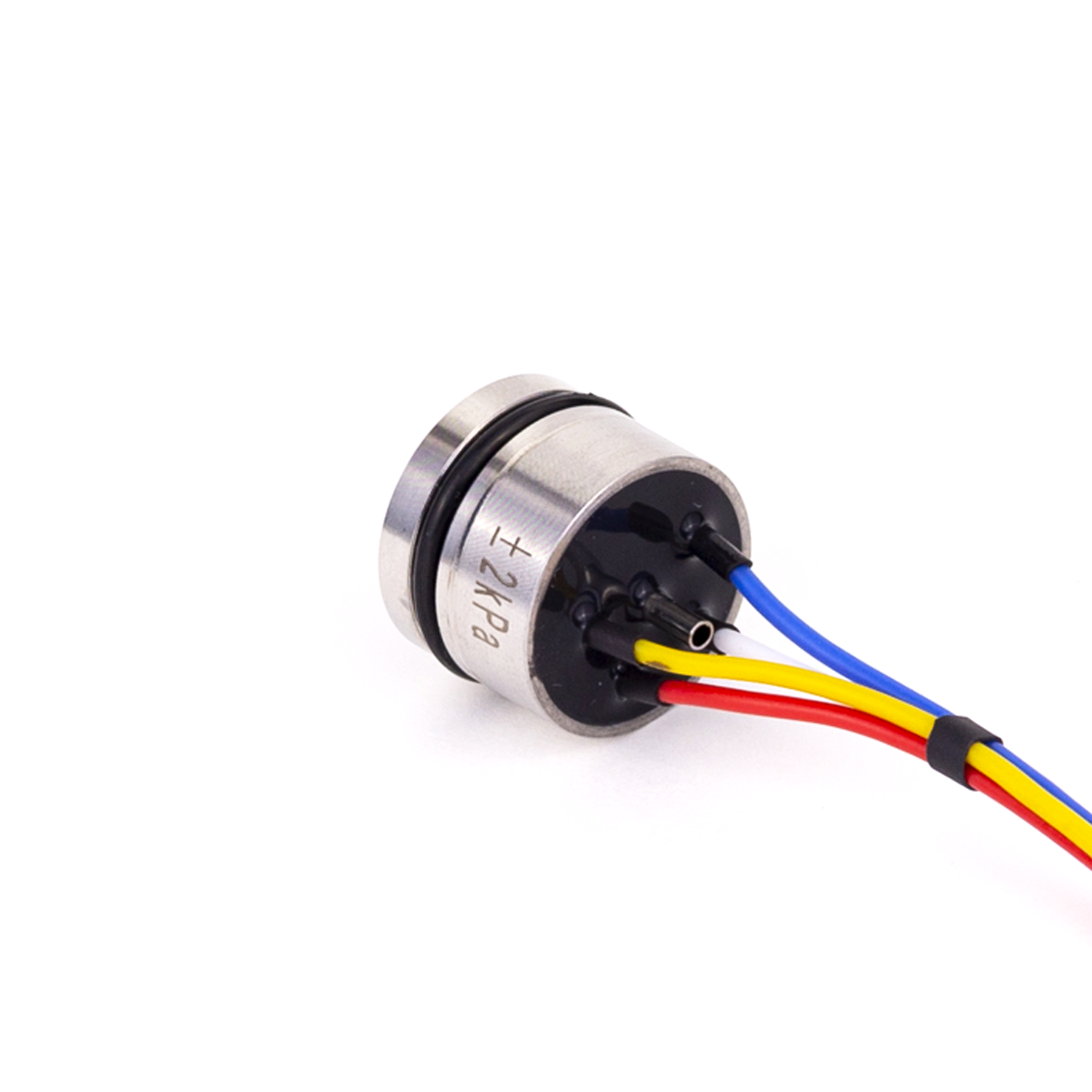

X19(WTG19) Industrial Pressure Sensor

Features

 Piezoresistive silicon chip employed

Perfect long term stability

MEMS technology

 Cost effective





X19(WTG19) industrial pressure sensor,China pressure sensor,wotian pressure sensor,air pressure sensor

We are the Chinese manufacturer that produce the low pressure sensor with good quality for air application.

Product Parameters


Pressure range

Pressure range

250Pa, 1kPa, 2kPa, 4kPa, 6kPa, 8kPa, 10kPa (bar   and psi unit available)

Pressure reference

Gauge pressure

Overpressure

300%F.S.

Output signal

Zero output

±2mV

Span output

30mV(typical)

Specification

Accuracy (linearity,   repeatability and hysteresis)

±0.25%F.S. (Typical)

Excitation

1.5mA (Typical)

Compensated temp.

0-50

Operating temp.

-20-85

Storage temp.

-40-125

Zero temp. coefficient

1.5%F.S.(500Pa, 2kPa, 5kPa, 10kPa) | 2%F.S.   (250Pa, 20kPa, 35kPa, 70kPa, 100kPa) | 2.5%F.S. (1kPa, 7kPa)

Span temp. coefficient

2%F.S.

Insulation resistance

100Mohm/250VDC

Input impedance

2kΩ5kΩ

Long term stability

≤0.2%F.S.S. /year

Vibration

20g   (20-5000Hz)

Oil filling

Without oil filling

O-ring

NBR, Fluorin

Housing and   diaphragm

Stainless steel 316L

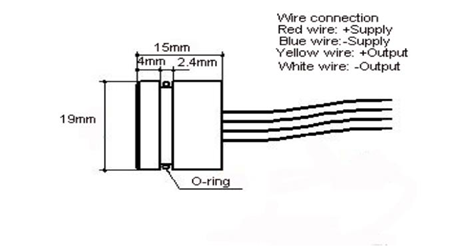

Wire connection

4 wire (typical) | 5 wire (available)    39×φ0.015, Silicon shielded, 200   bearing

Weight

25g(approx)
