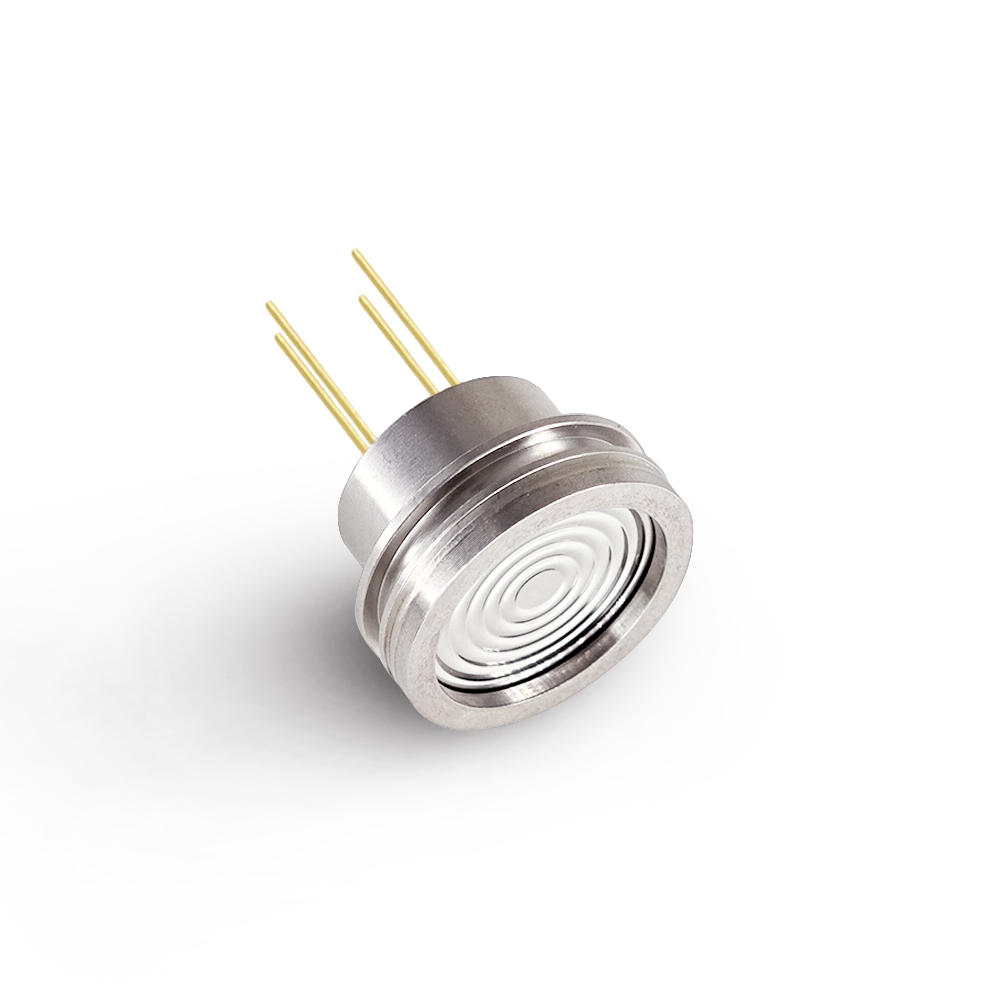

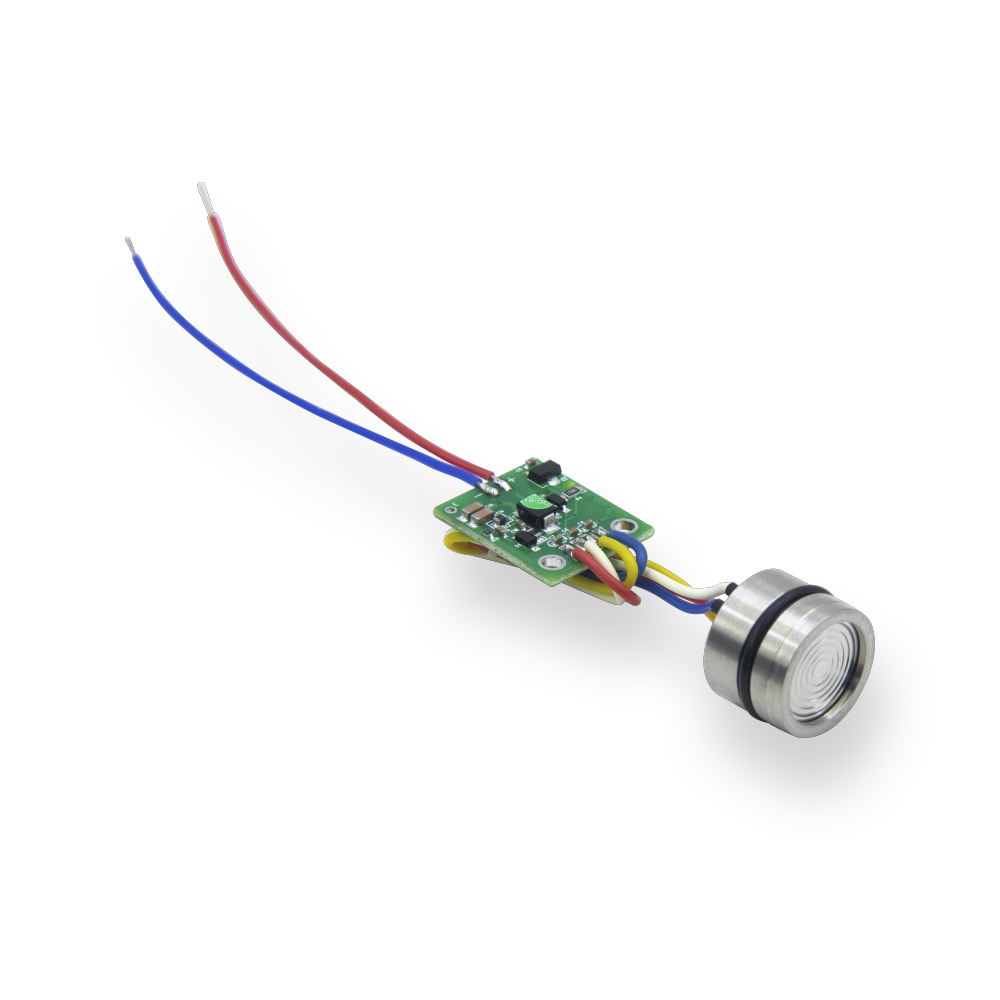

PC13-II Industrial Pressure Sensor

Features

With constant current and constant voltage excitation options

Imported highly reliable pressure die

Wide temperature compensation

Normalized output available

Compensation board filled with glue for protection against moisture

All 316L material

High performance, all solid, high reliability

18 months warranty period

Applications

 ■ Process control systems

 ■ Refrigeration equipment and HVAC control

 ■ Hydraulic systems and valves

 ■ Level measurement

 ■ Biomedical instruments

 ■ Ships and navigation

 ■ Aircraft and avionics systems



Product Parameters

Product overview

PC13 piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters. As high-performance pressure sensitive component,

PC13 can be easily amplified and assembled into the pressure transmitters with standard signal output.

PC13 packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.

Electrical performance parameters

Pressure range

6MPa…60MPa


Pressure reference

Sealed gauge pressure


Excitation

1.5mA recommended for constant current

10V recommended for constant voltage


Input impedance

Constant current: 2kΩ5kΩ

Constant voltage: 3kΩ18kΩ


Electrical connection

Gold-plated KOVAR pin or silicon soft wire


Compensation temp.

Constant current: -1070


Operating temp.

-40125


Storage temp.

-40125


Insulation resistance

≥200MΩ/250VDC


Response time

≤1ms (up to 90%FS)


Measured medium

All the liquids and gases compatible with 316L.


Mechanical vibration

20g (205000Hz)


Shock

100g (10ms)


Service life

10×106 (cycles)


Structural performance parameters

Diaphragm material

316L


Housing material

316L


Oil filling

Silicon oil


Sealing ring

Fluorine rubber




Basic parameters

Item

Condition

Min

Nominal

Max

Unit

Note


Nonlinearity


-0.3

±0.2

0.3

%FS

Note


Hysteresis


-0.05

±0.03

0.05

%FS



Repeatability


-0.05

±0.03

0.05

%FS



Zero output


-2

±1

2

mV



Full scale span output

1.5mA

10V

60

80

90

100

150

120

mV



Zero temp. coefficient


-1.5

±0.75

1.5

%FS

Note(1)


Sensitivity temp. coefficient


-1.5

±1.0

1.5

%FS

Note


Thermal hysteresis


-0.075

±0.05

0.075

%FS

Note


Long term stability


-0.3

±0.2

0.3

%FS/Year



Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range, refer to 30 for -10 ~ 70

(3) After passing high and low temperature, return to the reference temperature.



Structure and dimensions

In mm

1. PC13I                                 2. PC13 II

Sealed gauge pressure



Sealed gauge pressure



 PC13-II  Industrial Pressure Sensor

PC13-II  Industrial Pressure Sensor





Electrical connection (in mm)

1. PC13I 5pins (5p) with constant-current excitation

Please confirm with the technician for the details of constant-voltage excitation.




Pin           Definition

3        Excitation +(IN+)

1 or 5    Excitation -(IN-)

2        Output +(OUT+)

4        Output -(OUT-)






Electrical connection (in mm) (cont.)

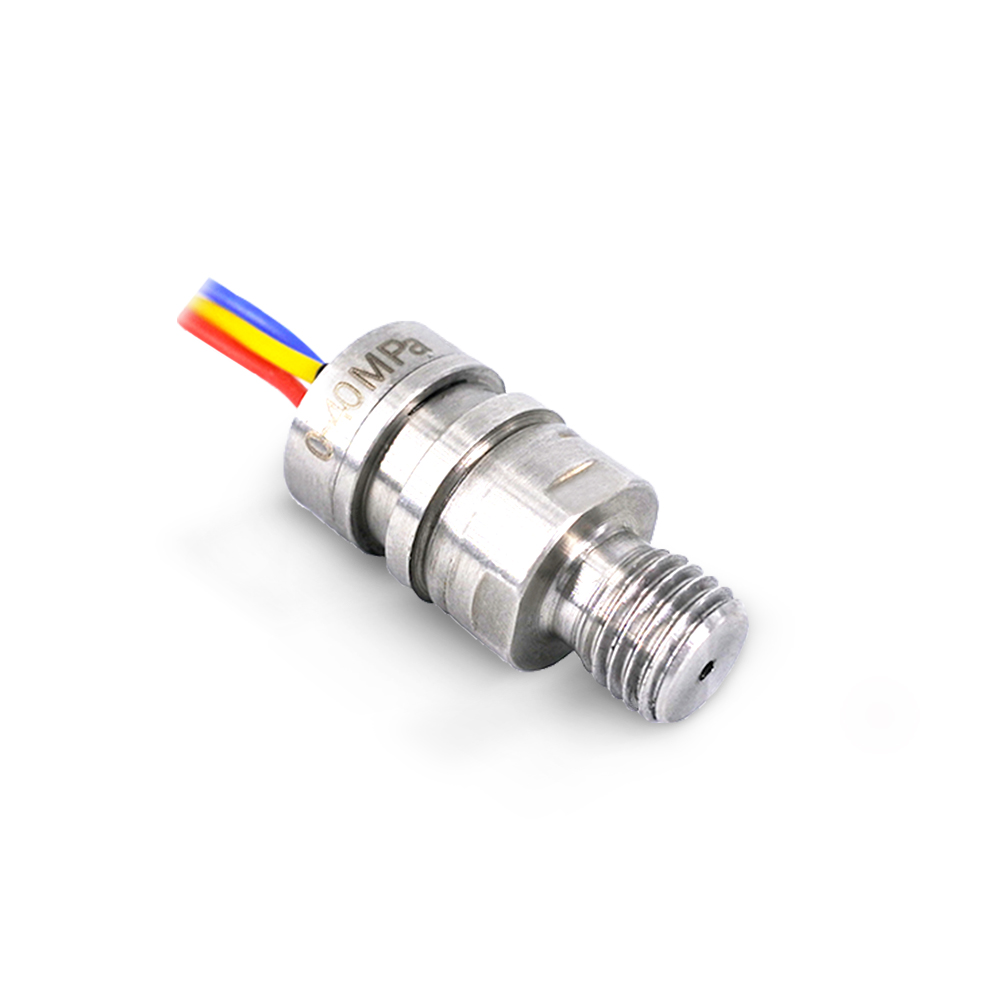

2. PC13I 4wires (4w)




Wire color      Definition

Red         Excitation+(IN+)

Blue     Excitation-(IN-)

Yellow     Output+(OUT+)

White     Output-(OUT-)

3. PC13II 5pins (5p) with constant-current excitation

Please confirm with the technician for the details of constant-voltage excitation.




Pin         Definition

3        Excitation+(IN+)

1 or 5    Excitation-(IN-)

2        Output+(OUT+)

4        Output-(OUT-)



4.  PC13II 4wires (4w)


Pin          Definition

Red        Excitation+(IN+)

Blue    Excitation-(IN-)

Yellow    Output+(OUT+)

White    Output- (OUT-)
