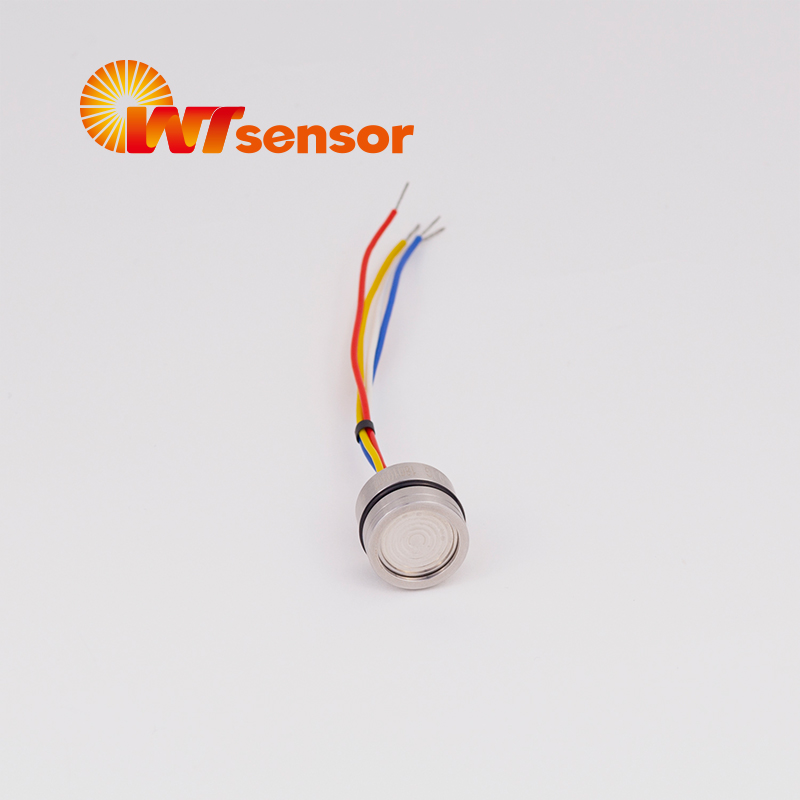

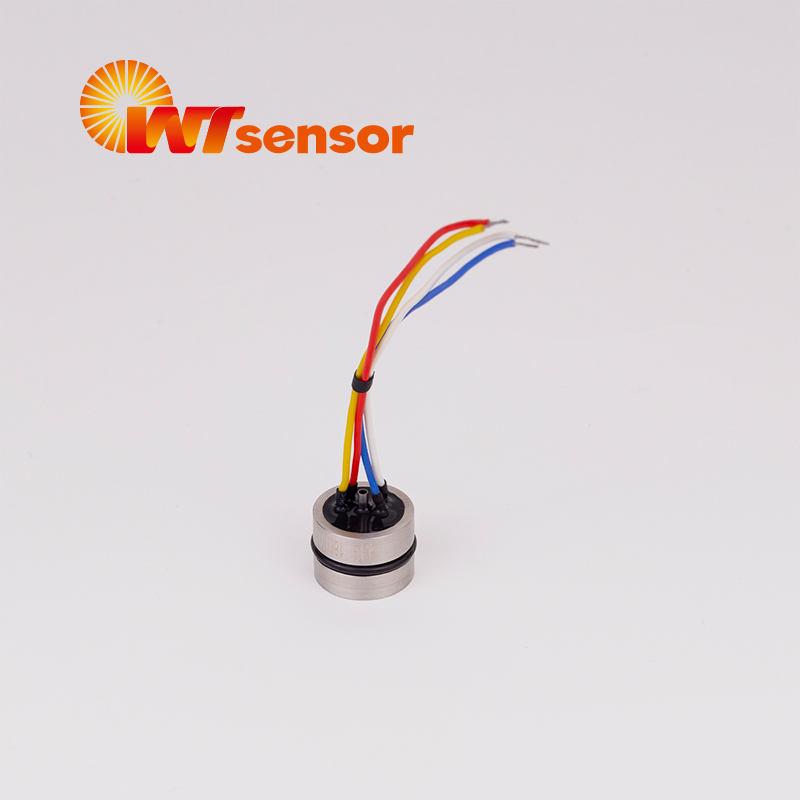

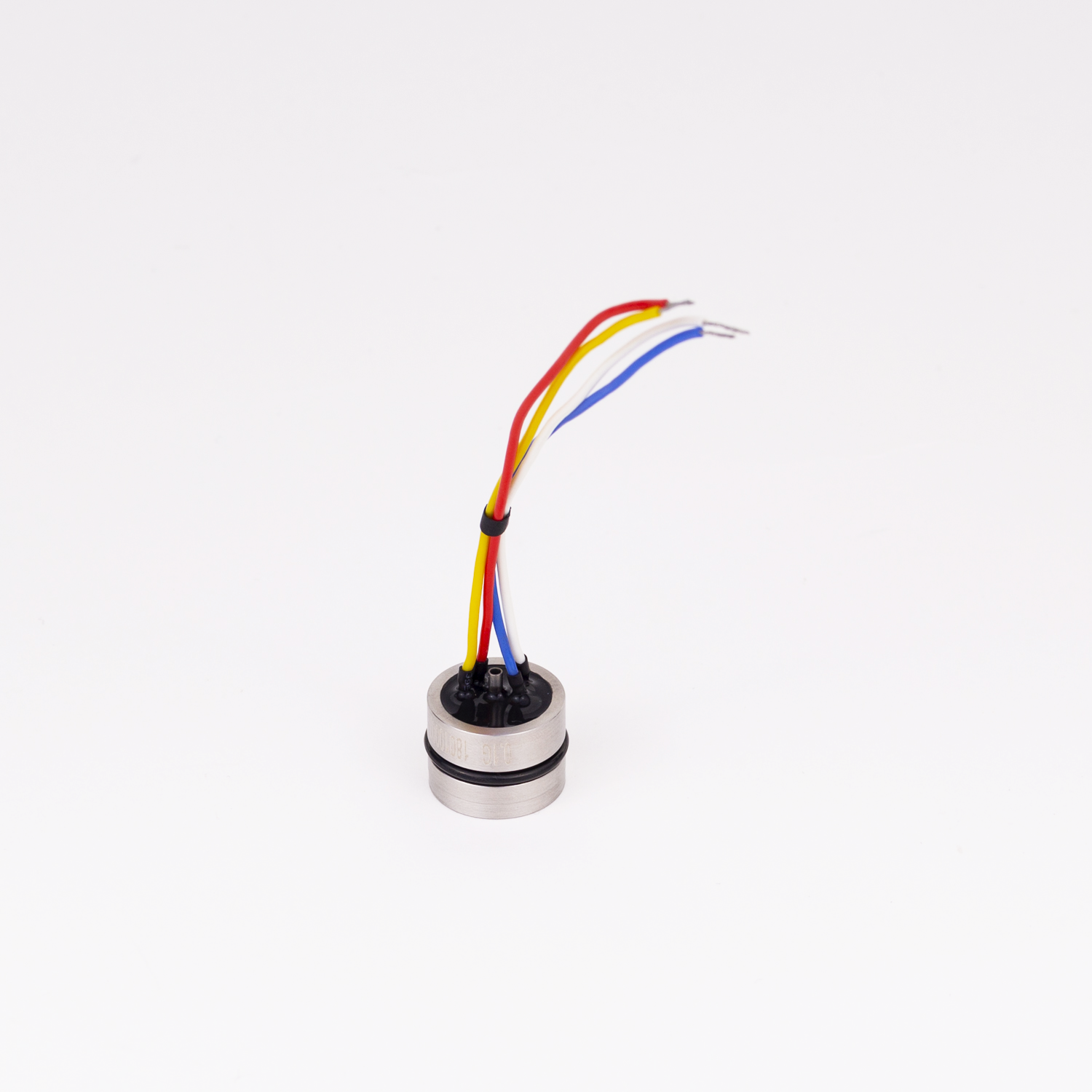

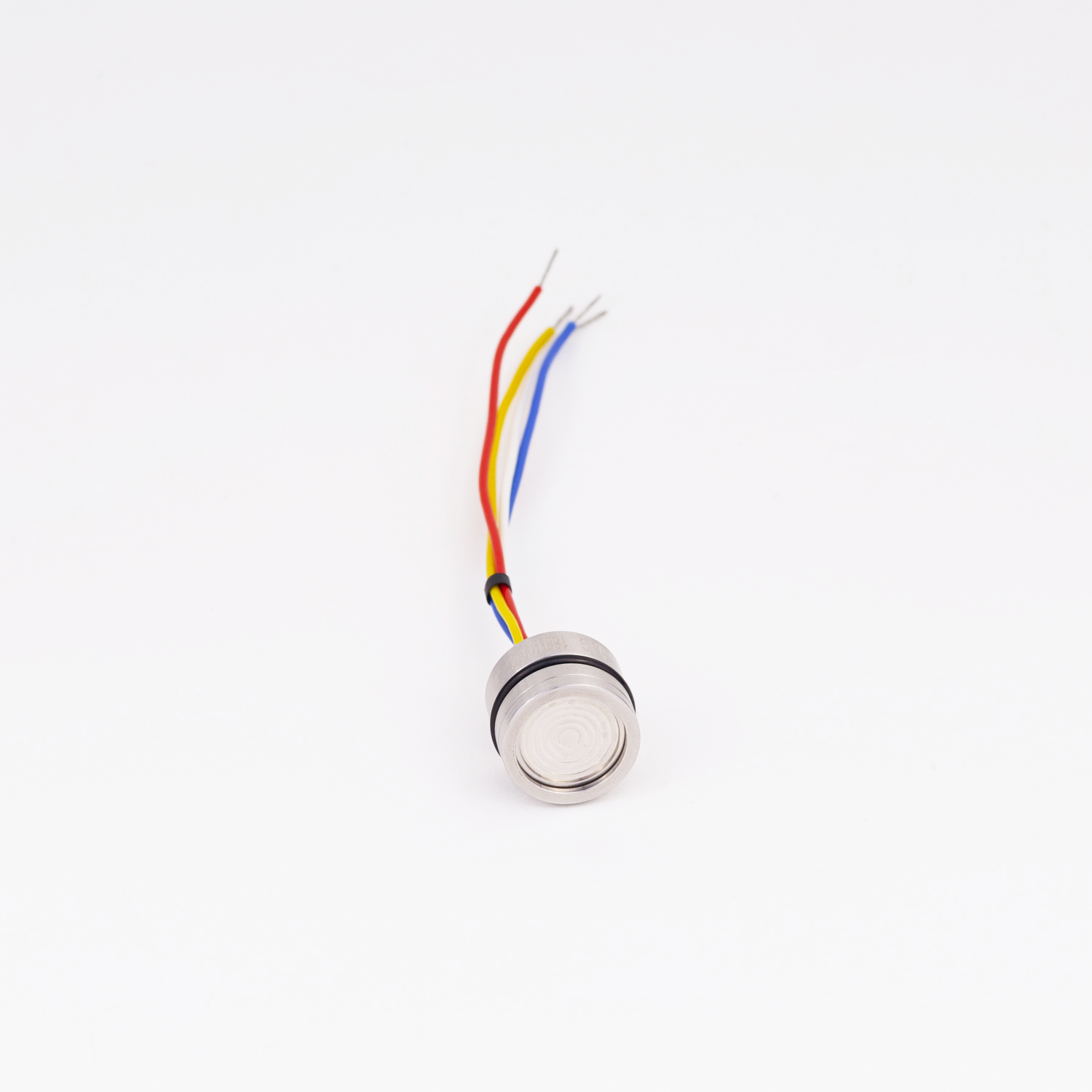

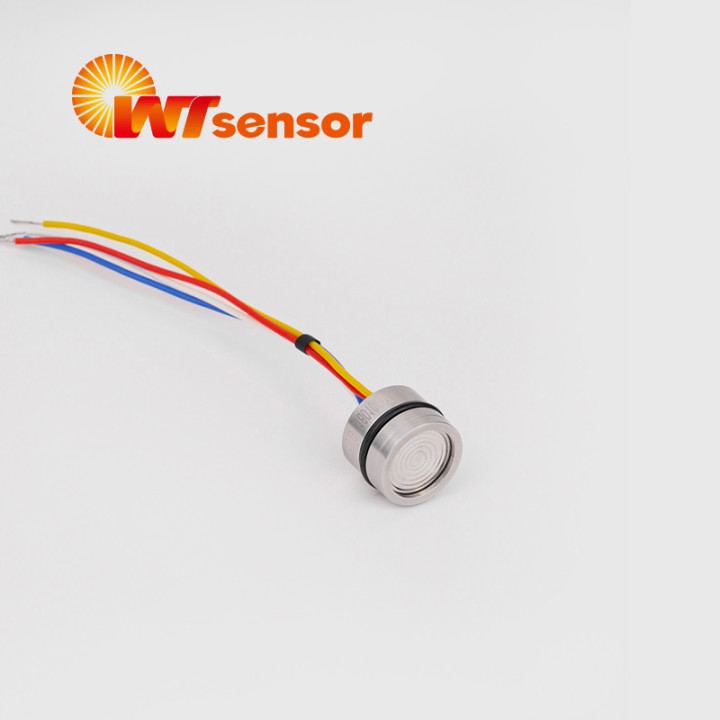

Pressure Sensor Φ19×14mm Oil PC10

Features

■ With constant current and constant voltage excitation options

■ Imported highly reliable pressure die

■ Wide temperature compensation

■ Normalized output available

■ Compensation board filled with glue for protection against moisture

■ Φ19mm standard OEM

■ All 316L material

■ High performance, all solid, high reliability

■ 18 months warranty period

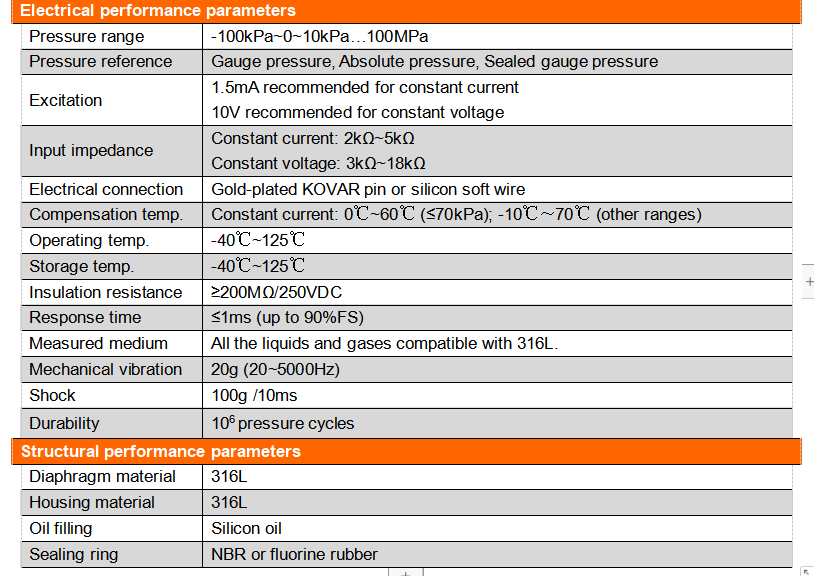

Product Parameters


Electrical performance parameters

Pressure range

-100kPa010kPa…100MPa


Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure


Excitation

1.5mA recommended for constant current

10V recommended for constant voltage


Input impedance

Constant current: 2kΩ5kΩ

Constant voltage: 3kΩ18kΩ


Electrical connection

Gold-plated KOVAR pin or silicon soft wire


Compensation temp.

Constant current: 060℃(≤35kPa), -1070℃(other ranges);

Constant voltage: -2085


Operating temp.

-40125


Storage temp.

-40125


Insulation resistance

≥200MΩ/250VDC


Response time

≤1ms (up to 90%FS)


Measured medium

All the liquids and gases compatible with 316L.


Mechanical vibration

20g (205000Hz)


Shock

100g (10ms)


Service life

10×106 (cycles)


Structural performance parameters

Diaphragm material

316L


Housing material

316L


Oil filling

Silicon oil


Sealing ring

NBR or fluorine rubber


Basic parameters

Item

Condition

Min

Nominal

Max

Unit

Note


Nonlinearity


-0.3

±0.2

0.3

%FS

Note


Hysteresis


-0.05

±0.03

0.05

%FS



Repeatability


-0.05

±0.03

0.05

%FS



Basic parameters (cont.)


Item

Condition

Min

Nominal

Max

Unit

Note


Zero output


-2

±1

2

mV



Full scale span output

1.5mA, ≤35kPa

1.5mA, other ranges

10V, ≤35kPa

10V, other ranges

40

60

60

80



90



100



150



120

mV



Zero temp. coefficient

10kPa

other ranges

-2

-1.5

±1.5

±0.75

2

1.5

%FS

Note


Span temp. coefficient


-1.5

±0.75

1.5

%FS

Note


Thermal hysteresis


-0.075

±0.05

0.075

%FS

Note


Long term stability


-0.3

±0.2

0.3

%FS/Year



Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range, refer to 30 for 0 ~ 60 and -10 ~ 70 , and refer to 32.5 for -20 ~ 85 .

(3) After passing high and low temperature, return to the reference temperature.


Structure and dimensions

In mm

Gauge pressure

10kPa4MPa

Sealed gauge pressure or absolute pressure

25MPa

Sealed gauge pressure

≥25MPa



 Φ19×14mm Oil Pressure Sensor PC10






Φ19×14mm Oil Pressure Sensor PC10


Φ19×14mm Oil Pressure Sensor PC10





Electrical connection (in mm)

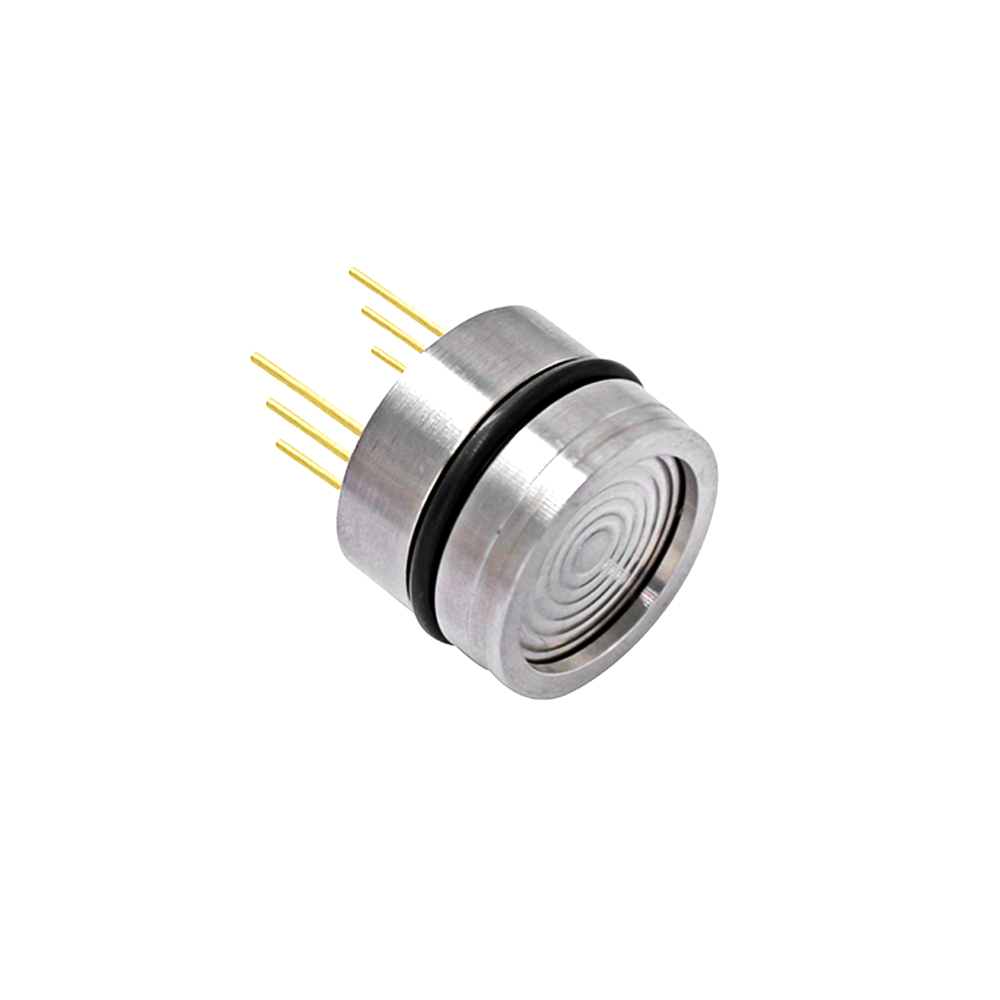

1. 6 pin (6p)




 Φ19×14mm Oil Pressure Sensor PC10



Pin          Definition

3        Excitation+(IN+)

5        Excitation-(IN-)

2        Output+(OUT+)

4        Output-(OUT-)

1          Die-

6          Die-


Electrical connection (in mm) (cont.)

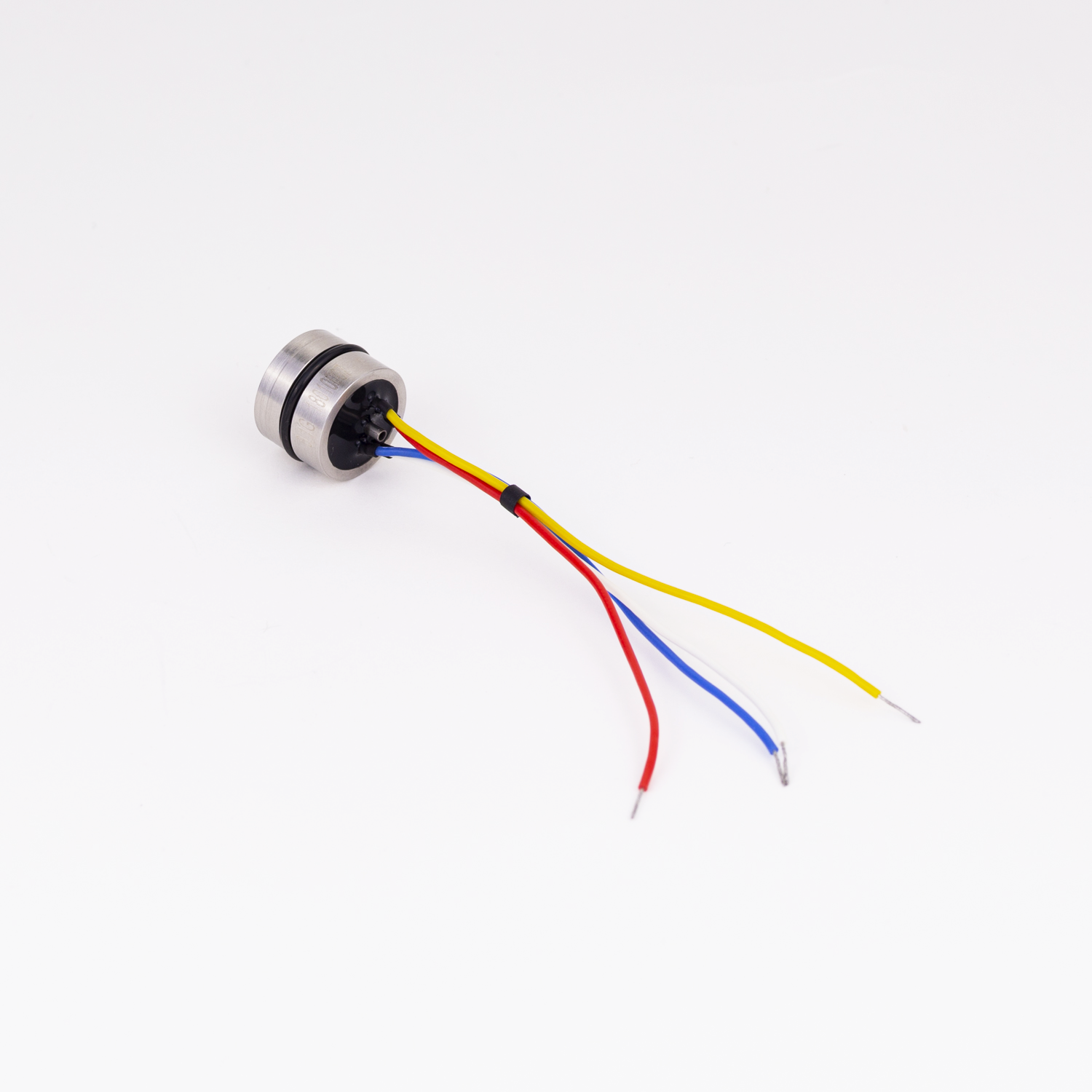

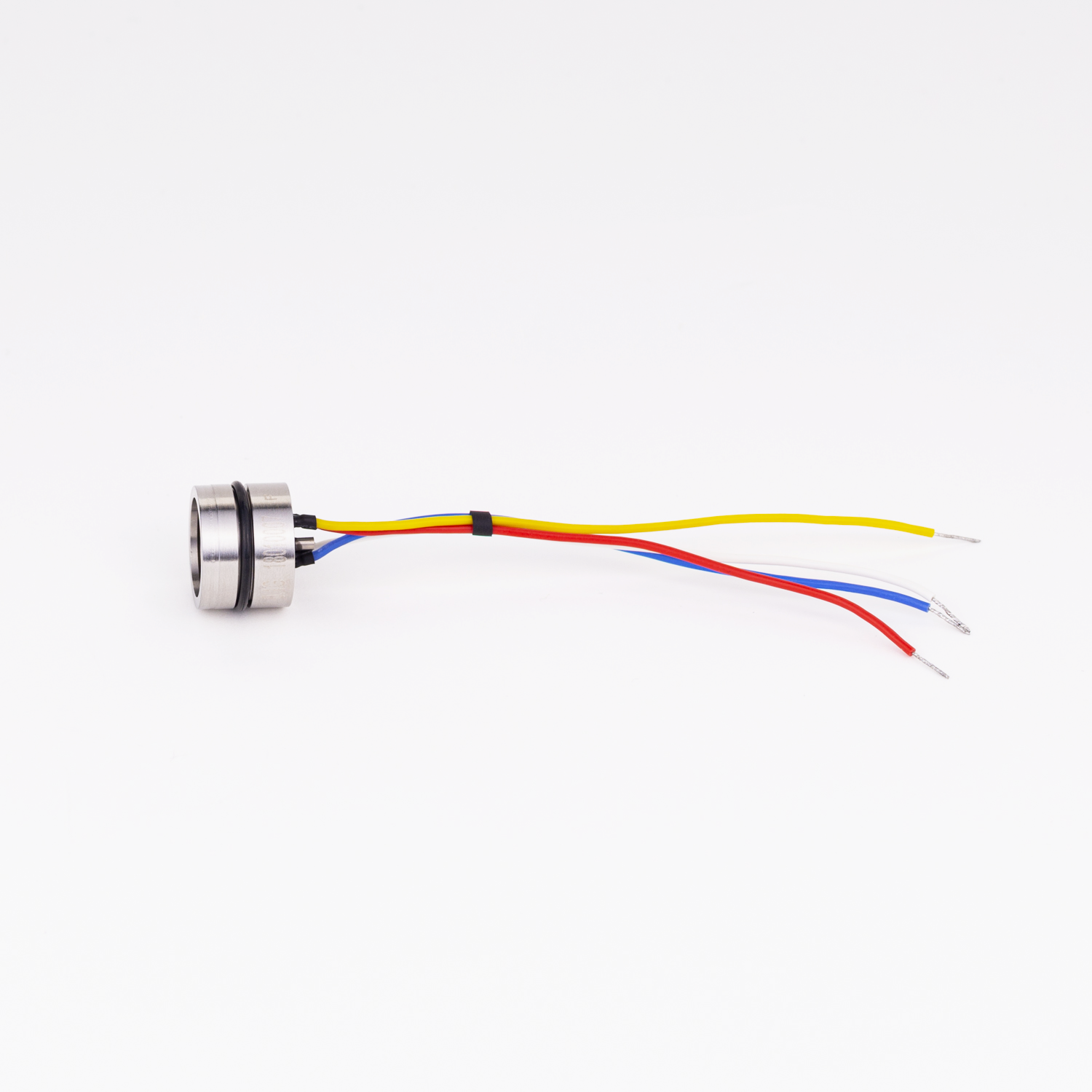

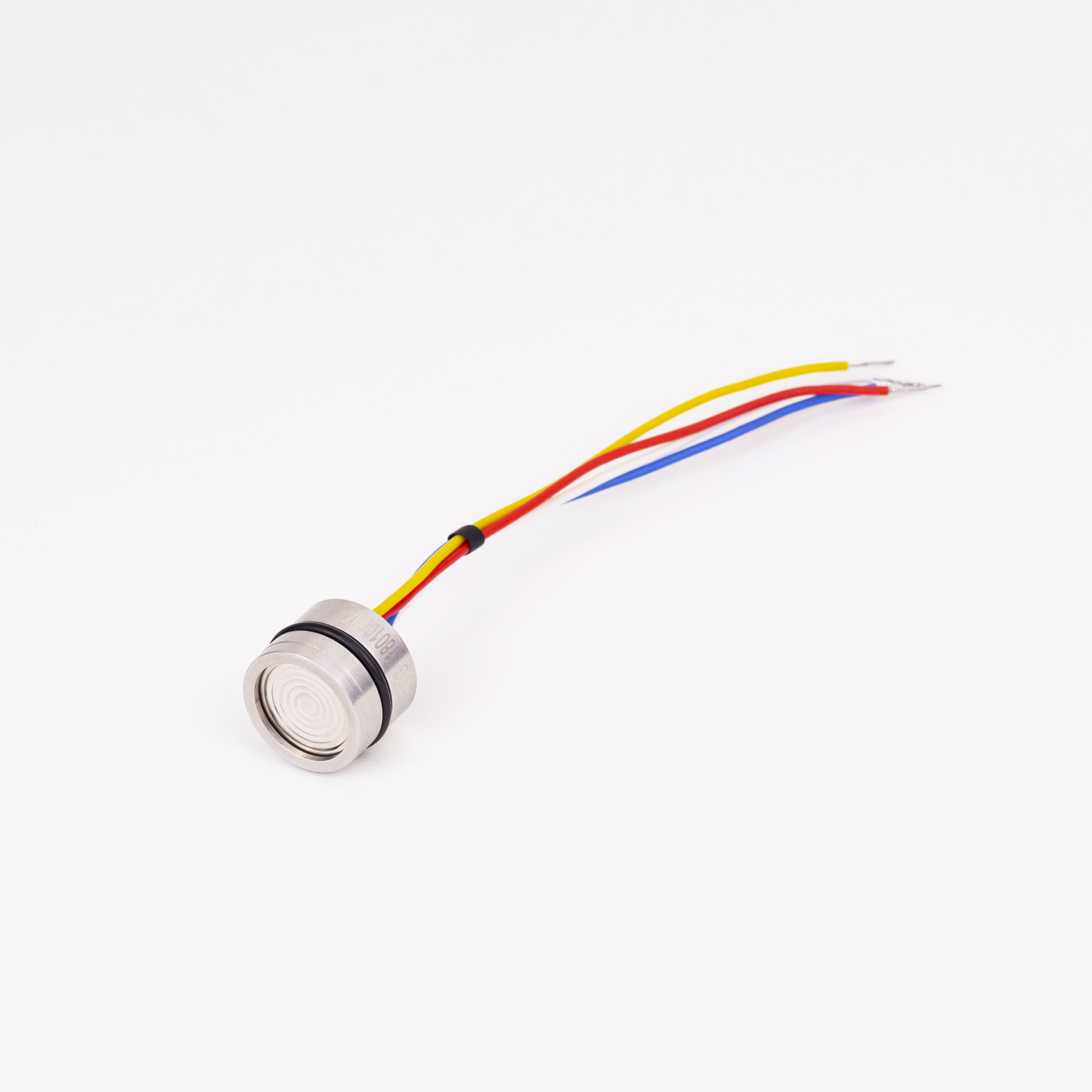

2. 4 wire (4w)

Φ19×14mm Oil Pressure Sensor PC10





Wire color       Definition

Red        Excitation+(IN+)

Blue    Excitation-(IN-)

Yellow    Output+(OUT+)

White    Output-(OUT-)

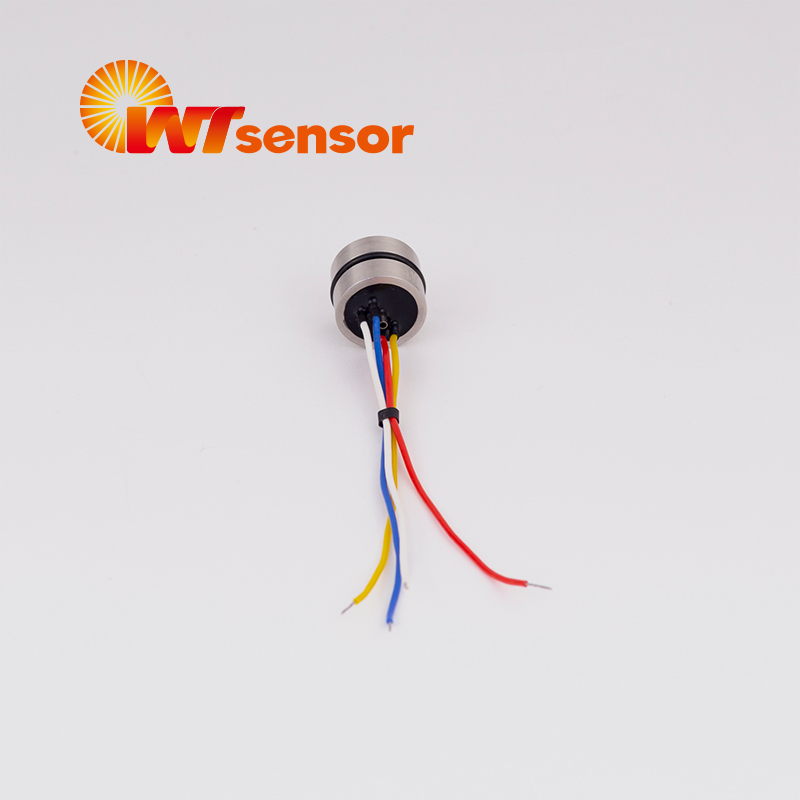

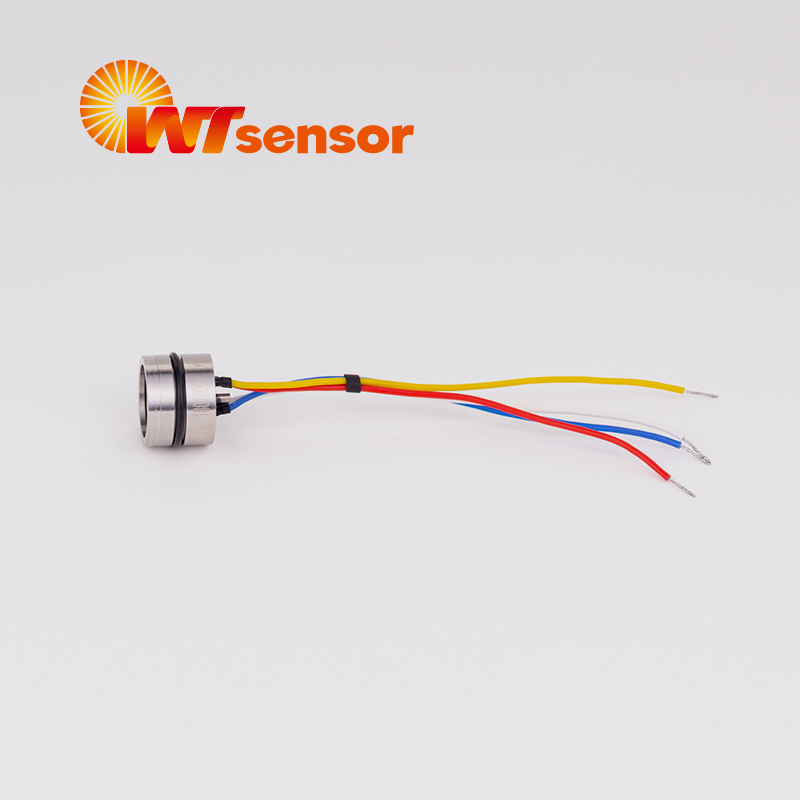

3. 5 wire (5w)


Φ19×14mm Oil Pressure Sensor PC10





Wire color       Definition

Red        Excitation+(IN+)

Blue    Excitation-(IN-)

Blue    Excitation-(IN-)

Yellow    Output+(OUT+)

White    Output-(OUT-)



Φ19×14mm Oil Pressure Sensor PC10
