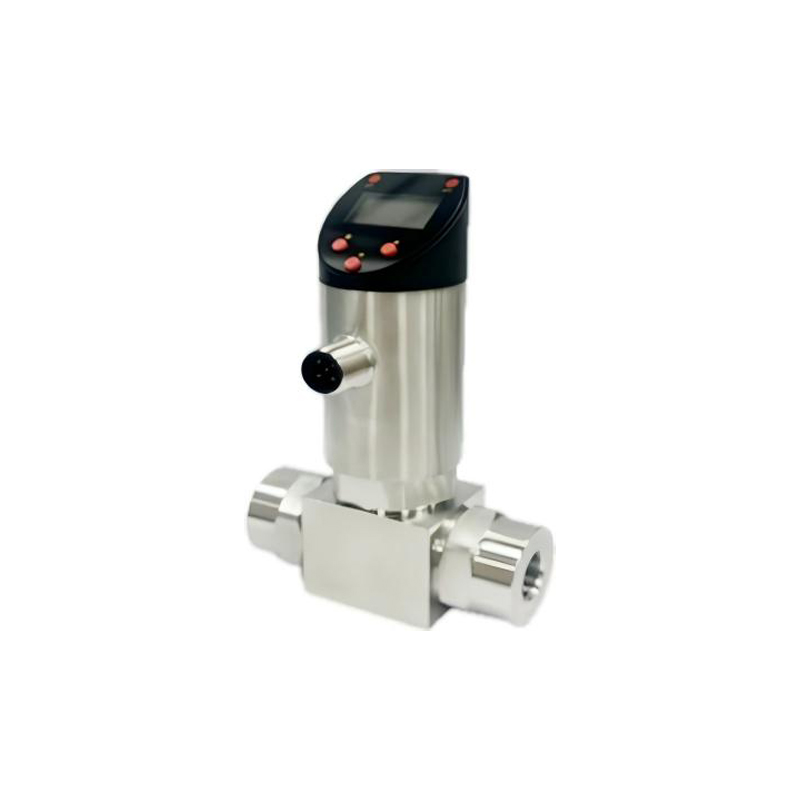

Differential Pressure Switch PCM710D
Product overview
PCM710 Intelligent Differential Pressure Switch is an intelligent pressure measurement & control product which integrates pressure measurement, display, output and control. This product is in full-electronic structure. The piezoresistive silicon pressure sensor is adopted in the front end. The output signal is processed by the amplifier with high precision and low temperature drift, and then sent into high precision A/D converter. Through arithmetic processing by microprocessor, the output signal is displayed on site with 2-way switch quantity and
4~20mA analog quantity, accomplishing the measurement and control for the control system pressure.
This intelligent digital pressure controller has advantages of flexible use, simple operation, easy commissioning and high safety and reliability. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries for the measurement, display and control of pressure of fluid media.
Features
■ High precision
■ Adjustable response time
■ NPN, PNP compatible, free switching
■ Button operation, shortcut button for one-click zero calibration, fast unit switching
■ OLED shows the current pressure
■ LED for node action, easy to observe
Applications and industries
■ Hydropower
■ Chemical industry
■ City water supply
■ Scientific research
■ Accurate measurement and control of pressure of fluids
Product Parameters
Performance parameters | |
Pressure range | 0~10kPa…2.5MPa |
Overload capability | 0~10kPa 300%FS 10kPa~2.5MPa 200%FS |
Accuracy | 0.5% |
Power supply | 12~28V, 24V recommended |
Display mode | OLED display of 4 digits |
Output mode | 2-way switch quantity, NPN and PNP compatible + 4~20mA |
Load capacity | ≤24V 1.2A |
Power consumption | ≤15mA |
Operating temp. | -25℃~80℃ |
Storage temp. | -40℃~100℃ |
Response time | ≤10ms |
Insulation | 100MΩ/250VDC |
Protection grade | IP65 |
Structural performance parameters | |
Housing material | 304 |
Medium compatibility | Liquid contacting diaphragm 316L, pressure port 304 |
