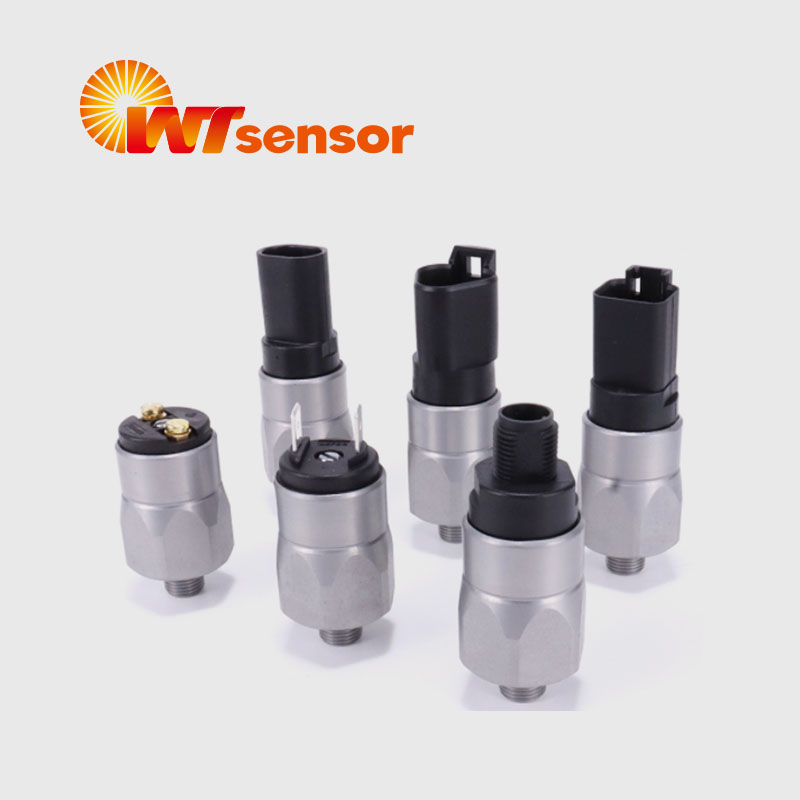

Adjustable High Pressure Switches PCS8

Features

1 million mechanical life and high reliability

Short action time and high sensitivity

■ High pressure resistance and high safety

With metal shell design, the switch is more resistant to vibration and external impact

 Pressure value can be adjusted

■ More shell types/pressure range/thread types/diaphragm types can be selected, which is suitable for more use occasions and has high adaptability


Applications

■ Construction machinery,such as excavators

■ Forklifttruck (oil burning type with hydraulic system)

■ Hydraulic system,such as hydraulic lubrication pump and hydraulic pump station




Product Parameters

Performance Parameters


Model

Adjustment Range

Avg. Differential



PSI         Bar

1

450-1450

30-100

Less than 10% of

Actuation Point



2

725-2175

50-150

3

1450-2900

100-200

Electrical

100VA/42VDC

Gold contacts may be required for less than 12 VDC and 20 milliamp

Wetted material

Diaphragm: Buna-N (standard)

(optional EPDM,FKM, VITON®HNBR)

Housing: Zinc-plated steel, 304 Stainless steel,316L Stainless steel

Protection

Exposed Terminals - IP00

DIN 43650A-IP65

Flying Leads & Deutsch Integral - IP67

Repeatability

± 3% of full set point range at 21°C

Ambient Temperature

Switch type

Creep Action

Mechanical life

200,000 cycles

Temperature range

BUNA-N: -30℃~110℃

EPDM:  -40-130℃

FKM:  -10-120℃

VITON®: -40-130℃

HNBR: -40℃~130℃

Maximum Overload pressure

9000 PSI (620 Bar)

Weight

0.07 kg

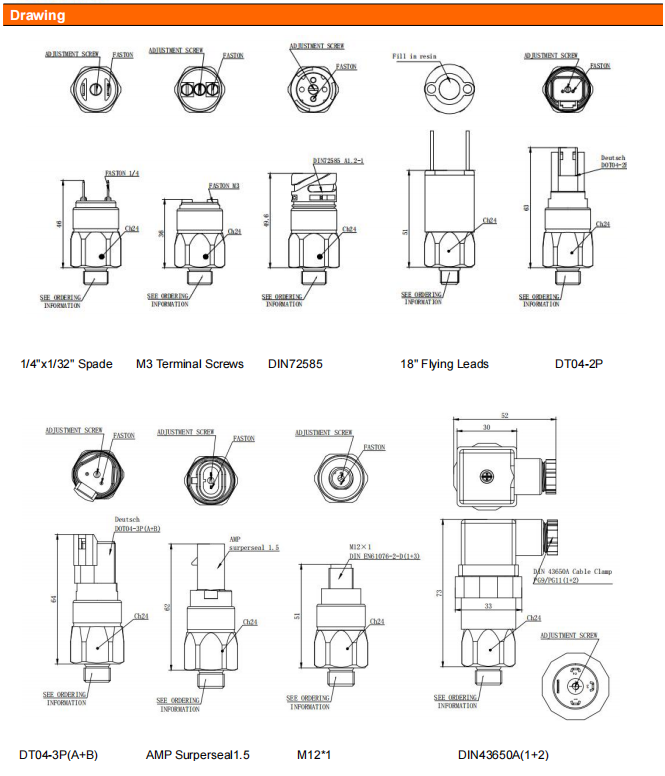

PCS8 Adjustable High Pressure Switches

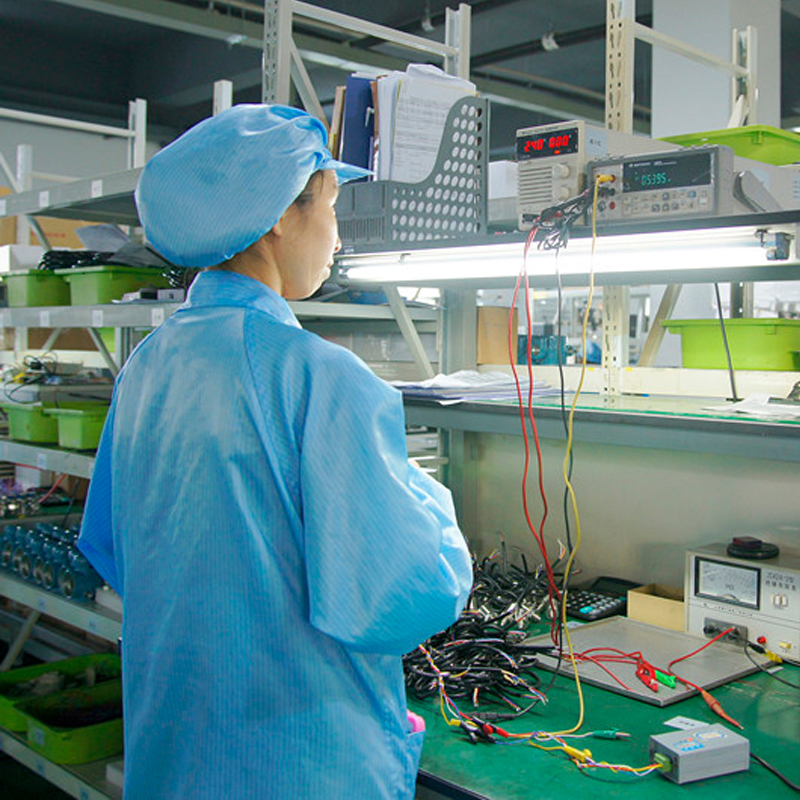

Production process

EPA/EPF Adjustable High Pressure Switch


                                                  Testing Equipment


Intelligent Pressure Switch digital pressure switch PCM710Intelligent Pressure Switch digital pressure switch PCM710

Intelligent Pressure Switch digital pressure switch PCM710Intelligent Pressure Switch digital pressure switch PCM710



Certificate

EPA/EPF Adjustable High Pressure Switch

Company profile

PCM580 Digital Pressure Gauge (Φ80mm)

Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors.  Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.

Company advantage

Mass production

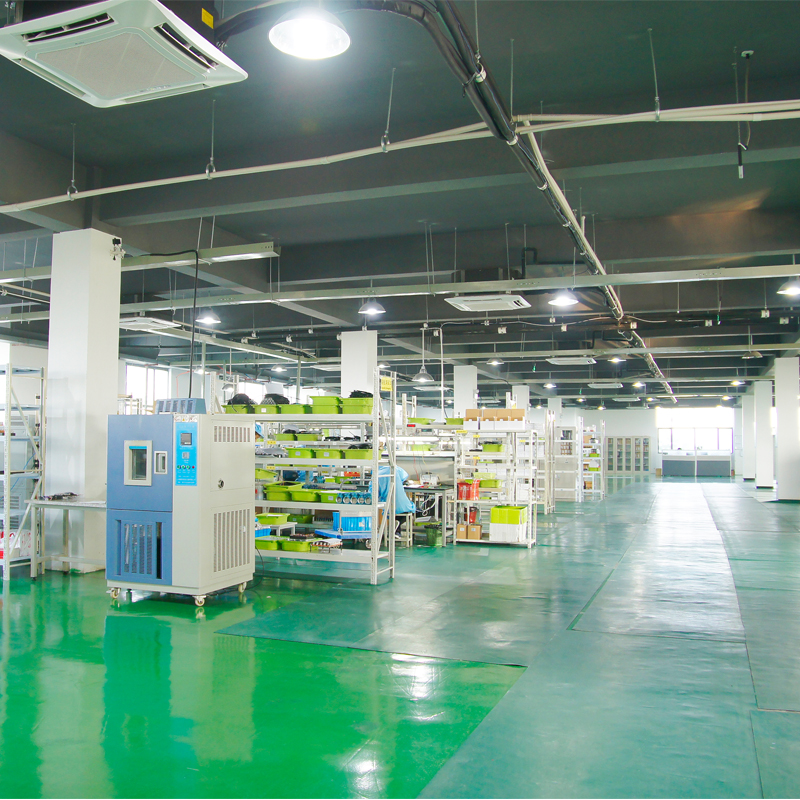

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
