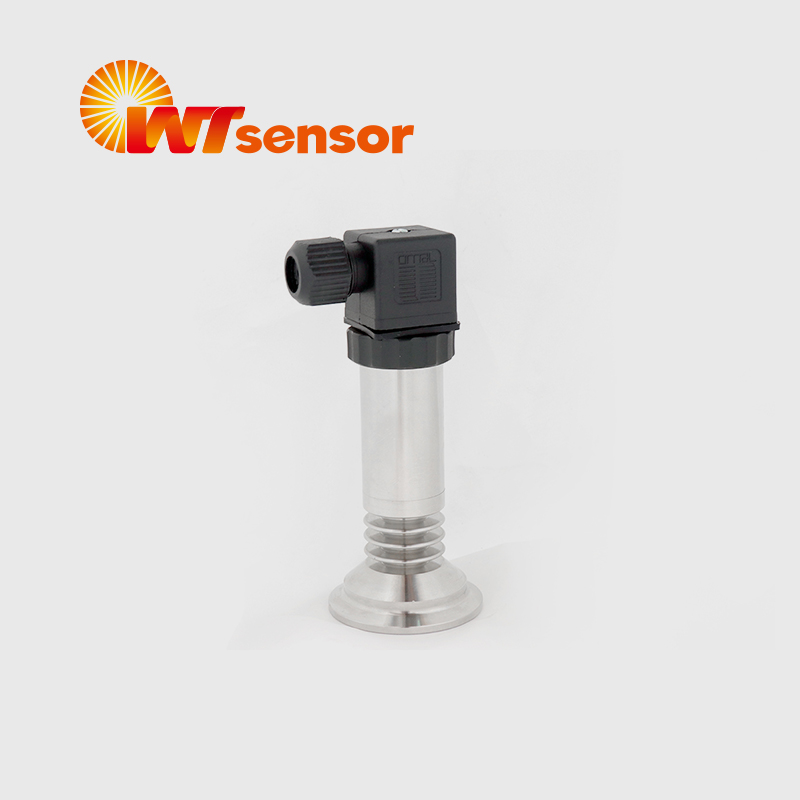

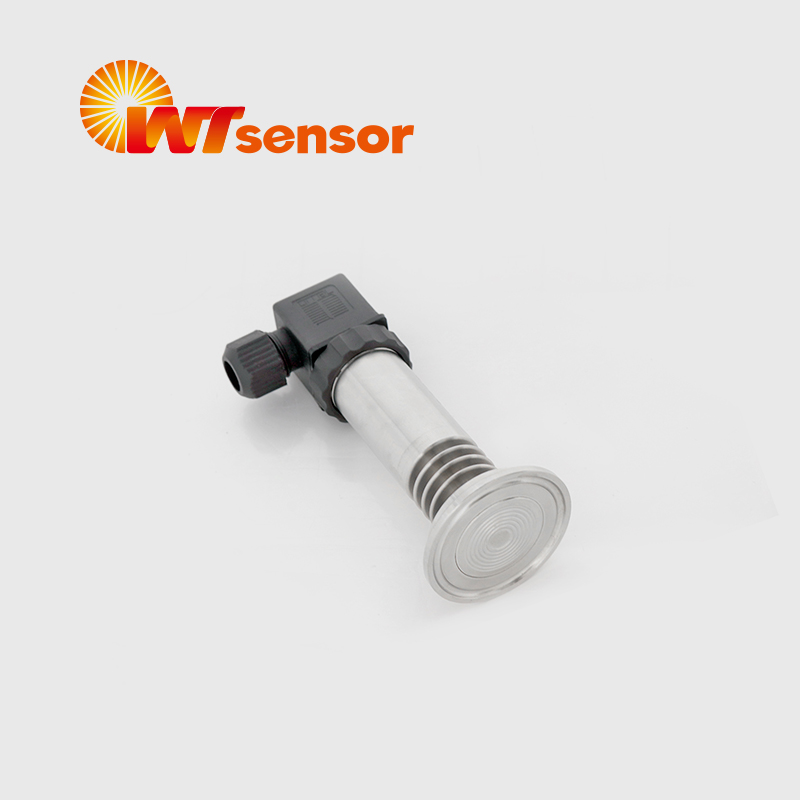

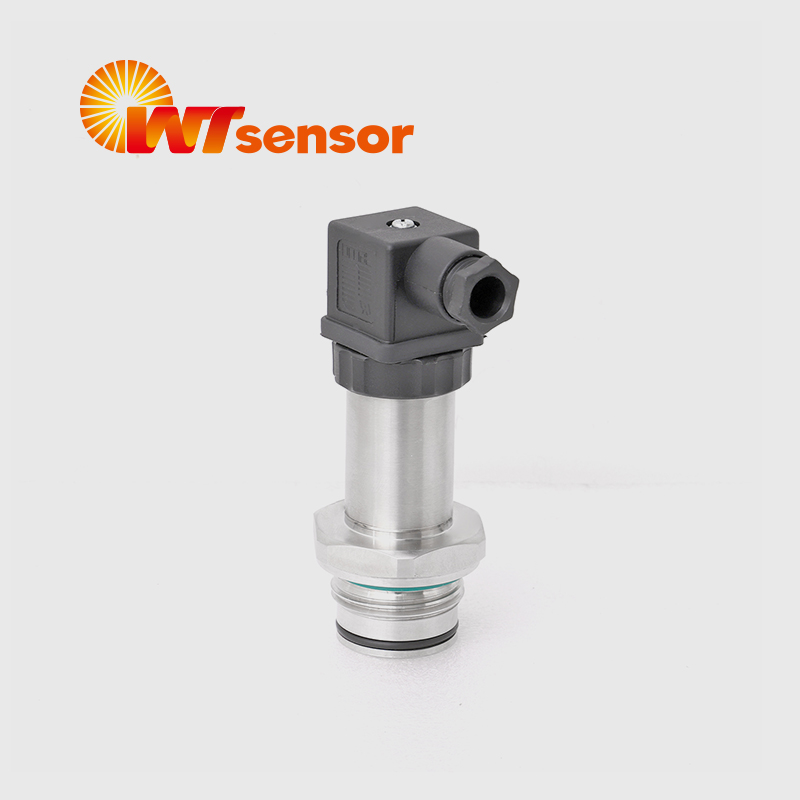

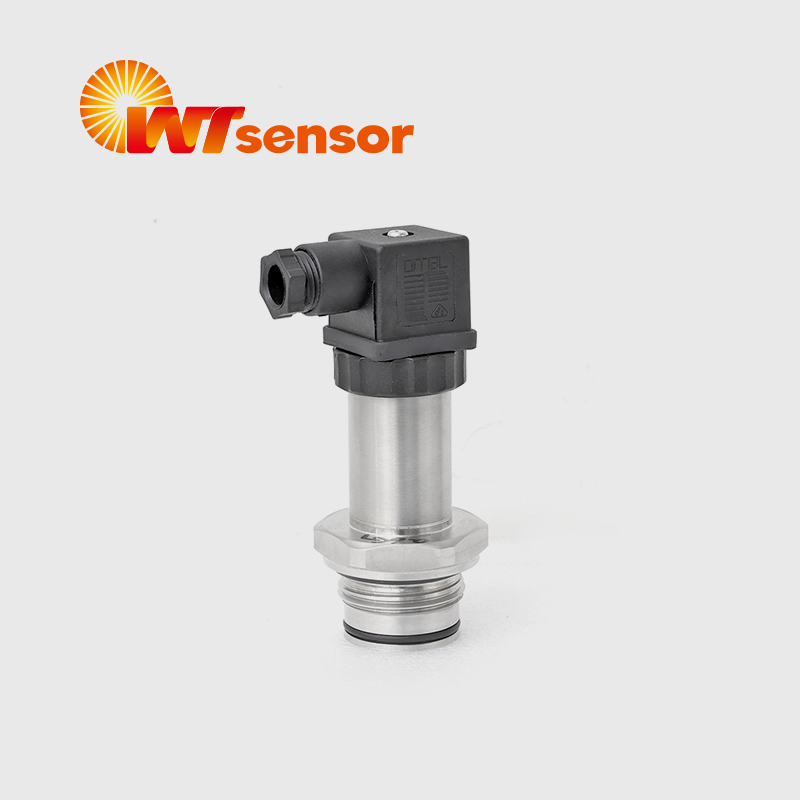

Flush diaphragm Pressure Sensor PCM1350
Features
■ With SS316L isolation diaphragm structure
■ With high accuracy and all stainless steel structure
■ With strong anti-interference and good stability
■ Adjustable zero and span output
■ With diversified form and structure, and easy for installation
■ Multiple aseptic process connections available for process temperature up to 150℃

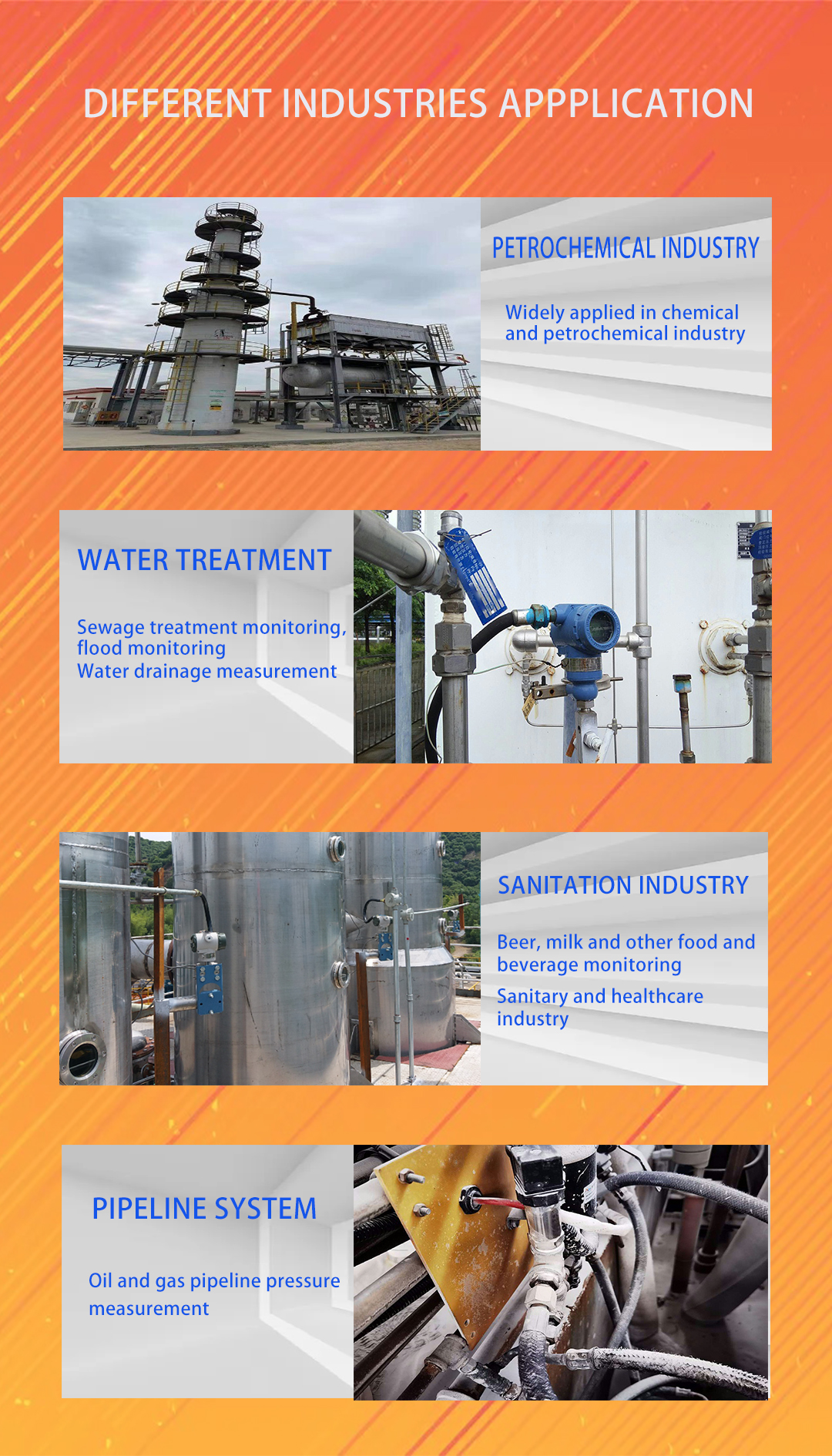

Applications and industries
■ Oil and gas, compressed air, steam,liquid, paste and powder media
■Vacuum pressure detection such as vacuum transfer pump monitoring
Product Parameters
Performance parameters | |||
Pressure range | -100kPa…0~35kPa…2.5MPa | ||
Pressure reference | Gauge pressure, Absolute pressure, Sealed gauge pressure | ||
Accuracy | 0.5%FS | ||
Hysteresis | 0.1%FS | ||
Repeatability | 0.1%FS | ||
Temperature drift | 35kPa: ±3%FS (0℃~60℃) Other ranges: ±1.5%FS (-10℃~70℃) | ||
Response time | ≤1ms（Up to 90%FS） | ||
Overload pressure | Refer to “Pressure range selection” | ||
Durability | ≥106 pressure cycles | ||
Ambient temp. | -20℃~85℃ | ||
Medium temp. | -30℃~125℃ | ||
Storage temp. | -40℃~125℃ | ||
EMC | Immunity: IEC 61000-6-2, Radiation: IEC 61000-6-3 | ||
Insulation resistance | ≥100MΩ/250VDC | ||
Vibration performance | Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6 Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64 | ||
Protection grade | IP67 (No connectors are included.) | ||
Surge | IEC 61000-4-5 3 level | ||
Voltage resistance | Current output：500V/AC 1min Voltage output：250V/AC 1min | ||
Static electricity | IEC 61000-4-2 4 level | ||
Medium compatibility | All medium compatible with 316L | ||
Ex-proof | Intrinsically safe explosion-proof ExiaⅡCT6 (Only for 4 to 20mA output) | ||
Net weight | 300~350g | ||
Output and power supply | |||
Code | B1 | B7 | Customizable |
Output | 4~20mA | 0~10V | |
Power supply | 12~30VDC | 12~30VDC | |
Electrical connection & wiring mode | ||||
Connector code | J5：DIN43650 | J3H:DIN43650 with cable outlet | J4: M12 | |
Dimension In mm |
|
|
| |
Protection grade | IP65 | IP65 | IP65 | |
Connection mode (2-wire current output) | Pin 1: Supply+ (red wire) Pin 2: Current output (green wire) | Red wire: Supply+ Green wire: Current output
|
(red wire) Pin 2:Common ground (green wire) | |
Connection mode (3-wire voltage output) | Pin 1: Supply+ (red wire) Pin 2: Common ground (green wire) Pin 3:Voltage output (yellow wire) | Red wire: Supply+ Green wire: Common ground Yellow wire: Voltage output | Pin 1: Supply+ (red wire) Pin 2: Common ground (green wire) Pin 3:Voltage output (yellow wire) | |

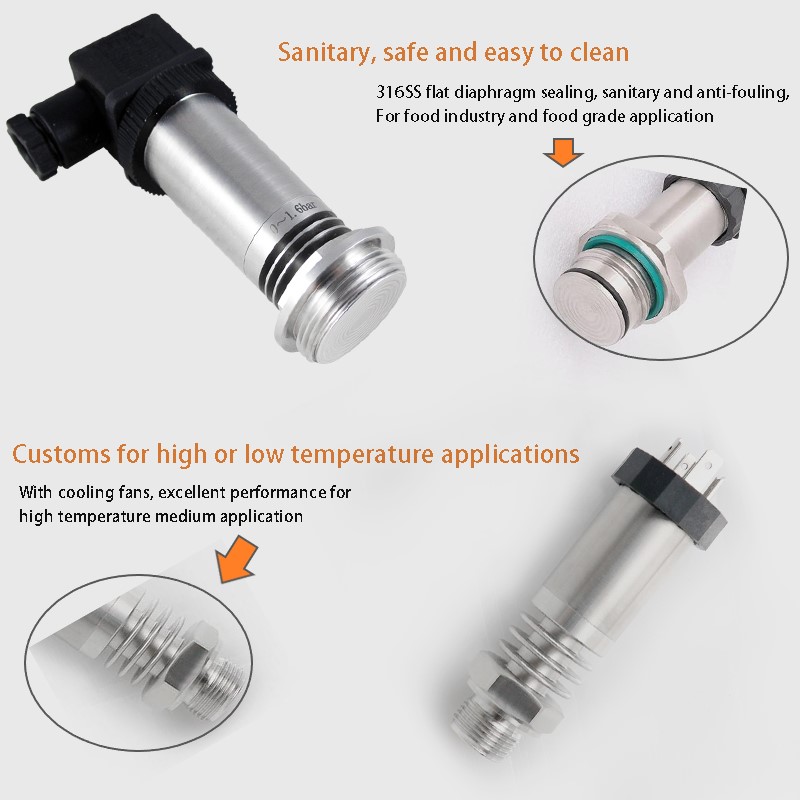

Cooling fins | ||
Code | T0：No cooling fins | T3: 3 pieces cooling fins |
Dimension In mm |
|
|
Selection of cooling fins | Medium temperature ≤100℃ | 100℃<Medium temperature ≤150℃ |
Pressure range selection | |||||
Pressure range code | Pressure reference | Pressure range | Overpressure | Burst pressure | NOTES |
35k | G | 0~35kPa | 300％FS | 600％FS | |
70k | G | 0~70kPa | 300％FS | 600％FS | |
100k | G、A | 0~100kPa | 200％FS | 500％FS | |
250k | G | 0~250kPa | 200％FS | 500％FS | |
600k | G | 0~600kPa | 200％FS | 500％FS | |
1M | G | 0~1MPa | 200％FS | 500％FS | |
1.6M | G、S | 0~1.6MPa | 200％FS | 500％FS | |
2.5M | G、S | 0~2.5MPa | 200％FS | 500％FS | |
Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.
