Industrial Applications of PC10D Differential Pressure Sensor in Venturi and Vortex Flow Meters

Accurate flow measurement is fundamental for industries that depend on controlled processes, energy efficiency, and compliance with regulations. Venturi flow meters and vortex flow meters are two of the most widely used devices for fluid flow monitoring. At the heart of these systems lies the differential pressure sensor, which converts pressure changes into electrical signals.

The PC10D piezoresistive silicon differential pressure sensor, with its robust stainless-steel construction, wide temperature compensation, and high static pressure resistance, is an excellent choice for both Venturi and vortex applications.

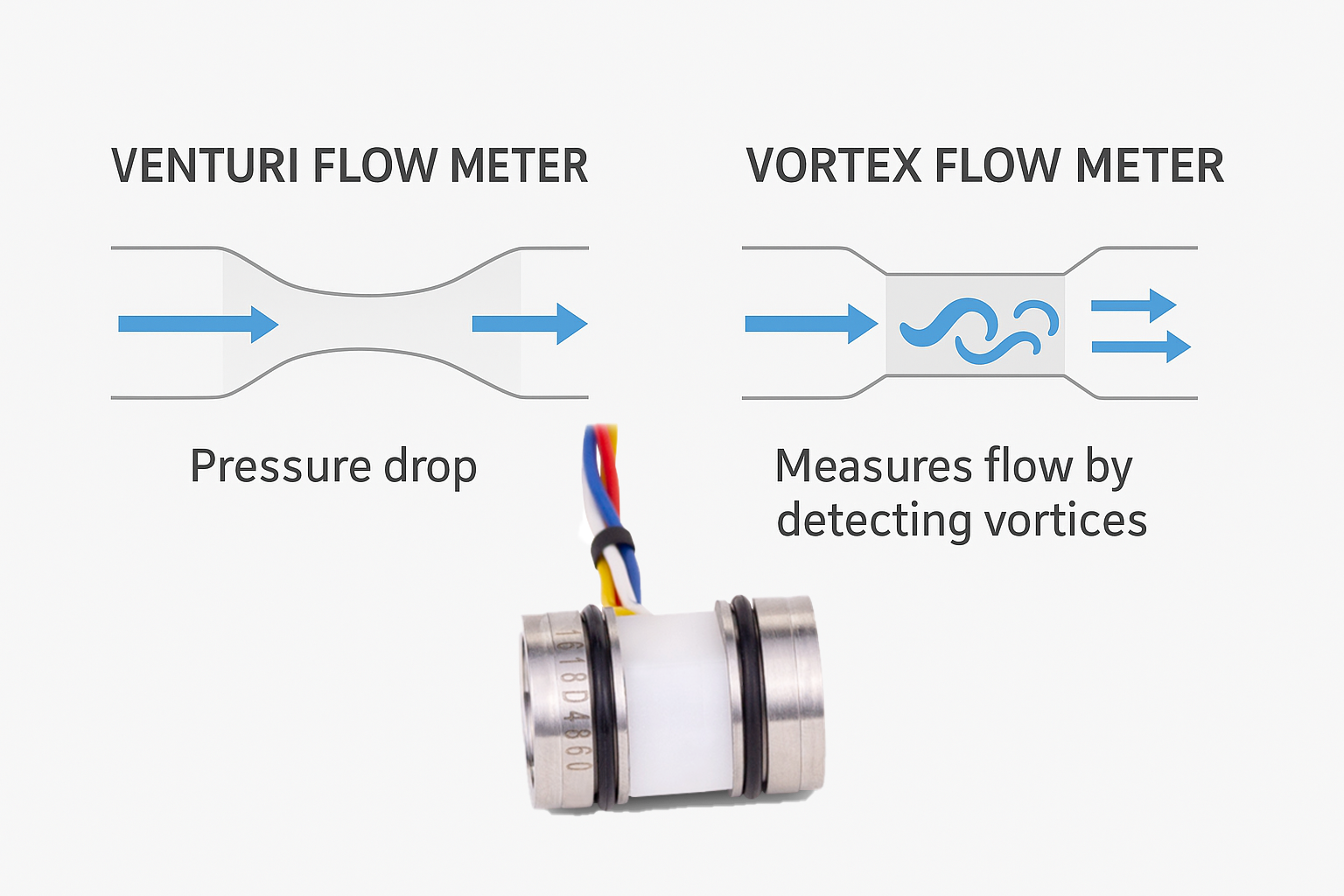

Working Principles of Venturi and Vortex Flow Meters

Application Scenarios in Venturi Flow Meters

1. Oil and Gas Pipelines

• Custody transfer of natural gas and crude oil

• Pipeline balancing and leak detection

• Stable performance under high pressure and corrosive environments

Equipment Integration:

• Large Venturi tubes in pipelines

• Differential pressure transmitters with PC10D cores

• SCADA-based monitoring systems

2. Chemical Processing Plants

• Flow measurement of acids, alkalis, and aggressive chemicals

• Monitoring feedstocks in reactors

• Process safety control in corrosive environments

Key Benefit: PC10D’s 316L stainless steel diaphragm protects against corrosion.

3. Water Treatment & Supply Systems

• Flow monitoring in municipal and industrial water systems

• Wastewater and sludge transport measurement

• Low pressure drop and high reliability

4. Power Generation

• Steam flow monitoring in boilers

• Feedwater regulation in turbines

• Cooling water distribution in plants

Diagram – Venturi Flow Measurement Setup

Application Scenarios in Vortex Flow Meters

1. Compressed Air Systems

• Airflow measurement in industrial plants

• Leak detection in compressed air networks

• Energy optimization

2. Pharmaceuticals and Biotechnology

• Monitoring sterile gases (O₂, N₂, CO₂)

• Clean steam measurement for sterilization

• Bioreactor gas flow control

Equipment Integration:

• Sanitary vortex flow meters

• Bioreactor monitoring systems with PC10D sensors

3. Food and Beverage Industry

• Steam flow in pasteurization

• CO₂ monitoring in carbonated beverages

• Water and process fluid flow in batching systems

4. HVAC and Building Automation

• Monitoring chilled water and steam distribution

• Balancing heating and cooling flows

• Optimizing building energy efficiency

Diagram – Vortex Flow Measurement Setup

Cross-Industry Value of PC10D

Why PC10D is Ideal for Flow Meter Integration

• Durability: Handles corrosive fluids and pressure surges

• Accuracy: Maintains reliable measurement with temperature compensation

• Compatibility: Standardized installation sizes ensure interchangeability

• Versatility: Applicable to both Venturi and vortex flow meter designs

• Low Maintenance: All-solid construction minimizes downtime




Flow measurement is indispensable for industries ranging from oil and gas to pharmaceuticals. Venturi and vortex flow meters, when equipped with the PC10D piezoresistive silicon differential pressure sensor, provide unmatched accuracy, durability, and reliability.

The PC10D’s compact structure, corrosion resistance, and high static pressure tolerance make it the ideal core sensing element for flow monitoring equipment. Whether measuring natural gas in a pipeline, clean steam in biotechnology, or cooling water in HVAC systems, the PC10D ensures that flow meters deliver consistent, precise, and long-lasting performance.
