Installation instructions of Nanjing Wotian PCM610 differential pressure transmitter

Back to list source: Release date: 2019.06.23

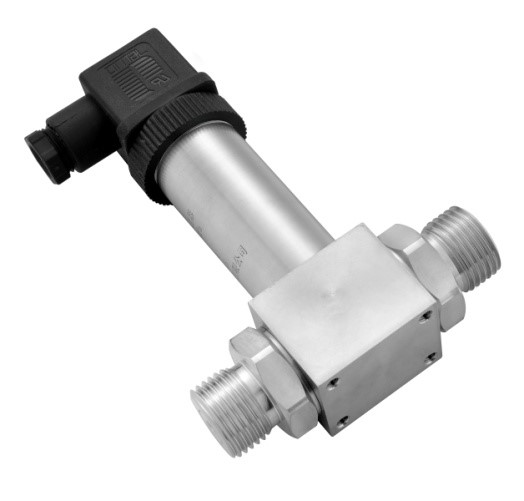

Nanjing Wotian PCM610 differential pressure transmitter pressure sensitive core uses high performance silicon piezoresistive pressure oil-filled core. The internal special integrated circuit converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with Computer interface cards, control instruments, smart instruments or PLCs are easily connected. Nanjing Wotian PCM610 differential pressure transmitter can use the current output mode for distance transmission.pcm610

Nanjing Wotian PCM610 differential pressure transmitter has a small size, light weight, and all stainless steel sealed structure, which can work in corrosive environments. Nanjing Wotian PCM610 differential pressure transmitter is easy to install and has high vibration and shock resistance. It is widely used in process control, aviation, aerospace, automotive, medical equipment, HVAC and other fields.

1 Technical specifications of Nanjing Wotian PCM610 differential pressure transmitter

 Power: 24VDC;

 Output: 4 ～ 20mA;

 Accuracy: 0.5%;

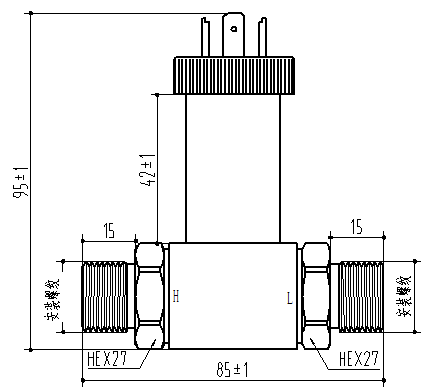

2 Nanjing Wotian PCM610 differential pressure transmitter dimensions and installation pcm610 overall dimensions

 3 Nanjing Wotian PCM610 Differential Pressure Transmitter Installation Method

⑴ Choose a place that is easy to operate and maintain for installation;

⑵ Install as far away as possible from vibration sources;

⑶ It should be as far away from the heat source as possible;

It is best to install three valve groups on the pipeline to avoid product damage due to overload

⑸ Use a wrench to clamp the transmitter at the six sides during installation;

  The joint between the Hessman connector and the housing cannot be turned during operation.

4 Nanjing Wotian PCM610 differential pressure transmitter safety precautions

Be careful when handling and installing the transmitter to avoid damage to the components due to impact and affect the performance of the circuit.

There is an isolation diaphragm in the pressure inlet of the transmitter. Do not touch it with foreign objects.

(3) The electrical connection should strictly follow the wiring method. Misconnection will cause damage to the amplifier circuit.

If you encounter problems during product installation and use, please contact our company. When the product is abnormal, please do not open it for repairs, and you should contact the manufacturer in time.
