What is a Monocrystalline Silicon Pressure Transmitter?
A monocrystalline silicon pressure transmitter uses a high-stability single-crystal silicon chip as its sensing core. These transmitters are manufactured using MEMS (Micro-Electro-Mechanical Systems) technology to deliver unmatched accuracy and robustness. When subjected to pressure, the silicon diaphragm deflects and generates an electrical signal that is processed to produce a standardized output.
PCM2051-AP/GP: High-Performance Transmitter for Harsh Environments

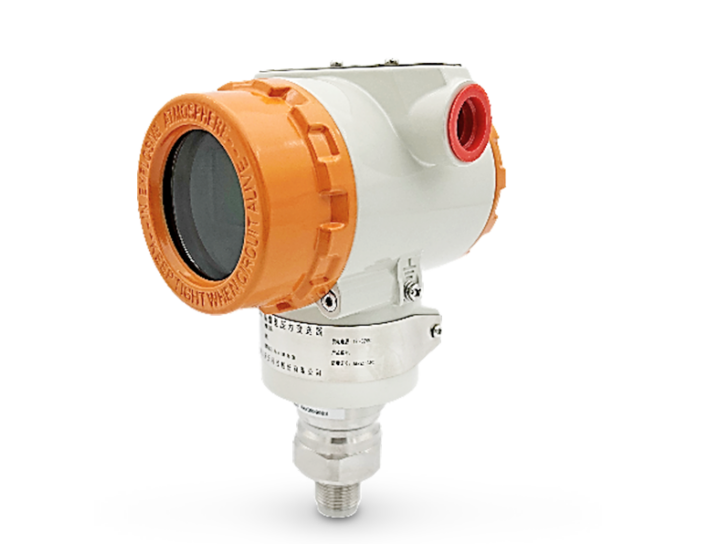

The PCM2051-AP/GP from WTsensor is a next-generation monocrystalline silicon pressure transmitter engineered for demanding applications like firefighting pipe systems. It features a highly stable MEMS silicon chip, a rugged IP67-rated housing, and a digital communication interface for integration into modern control architectures.

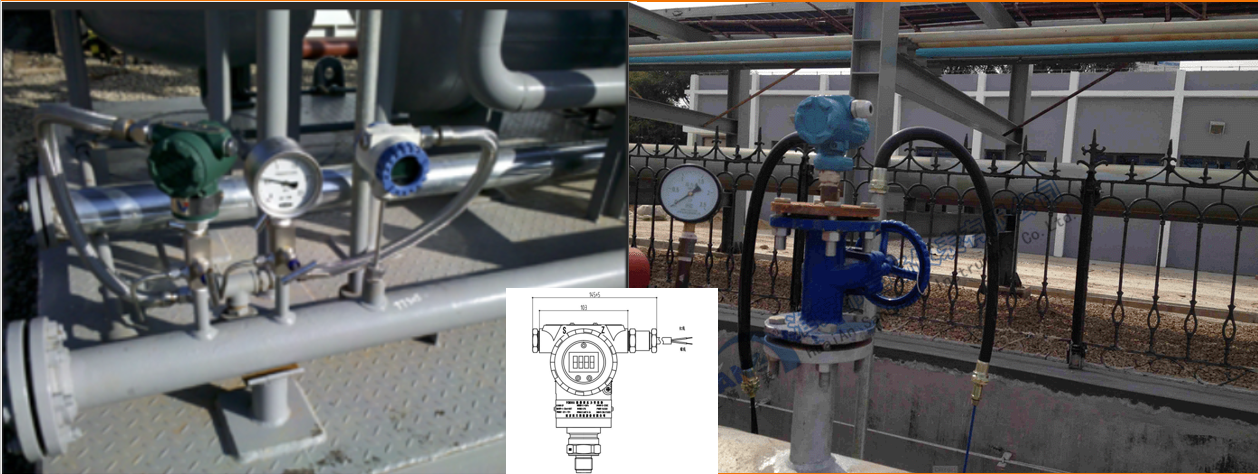

Application in Firefighting Pipe Systems
1. Pressure Maintenance in Sprinkler and Standpipe Networks
Fire sprinkler systems depend on pressurized pipes to release water the moment a sprinkler head is activated. Any pressure drop can signal a fault. The PCM2051-AP/GP continuously monitors pipeline pressure and communicates deviations instantly to a control panel via 4–20mA + HART® protocol.
2. Smart Pump Control for Fire Water Supply
Fire pumps—jockey and main—rely on sensor feedback to activate. The high accuracy (±0.075%FS for standard ranges) of the PCM2051 ensures timely and efficient pump actuation while avoiding unnecessary cycling. Its on-site LCD gauge with backlight enables real-time local observation during inspections or emergency responses.
3. Remote Hydrant and Valve Monitoring
Municipal firefighting grids can use the PCM2051 for hydrant node pressure detection. The transmitter’s ex-proof housing (Ex d IIC T6 Gb) and wide temperature tolerance (-30℃ to 80℃ ambient, -40℃ to 120℃ medium) make it ideal for outdoor or underground use.
Key Features of PCM2051-AP/GP for Firefighting Applications
Advanced MEMS Monocrystalline Silicon Chip: Offers excellent sensitivity and long-term reliability.
Dual-Wire Communication: Supports standard 4–20mA output with HART® protocol for seamless DCS/PLC integration.
Backlit LCD Display: Displays pressure readings, zero point, and range settings locally.
Wide Pressure Ranges: Supports applications from ±6kPa to 40MPa, with options for gauge, absolute, and sealed reference types.
On-Site Adjustment: Zero and span can be adjusted locally for system fine-tuning.
High Protection & Safety: IP67-rated aluminum alloy housing, explosion-proof, and highly resistant to vibration (20g) and shock (100g).
Excellent Stability: ±0.1%FS/year ensures minimal drift over time, essential for critical safety systems.
Technical Specifications of PCM2051-AP/GP
Parameter | Specification |
Pressure Range | ±6kPa G to 0–40MPa S (extensive coverage) |
Reference Types | Gauge, Absolute, Sealed Gauge |
Accuracy | ±0.1%FS (±6kPa), ±0.075%FS (others) |
Output Signal | 4–20mA + HART® digital communication |
Supply Voltage | 12V–32VDC (recommended 24V) |
Temperature Range | -30°C to 80°C (ambient), -40°C to 120°C (medium) |
Display | Optional intelligent LCD with backlight |
Response Time | 0.1s (sensor), 0.5s (HART output) |
Ex-Proof Rating | Ex d IIC T6 Gb |
Material | 316L SS diaphragm, cast aluminum housing |
Protection Rating | IP67 |
Shock/Vibration Resistance | 100g/11ms shock, 20g vibration (20–5000Hz) |
Benefits in Fire Protection Systems
✅ Enhanced Safety and Reliability
The precision and reliability of the PCM2051 enable early fault detection and rapid response, critical for life-safety systems.
✅ Digital Communication
HART protocol enables integration into centralized fire monitoring systems or SCADA for remote diagnostics, historical logging, and alarms.
✅ Rugged and Maintenance-Free
The isolation housing, vibration resistance, and zero mechanical moving parts reduce maintenance needs and extend service life.
Absolutely! Here's an elaborated technical section breaking down the parameter requirements and application considerations for monocrystalline silicon pressure transmitters—such as the WTsensor PCM2051-AP/GP—in the three firefighting pipeline use cases: commercial buildings, industrial plants, and municipal fire networks.
Application-Specific Parameters and Considerations for PCM2051-AP/GP Pressure Transmitters
1. Commercial Buildings: Monitoring Standpipe and Sprinkler System Pressure
✅ Application Characteristics:
Pressurized wet-pipe sprinkler and standpipe systems.
Need for continuous pressure display in fire risers or mechanical rooms.
Integration with fire alarm panels or building automation systems (BAS).
Compliance with fire safety regulations (e.g., NFPA 13/14, GB50016).
Recommended Transmitter Parameters:
Parameter | Recommendation |
Pressure Range | Typically 0–1 MPa or 0–2.5 MPa G (standpipe/sprinkler systems) |
Accuracy | ±0.075%FS for reliable detection of drops or fluctuations |
Output Signal | 4–20mA + HART® for BAS integration |
Display | Integrated LCD with backlight for local reading |
Power Supply | 24VDC preferred (matches common control panels) |
Response Time | ≤0.5s total (sensor + HART) for alarm triggering |
Protection Level | IP67 for mechanical room humidity |
Material Compatibility | 316L SS for chlorinated water |
Considerations:
Install near riser valves or flow switches.
Provide access to the LCD for maintenance personnel.
Use local zero/span adjustment to calibrate after system fill and pressure testing.
2. Industrial Plants: Fire Water Rings in High Vibration Environments
✅ Application Characteristics:
Distributed fire water ring main systems around processing units or tank farms.
Exposure to high vibration (due to pumps, compressors, machinery).
Harsh environmental conditions, possibly outdoor or elevated temperature zones.
Recommended Transmitter Parameters:
Parameter | Recommendation |
Pressure Range | 0–2.5 MPa, 0–4 MPa G (fire main pump discharge pressure) |
Shock/Vibration Resistance | 100g shock, 20g vibration (20–5000Hz) |
Accuracy | ±0.075%FS (to control pumps and safety interlocks precisely) |
Output Signal | 4–20mA + HART®; Modbus option if integrated with SCADA |
Housing | Cast aluminum alloy; Ex d IIC T6 Gb for hazardous areas |
Ambient & Medium Temperature | -30℃ to 80℃ (ambient), up to 120℃ (medium) |
Protection Level | IP67 for dust and liquid ingress |
Mounting | Secure bracket or pipe clamp to isolate from equipment vibration |
Considerations:
Use shielded cables to reduce EMI from motors/inverters.
Maintain grounding and surge protection for digital communication integrity.
Mount transmitters away from direct equipment heat sources.
3. Municipal Fire Networks: Remote Hydrant Monitoring via HART/Modbus
✅ Application Characteristics:
Fire hydrant and underground valve network pressure monitoring.
Need for remote data acquisition via SCADA, GIS, or utility management systems.
Unattended operation in public or semi-public outdoor locations.
Recommended Transmitter Parameters:
Parameter | Recommendation |
Pressure Range | 0–1.6 MPa or 0–2.5 MPa G (municipal supply lines) |
Output Signal | HART® or Modbus RS485 for remote diagnostics |
Power Supply | 12–32VDC; can be battery-powered or solar-assisted |
Display | Optional; often not required for buried or pole-mounted units |
Protection Level | IP67 minimum; weatherproof and waterproof |
Long-Term Stability | ±0.1%FS/year to minimize recalibration needs |
Ex-Proof Rating | Optional, based on zoning and local codes |
Response Time | Fast data refresh (≤0.5s) for real-time monitoring |
Considerations:
Use watertight junction boxes and gel-filled cable glands for outdoor installations.
Implement secure remote polling intervals (e.g., 5–15 mins) to balance data resolution and power use.
Ensure compatibility with existing city-wide SCADA or telemetry systems.
For firefighting pipe applications, pressure monitoring isn't just a technical requirement—it's a safety imperative. The WTsensor PCM2051-AP/GP monocrystalline silicon pressure transmitter delivers the performance, durability, and digital connectivity required in modern firefighting systems. Whether you're building a new system or upgrading an aging infrastructure, PCM2051 provides confidence and compliance with every drop of water delivered in an emergency.
