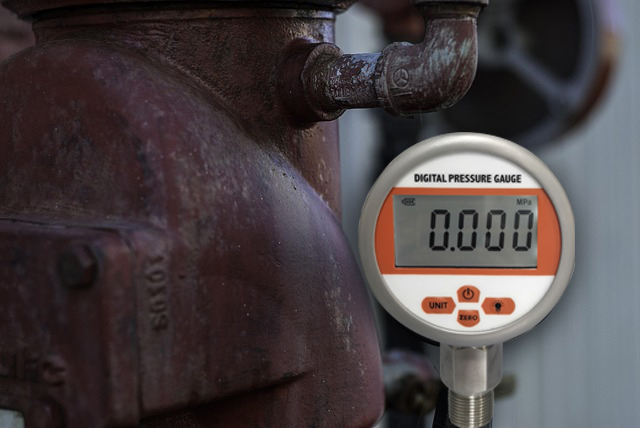

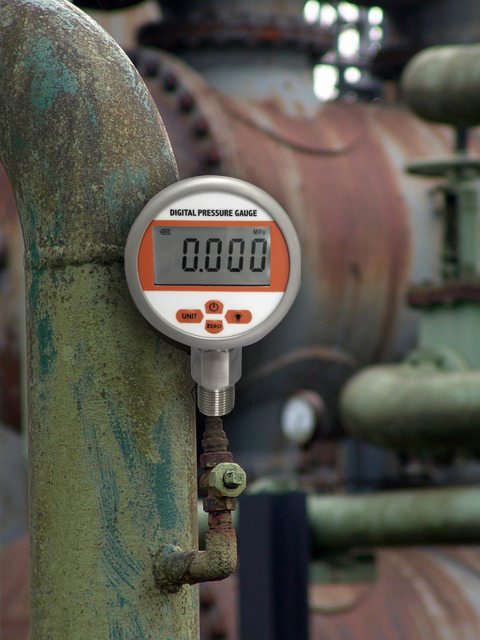

PCM580 Digital Pressure Gauge: Versatile High-Precision Monitoring for Industrial Applications

As industrial systems grow increasingly complex, precise and realtime pressure monitoring has become a critical requirement across sectors such as mechanical engineering, chemical processing, energy generation, and instrumentation calibration. WTsensor’s PCM580 Digital Pressure Gauge meets these demands by integrating cuttingedge microprocessor technology with advanced analogtodigital conversion algorithms. With a rugged stainless steel design, longterm stability, and intuitive interface, the PCM580 offers an optimal solution for a broad spectrum of pressure measurement challenges.

 1. Machinery and Electronics: RealTime Monitoring in Dynamic Systems

In the machinery and electronics sector, maintaining proper pressure levels is crucial to ensure the safety and efficiency of operational systems. Equipment such as hydraulic presses, pneumatic actuators, injection molding machines, and HVAC systems all require accurate pressure feedback to maintain desired performance.

The PCM580 plays a vital role here by:

•  Providing realtime pressure feedback via its highresolution LCD, enabling operators to make timely adjustments.

•  Offering multiple unit selections, making it versatile for international use and standardization across multinational production lines.

• Ensuring high vibration resistance with its 304 stainless steel shell, ideal for machinery with moving parts and fluctuating loads.

The low power consumption of the PCM580 makes it suitable for longterm deployment in these systems, especially in maintenancefree setups.

 2. Industrial Instrumentation Support: Calibration and Test Benches

Accurate calibration is the backbone of industrial instrumentation. Pressure test benches, calibration tools, and verification systems in labs or manufacturing quality control centers require stable, repeatable readings from pressure measurement devices.

The PCM580 provides:

•  ±0.5%FS accuracy with longterm stability of ±0.2%FS/year, ensuring reliability over extended use.

• Sampling frequency of 5 times per second, delivering rapid updates for highspeed calibration systems.

•  Zero clearing and unit switching functions, essential for quick reconfiguration between different test setups.

These features make the PCM580 ideal for technicians conducting crosschecks between different instruments, or for use as a standard reference gauge in mobile calibration kits.

 3. Automation in Mechanical Engineering: Feedback and Control

Automation systems often depend on sensor feedback to operate closedloop control mechanisms. In mechanical engineering automation—like robotic arms, CNC machinery, or fluid control systems—monitoring pressure ensures proper actuator force, fluid flow rate, and system integrity.

The PCM580 supports automation by:

•  Delivering stable analog/digital output that can be interpreted by PLCs or control software for realtime system regulation.

•  Featuring antielectromagnetic interference design, which ensures reliable operation even in highEMI industrial environments.

•  Compact dimensions and easy installation, allowing integration into control panels, pipelines, or valve networks.

 4. Oil and Gas: Safe Monitoring of Pressurized Media

In upstream and downstream oil & gas operations, pressure must be continuously monitored to prevent leaks, blowouts, and inefficient flow. Whether used in pipeline maintenance, valve station monitoring, or portable diagnostics, electronic pressure gauges serve as critical safety devices.

The PCM580 addresses these needs through:

•  Stainless steel 316L isolation diaphragm, which offers excellent resistance to corrosive hydrocarbons and noncorrosive oils.

•  Batterypowered design with up to 12 months of operation—ideal for remote field monitoring where power supplies are unreliable.

•  Overpressure capability of 150%FS, providing robustness against pressure spikes common in oil and gas processes.

Operators can use the gauge as a handheld diagnostic tool or integrate it into portable maintenance kits for rapid field deployment.

 5. Chemical and Fluid Processing: Versatility and Chemical Compatibility

In chemical plants, pressure sensors are used for vessel monitoring, fluid transfer systems, and process control. These environments demand both chemical compatibility and high accuracy due to the reactive and hazardous nature of the media.

The PCM580 serves these facilities by:

 Allowing safe measurement of noncorrosive media compatible with 316L stainless steel, including waterbased solutions, alcohols, and benign solvents.

 Featuring a backlit LCD for clear nighttime or lowlight operation—useful in dark plant rooms or for outdoor processing units.

 Multiple mounting and thread options, enabling fast replacement or retrofit in existing chemical pipelines or batch reactors.

 6. Energy and Utilities: Monitoring Pressure in Renewable and Traditional Systems

Whether in hydropower plants, wind turbine lubrication systems, or traditional steam and gas turbines, pressure measurement is essential for system safety and operational efficiency.

In these applications, the PCM580 can be:

 Integrated into cooling water loops to ensure appropriate flow pressure and system heat dissipation.

 Used to monitor lubrication oil pressure in turbines, ensuring proper equipment functioning and preventing failures.

 Employed in batteryfree solar pressure kits, thanks to its long battery life and autonomous operation.

Its wide operating temperature range (10\~70℃) ensures stable performance in outdoor and thermally varied environments.

 7. Portable Measurement and Field Diagnostics

Engineers and maintenance technicians often need to measure pressure in realtime while on the move. Whether in mobile HVAC maintenance, portable hydraulic systems, or emergency repair units, lightweight, batterypowered, accurate gauges are indispensable.

The PCM580 is optimized for field use with:

 A compact structure and lightweight stainless steel design for easy transport and onhand operation.

 LCD screen with backlight, readable in sunlight or dim conditions.

 Userfriendly interface allowing quick toggling between units, reset to zero, or power management.

Such portability and ease of use make the PCM580 an ideal solution for onsite diagnostics and preventive maintenance.

 8. Water Treatment and Environmental Monitoring

In water supply systems, wastewater treatment plants, and environmental testing stations, pressure gauges monitor pipe pressure, pump performance, and filter integrity.

Here, the PCM580 offers:

 Longterm stability for continuous monitoring without frequent recalibration.

 Sealed gauge pressure and absolute pressure options, allowing flexibility across different water and atmospheric conditions.

 Compatibility with noncorrosive liquids makes it suitable for measuring treated or raw water, brines, and nonaggressive industrial effluents.

WTsensor’s PCM580 Digital Pressure Gauge exemplifies innovation in modern pressure monitoring solutions. From its rugged 304 stainless steel body and highprecision sensor to its intuitive user interface and long battery life, the PCM580 is designed to meet the diverse needs of today’s industries. Whether it's embedded in automation systems, deployed in oil and gas fields, or carried into the field for diagnostics, the PCM580 ensures reliable, accurate, and efficient pressure monitoring.

As industries demand more from their equipment in terms of intelligence, reliability, and flexibility, electronic pressure gauges like the PCM580 represent the perfect balance between precision instrumentation and industrial practicality. WTsensor continues to support global customers by delivering cuttingedge, applicationready sensing technology that ensures operational excellence and safety.
