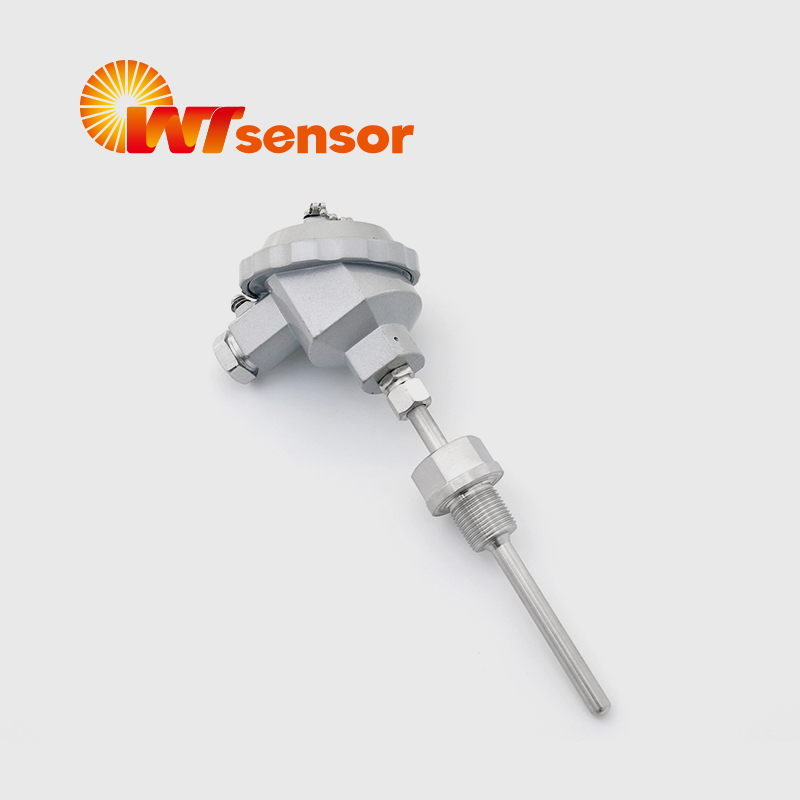

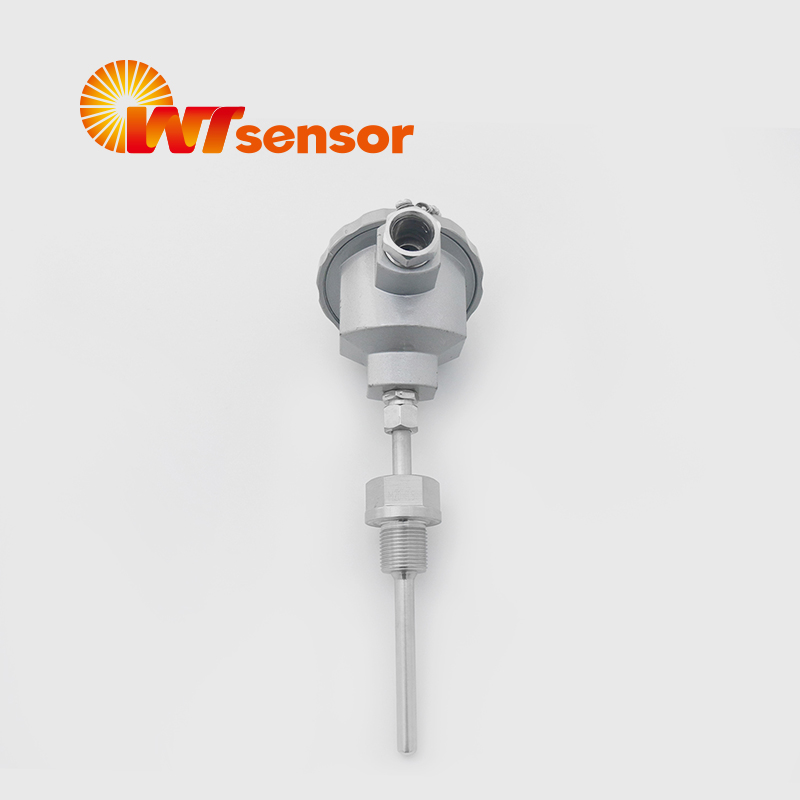

Armored Temperature Sensor PCT120
■ Platinum temperature sensor
■ Vibration resistance, good reliability, high accuracy
■ PT100, (PT1000 selectable)
-50℃- 250℃ explosion proof armored temperature sensor, 6mm 8 mm PT100 PT1000 Platinum temperature sensor
PCT120 explosion proof armored temperature sensor measures range from -50℃ to 250℃ with PT100 PT1000. Insertion length ≥10mm, diameter Φ6mm or Φ8mm. The Platinum temperature sensor is CE certified with thread connection, flange or tri-clamp. China factory OEM and customization available.
-50℃ to 250℃
Resistance value R0 (at 0℃)
Class A: 100±0.06Ω
Allowable deviation value△ ℃
Class A: ±(0.15+0.002|t|)
PT100 | PT1000
Heat response time
Φ6mm | Φ8mm
Long term stability
Exia ⅡC T6
Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the companywill revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors. Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.

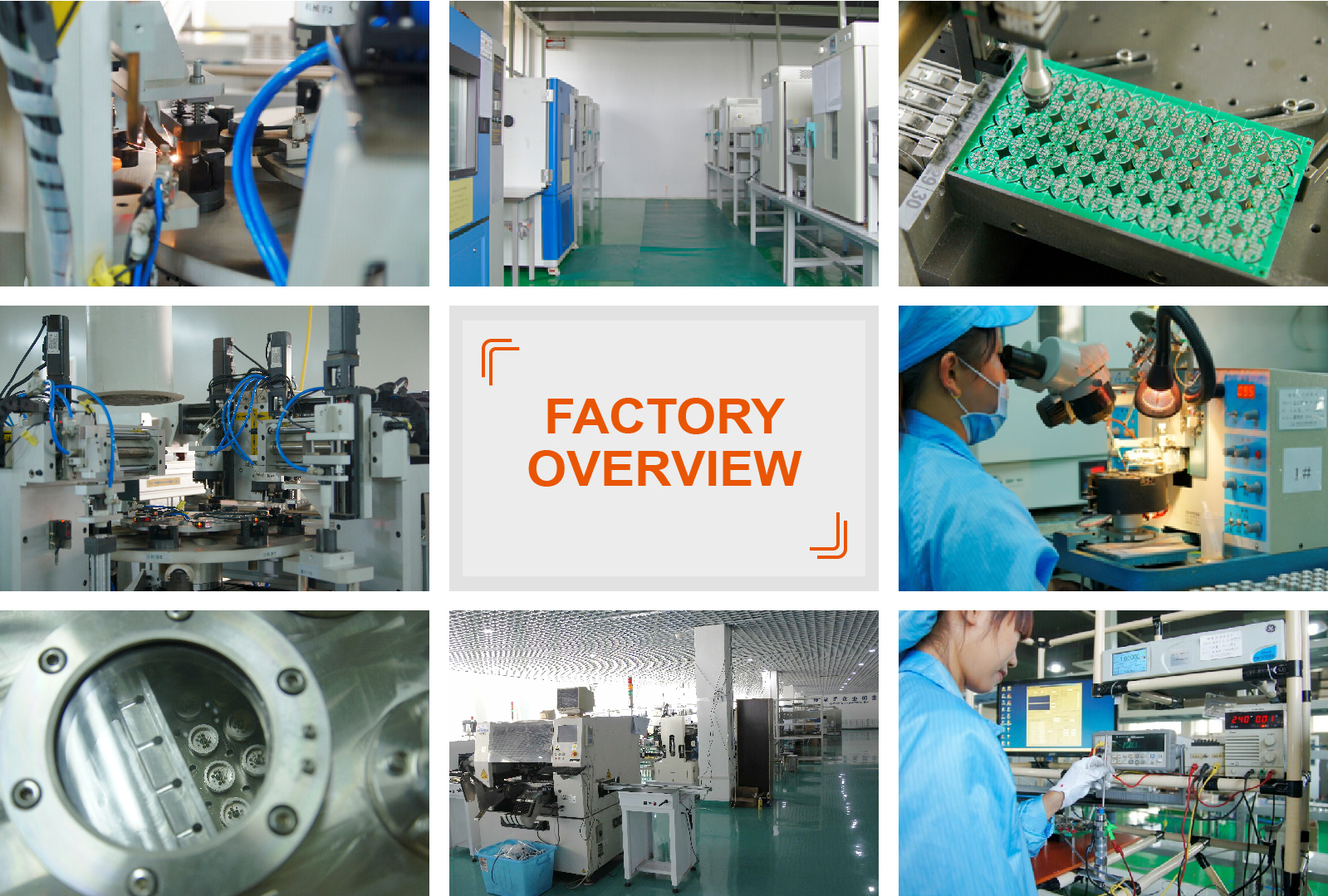

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
