  • Platinum Temperature Sensor PCT130

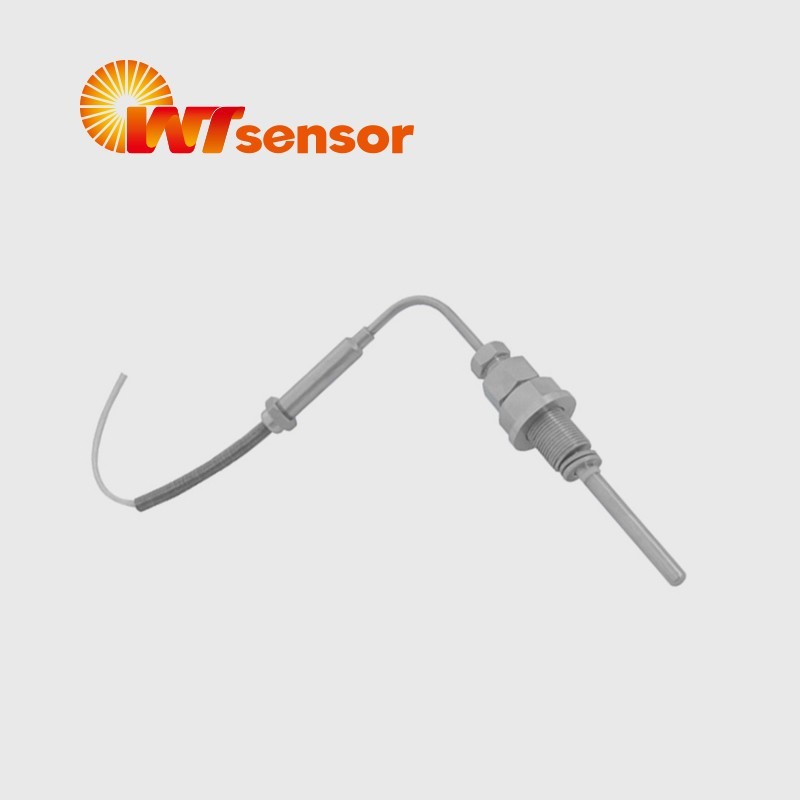

Platinum Temperature Sensor PCT130

Features

■ Platinum temperature sensor

■ Vibration resistance, good reliability, high accuracy

■ PT100, (PT1000 selectable)


China factory 0.25% accuracy temperature sensor, OEM oil water PT100 PT1000 8mm diameter temperature sensor


PCT130 Platinum temperature sensor measures range from -50℃ to 250℃ using PT100 or PT1000. The insertion length is ≥10mm, diameter Φ8mm or customized. The accuracy is ±0.25%F.S. Electrical connection is cable.

Product Parameters

Temperature range

Temperature range

-50to 250

Specification

Accuracy  ( linearity, repeatability and   hysteresis)

±0.25%F.S. (Typical)

Resistance   value R0at 0

Class A:   100±0.06Ω

Allowable deviation value

Class A: ±0.15+0.002|t|

Heat   response time

<30S

Minimum   insertion length

10mm

Insertion   diameter

Φ8mm   (others please specify)

Insulation

100MΩ/100VDC

Current

≤5mA

Protection

IP65

Electrical   connection

Cable


Production process

Platinum Temperature Sensor PCT130


                                                   Testing Equipment


Head mount temperature sensor PCT380Head mount temperature sensor PCT380

Head mount temperature sensor PCT380Head mount temperature sensor PCT380

Certificate

Platinum Temperature Sensor PCT130

Company profile

PCM580 Digital Pressure Gauge (Φ80mm)

Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors.  Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.



Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
