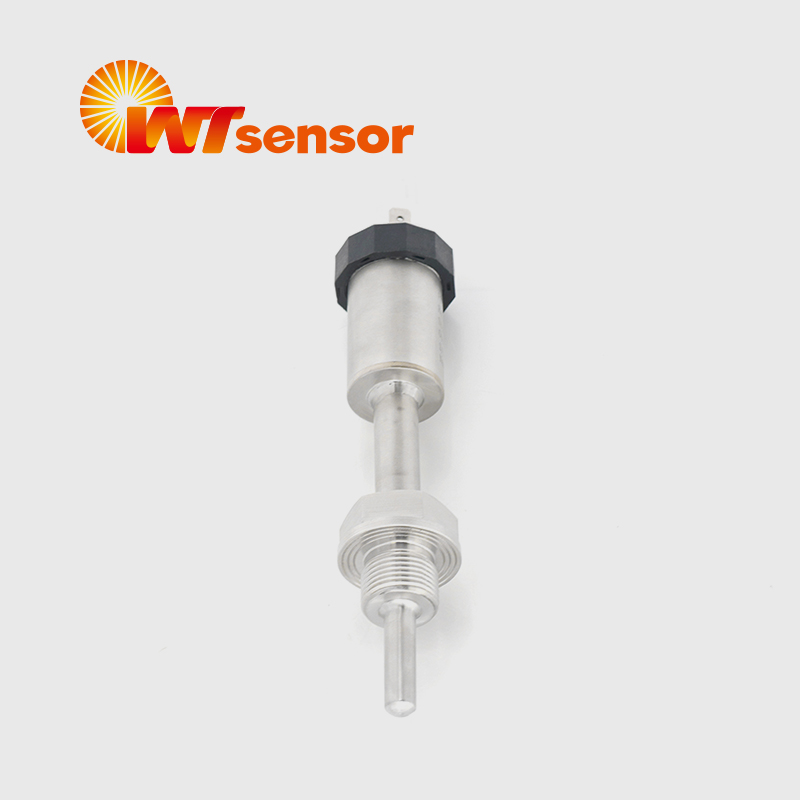

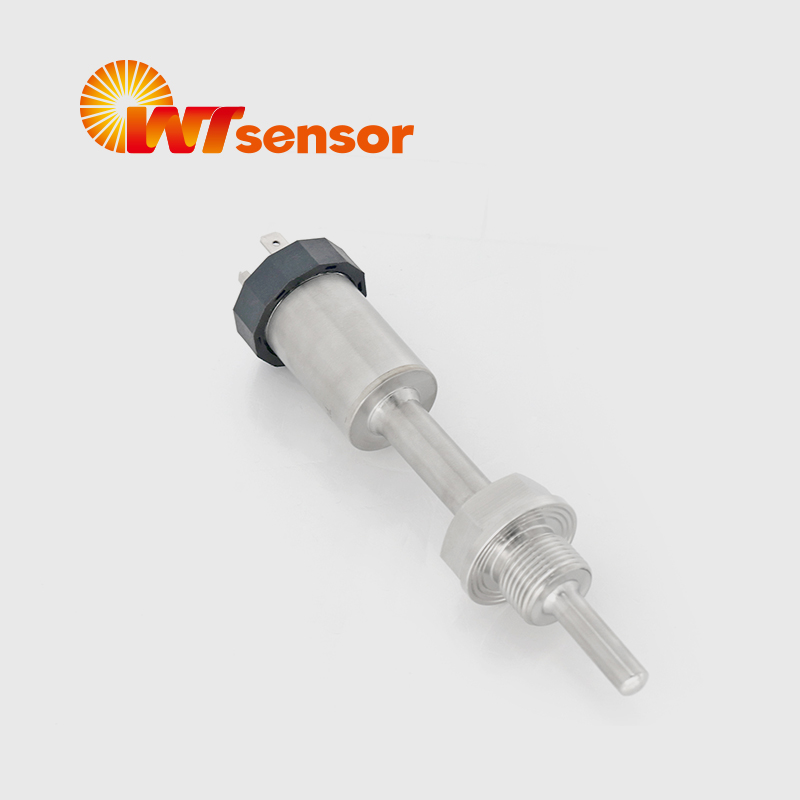

Movable Connector Temperature Sesnor PCT202
Features
■ Movable connector, easy to install
■ High strength, high pressure resistance
■ Integrated structure
■ Long-term stable work
■ Fast response
■ Reliable structure
Applications
■ Equipment support
■ Automatic temperature measurement and control systems such as pumps, compressors, natural gas pipelines, etc.
■ Temperature measurement of water or oil in petroleum, chemical, electric power, textile, and environmental protection fields, etc.
4~20mA DIN43650 Pt100 temperature transmitter with display, China OEM water oil natural gas temperature sensor
PCT202 platinum temperature transmitter with movable connector measures temperature range from -50℃~250℃ using Pt100 sensing element. Output is 4-20mA with DIN43650 or cable connection. It is used in petroleum machinery, chemical machinery, pumps and compressors, electric power, boilers, etc.
Product Parameters
Performance parameters | |||
Temperature range | -50℃~250℃ | ||
Supply & output | 4~20mA(16~36VDC) | ||
Accuracy | ±0.5%FS(typ.) | ||
Sensing element | Pt100 Grade A | ||
Performance parameters (cont.) | |||
Insulation strength | 100MΩ/250VDC | ||
Response time | ≤30s | ||
Long term stability | ≤0.2%FS/year | ||
Insertion diameter | Φ8mm | ||
Storage temp. | -40℃~85℃ | ||
Electrical connection | DIN43650, DIN43650 with cable | ||
Protection | IP65 | ||
Material | 304 | ||
Max. mounting torque | 25Nm | ||

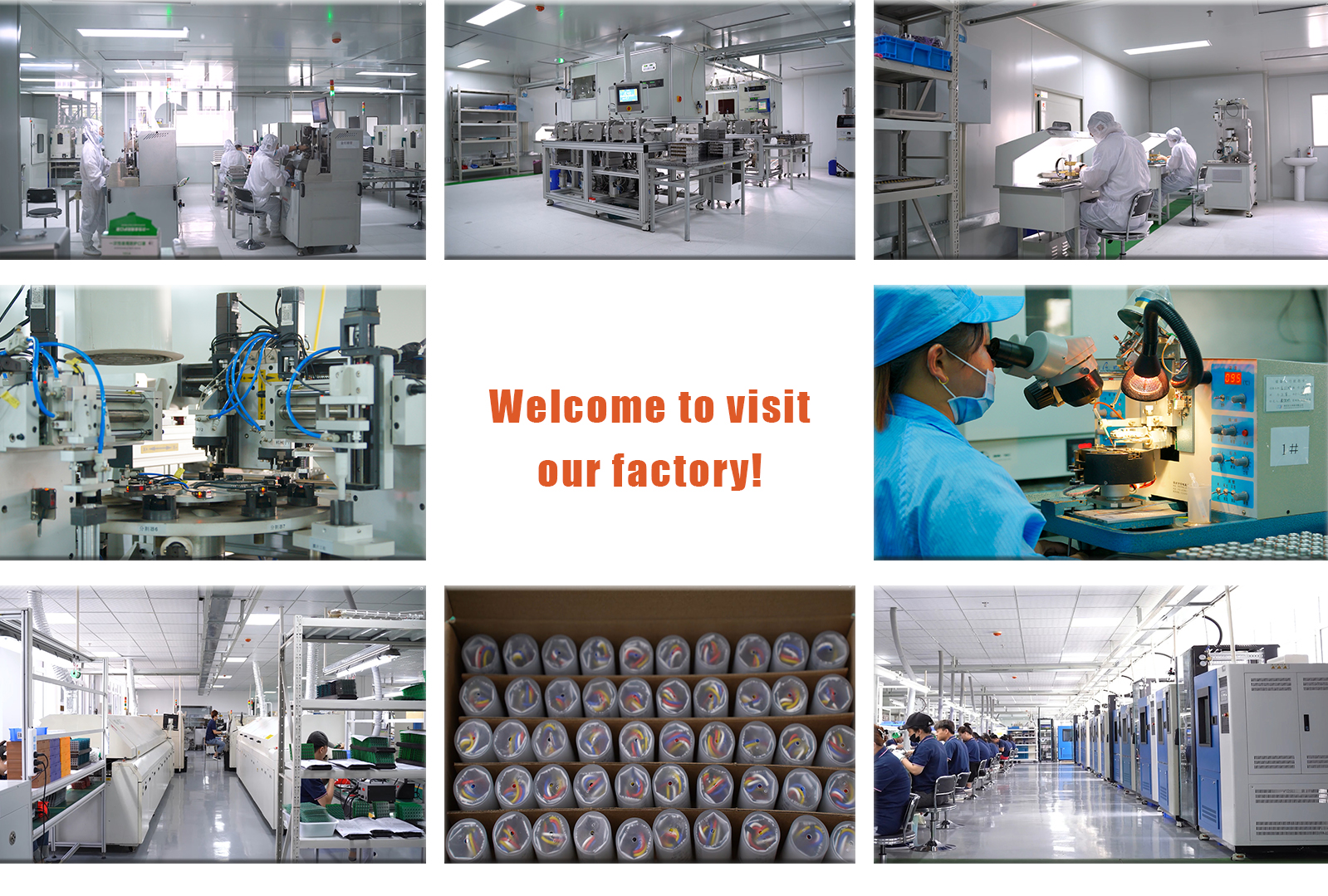

Production process
Testing Equipment
Certificate
Company profile
Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors. Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
