  • Head mount temperature sensor PCT380

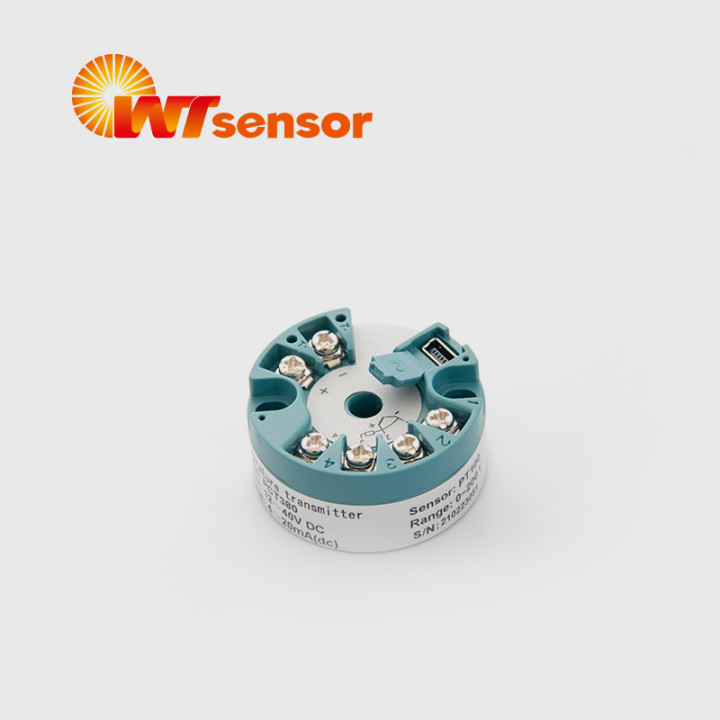

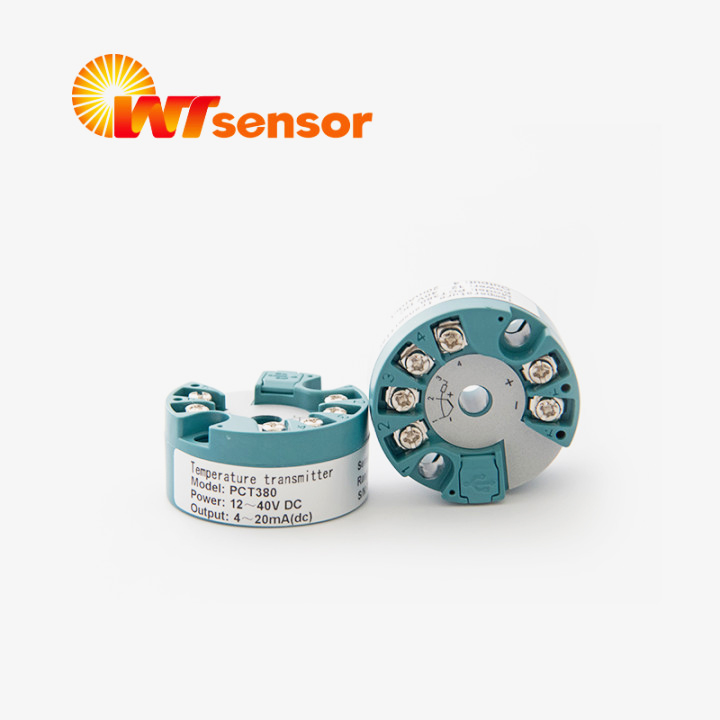

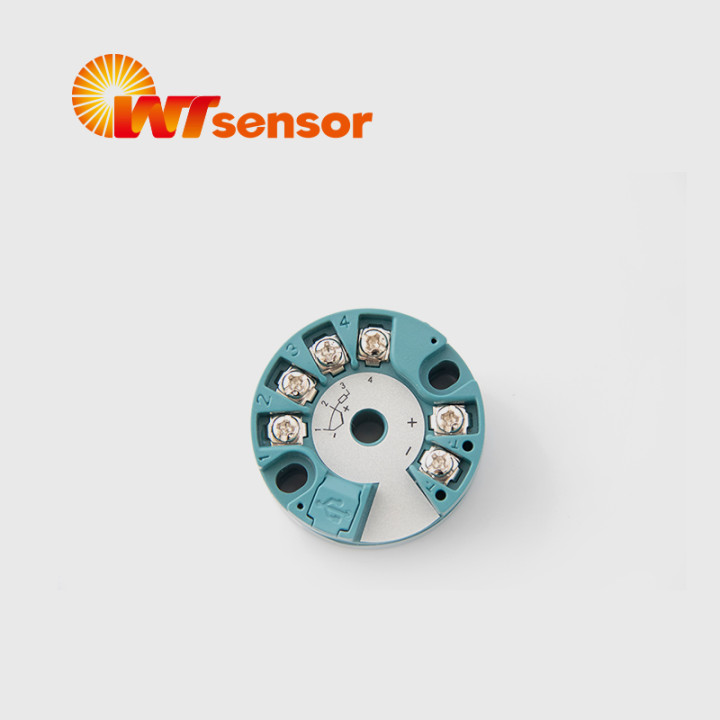

Head mount temperature sensor PCT380

Features

■ Can convert all inputs to 4-20 mA

■ Input: thermocouples, RTD, resistance or voltage

■ Configuration directly via PDA or PC

■ Build-in cold junction compensation

■ Available with screw-in temperature probe


4-20 mA 1-5V smart temperature transmitter module, 0.1% accuracy head mount temperature transmitter with hart


PCT380 smart intelligent head mount temperature transmitter module or temperature sensor has inputs of thermocouples, RTD, resistance or voltage, and output 4-20mA or 1-5V customized. Configuration is directly via PDA or PC, available with screw-in temperature probe. Accuracy is ≤0.1%F.S.

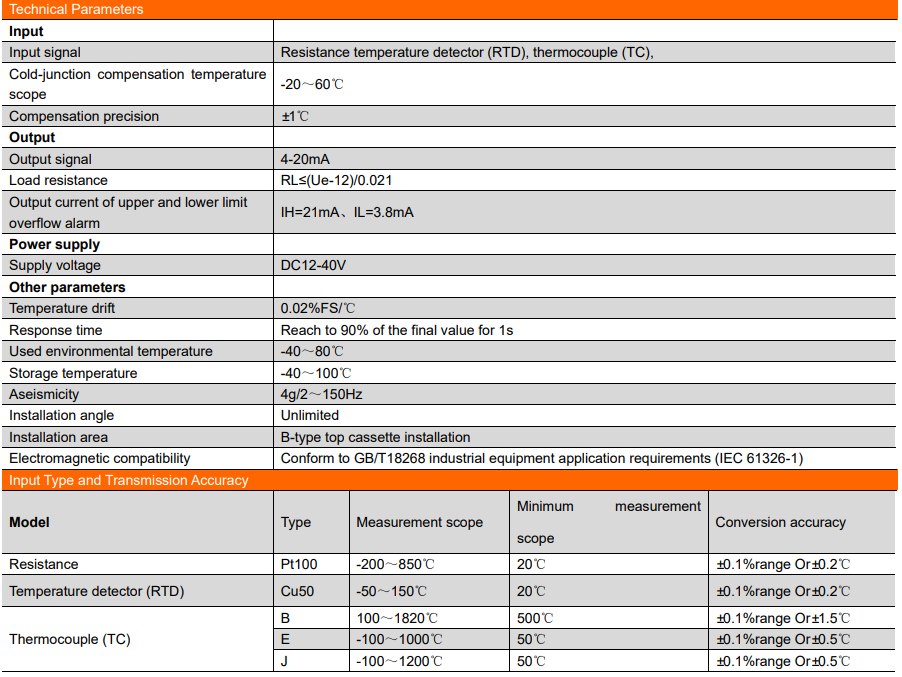

Product Parameters

Main parameters

Accuracy

≤0.1%F.S.


Power supply

12-40V


Signal input

RTD TC resistance mV


Signal output

4-20mA | 1-5V(customized)


Digital communication

Hart protocol


Response time

≤1s


Operating temp.

-40ºC-85ºC


Ingress   protection

4g^2-150Hz


Cold junction compensation

Build-in


Configuration

PAD or PC


RTD temperature probes


Description

Measuring range

Minimum measuring range

Connection type


PT100

-200

850

10K

Three-wire


Cu50

-50

150

10K

Three-wire


Thermocouples


Description

Measuring range

Minimum measuring range

Connection type


B

400

1820

500K

Two-wire


E

-100

1000

50K

Two-wire


J

-100

1200

50K

Two-wire


K

-180

1372

50K

Two-wire


N

-180

1300

50K

Two-wire


R

-50

1760

500K

Two-wire


S

-500

1760

500K

Two-wire


T

-200

400

50K

Two-wire


RTD temperature probes


Description

Measuring range Ω

Minimum measuring range

Connection type


Resistance   transmitter

0

4500

500K

Two-wire
