  • PCT130 Temperature Sensor

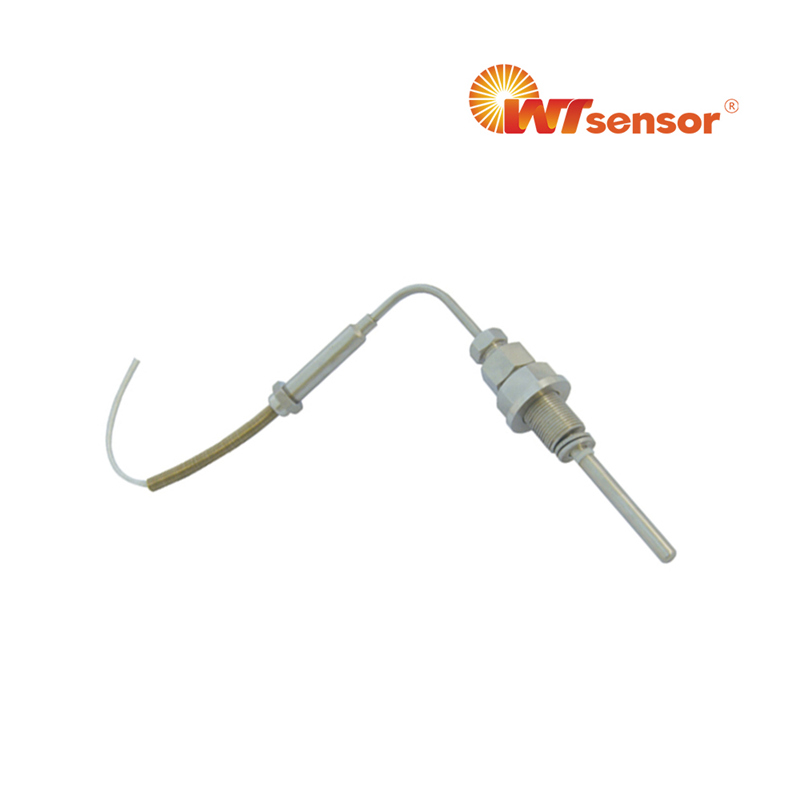

PCT130 Temperature Sensor

Features

■ Platinum temperature sensor

■ Vibration resistance, good reliability, high accuracy

■ PT100, (PT1000 selectable)


China factory 0.25% accuracy temperature sensor, OEM oil water PT100 PT1000 8mm diameter temperature sensor


PCT130 Platinum temperature sensor measures range from -50℃ to 250℃ using PT100 or PT1000. The insertion length is ≥10mm, diameter Φ8mm or customized. The accuracy is ±0.25%F.S. Electrical connection is cable.

Product Parameters

Temperature range

Temperature range

-50to 250

Specification

Accuracy  ( linearity, repeatability and   hysteresis)

±0.25%F.S. (Typical)

Resistance   value R0at 0

Class A:   100±0.06Ω

Allowable deviation value

Class A: ±0.15+0.002|t|

Heat   response time

<30S

Minimum   insertion length

10mm

Insertion   diameter

Φ8mm   (others please specify)

Insulation

100MΩ/100VDC

Current

≤5mA

Protection

IP65

Electrical   connection

Cable
