You are here: WT Home > Products > PH Meter & Conductivity Meter

  • PH Online Analyzer PCPH01

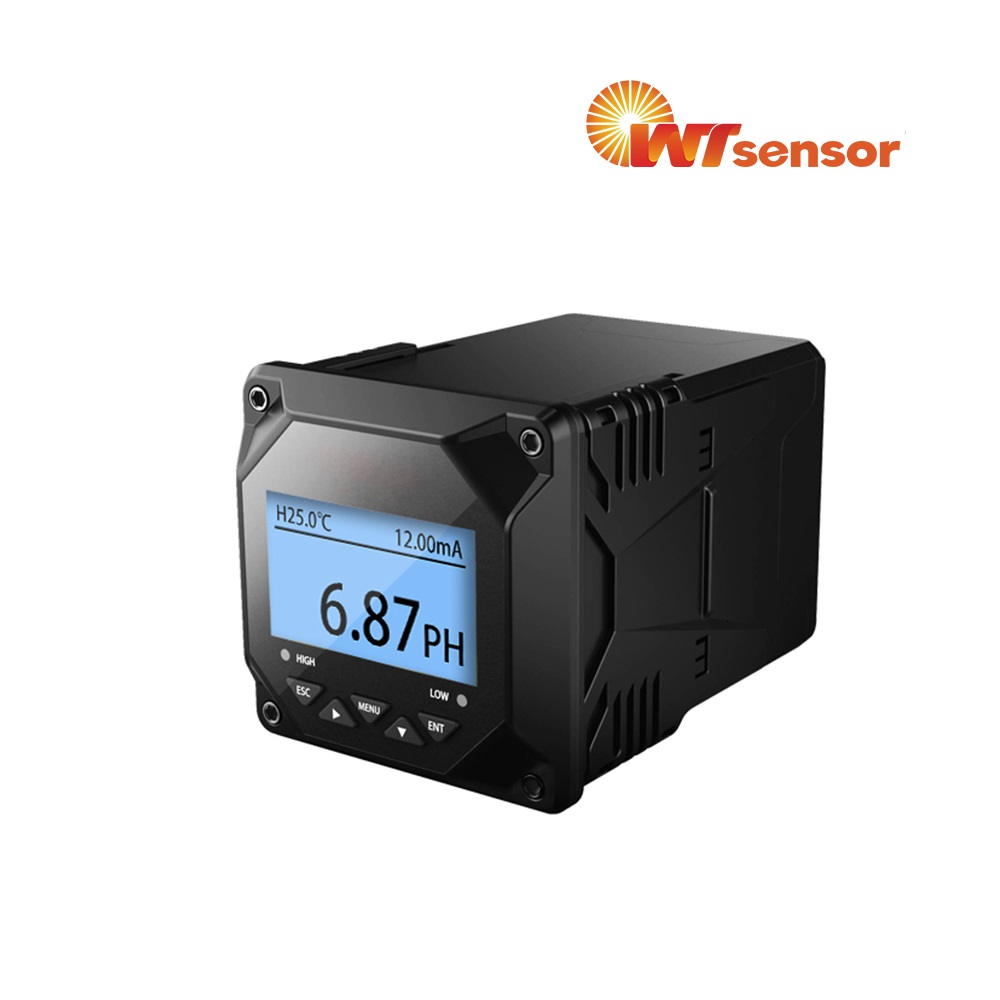

PH Online Analyzer PCPH01

l Design of board card modularity, for convenience of

assembly and configuration.

l 2.4 inches 12864 lattice screen.

l Isolating transmitting output, with little interference.

l Isolating RS485 communication.

l Can be PH / ORP measurement, temperature measurement,

l upper and lower limit control, transmission output, RS485

communication.

l Configurable manual and auto temperature offset function.

l Configurable upper/lower limit warning and delay.

l Configurable hummer and LCD backlight switch.

l Addition of universal password.

        Industrial controlled door keep, to avoid instrument  halted.

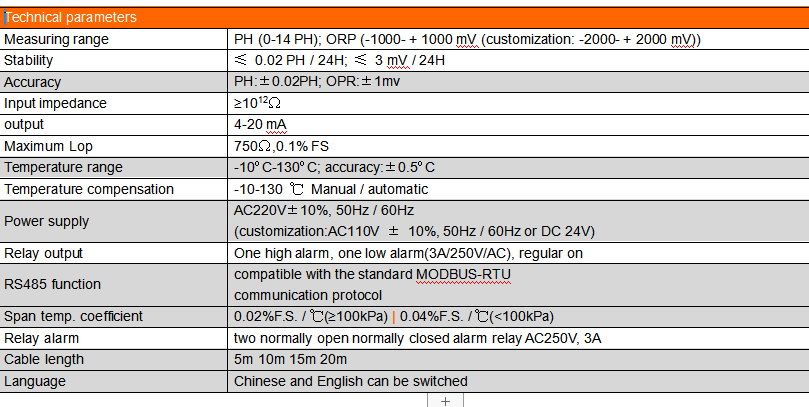

Product Parameters


Production process

PCPH01 PH Online Analyzer


                                          Testing Equipment


PCDO20 Digital Analyzer MonitorPCDO20 Digital Analyzer Monitor

Certificate

PCPH01 PH Online Analyzer

Company profile

PCM580 Digital Pressure Gauge (Φ80mm)

Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors.  Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.


Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
