For Temperature Sensors, What PT100 and PT1000 Stand for

PT100
Pt100 is the platinum thermistor, and its resistance value will change with the temperature change. The "100" next to PT indicates that its resistance value at 0℃ is 100 Ω, and its resistance value at 100℃ is about 138.5Ω.


Due to the change relations between the temperature and the resistance value of the PT100 thermal resistance, our people have taken advantage of such characteristic of it, invented and produced PT100 thermal resistance temperature sensor. The temperature collection range can be -200℃~+850℃.


Indexing table


-50℃    80.31Ω

-40℃     84.27Ω

-30℃     88.22Ω

-20℃     92.16Ω

-10℃     96.09Ω

0℃     100.00Ω

10℃     103.90Ω

20℃     107.79Ω

30℃     111.67Ω

40℃     115.54Ω

50℃     119.40Ω

60℃     123.24Ω

70℃     127.08Ω

80℃     130.90Ω

90℃     134.71Ω

100℃    138.51Ω

110℃    142.29Ω

120℃    146.07Ω

130℃    149.83Ω

140℃    153.58Ω

150℃    157.33Ω

160℃    161.05Ω

170℃    164.77Ω

180℃    168.48Ω

190℃    172.17Ω

200℃    175.86Ω

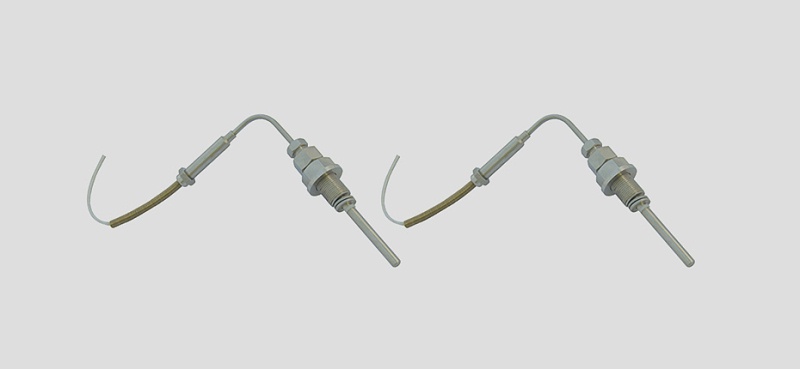

For Temperature Sensors, What PT100 and PT1000 Stand for


PT1000


Pt1000 is the platinum thermistor, and its resistance value is proportional to the temperature change; the change relations between the resistance value and the temperature of PT1000: When the temperature of PT1000 is 0℃, its resistance value is 1000Ω, and when the temperature is 100℃, its resistance value is about 1385.005Ω. Its industrial principle: The resistance value will increase at a constant speed as the temperature goes up.


Differences between PT100 and PT1000


1. The resistance difference at 0℃: 100Ω for PT100, while 1000Ω for PT1000;

2. The temperature range difference: -200~850℃ for PT100, while -50~300℃ for PT1000;

3. The indexing number of PT1000 is 10 times bigger than that of PT100, and the measurement accuracy is higher;

(The source of the data is the network; if there is any right infringement, please contact our editor, and our editor will delete it timely.)
