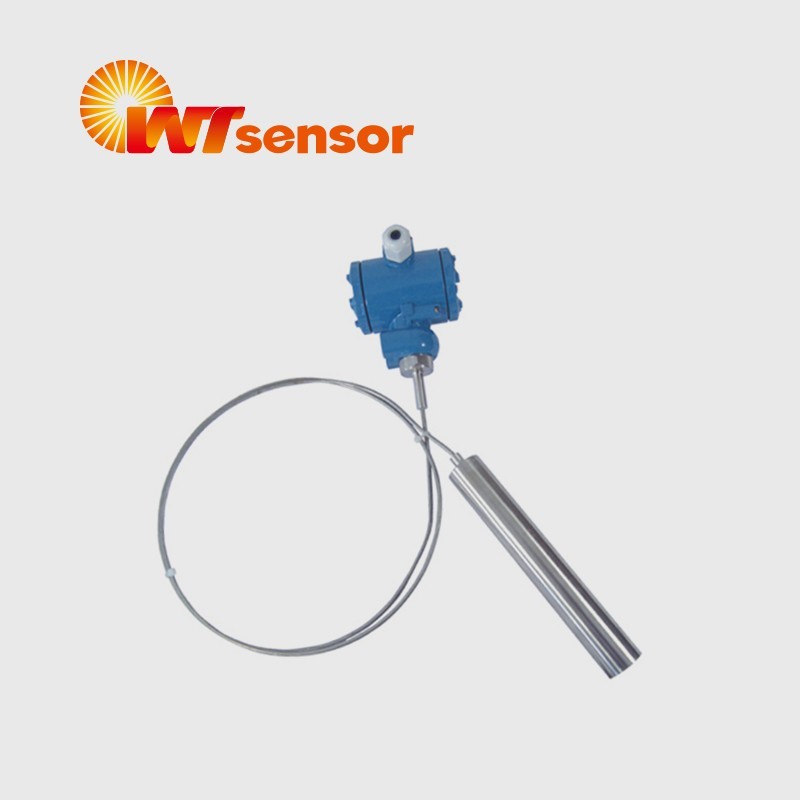

PCM262 Air Collector Type Level Sensor

l  Piezoresistive silicon chip employed

l  MEMS technology

l  Excellent long term stability

l  Hart protocol selectable

l  CE certificate


Typical Application

Depth and level measurement in

l  Wells

l  Reservoirs

l  Lakes

l  Rivers

l  Sewage treatment plant

l  Water tank

l  Ground water monitoring

l  Surface water monitoring

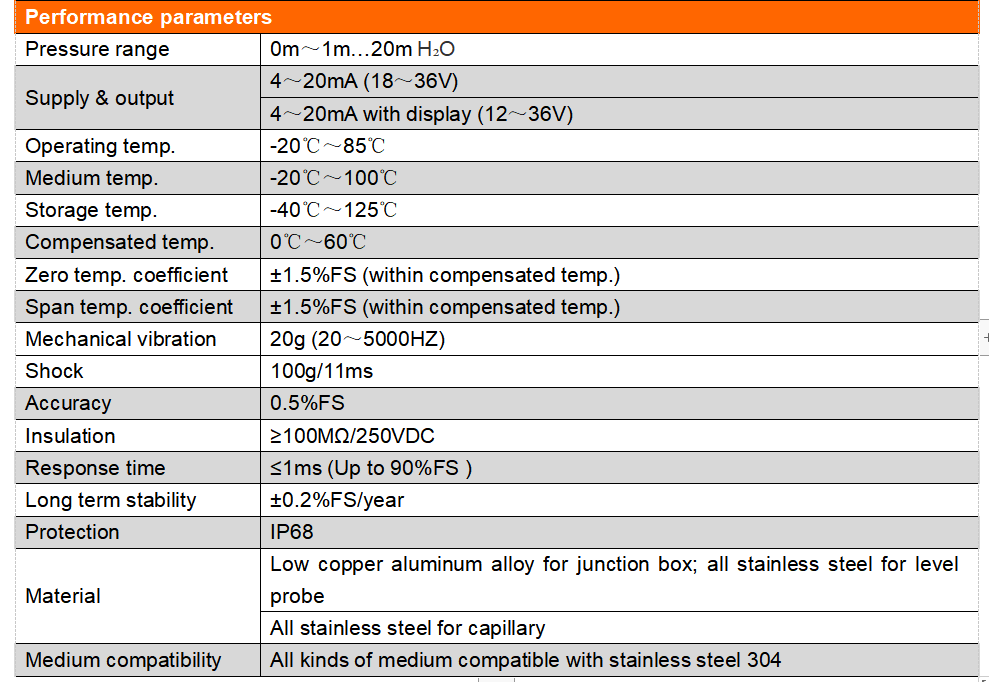

Product Parameters

PCM262 Air Collector Type Level Sensor

Production process

None

Certificate

None

Company profile

None

Company advantage

Mass production

We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.

Imported equipments

We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.

Informatization management

We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.

Comprehensive testing

We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
