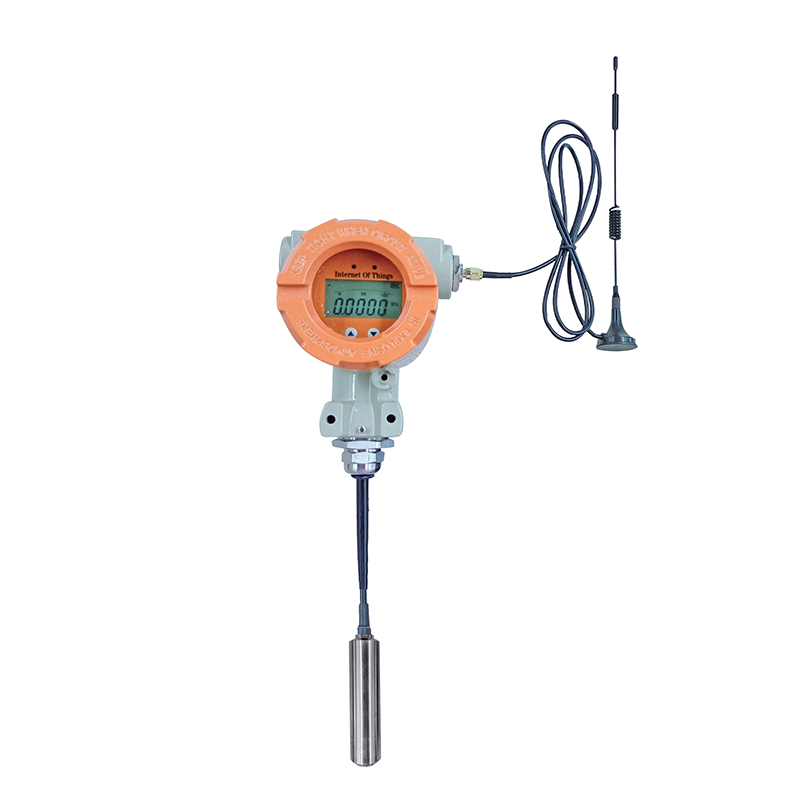

PCM9880L Throw-in Type Wireless Level Transmitter
Product overview
PCM9880L Throw-in Type Wireless Level Transmitter is a product specially desiged by Wotian Technology for liquid level monitoring, such as pool and deep well. This product has an IP68 sensor protection grade, and can be directly immersed in the measured liquid, supporting pipe type installation or throw-in type installation, small in size, light in weight, easy to install, use and maintain, suitable for some severe environments.
This product adopts 38Ah large capacity lithium sub-battery for power supply, and supports all kinds of IoT systems, including NB-IoT, LoraWAN, 4G etc.; it has wide application fields, such as outdoors or occasions without convenient supporting power supply environments, for example liquid level monitoring for fire protection, municipal administration, water affairs and other occasions; it sends the liquid level status of the monitoring points to the monitoring center through IoT periodically or in real time; then, the monitoring center stores, analyzes, searches the data and processes the alarm information, realizing wireless signal transmission and information interaction without on-site wiring, saving a lot of human and material resources, and significantly reducing construction costs and later maintenance costs, which helps users achieve timely and efficient supervision on the liquid levels at the pipe network monitoring points.
Key features and user value
■ Supporting NB-IoT/4G/LoRaWAN wireless communication system, suitable for various scenarios
■ Supporting keypad, local and remote parameter setting, supporting the magnetic bar wake-up function; convenient daily use and maintenance
■ Strong anti-vibration, anti-shock, anti-interference hardware structure; built-in watchdog and non-crash software; high reliability and good repeatability equipment
■ Real-time active report on alarm information such as abnormal fluctuation and exceeded threshold value of monitoring point liquid level
■ Optimized ultra-low power consumption design; reducing battery replacement frequency and significantly lowering user maintenance costs
■ Accessible to the third-party monitoring platform; supporting Telecom AEP platform, Alibaba Cloud platform and customer private platforms
Typical application industries
■ Fire protection, municipal administration, water affairs, environmental protection and other industries
Product Parameters
Performance parameters | |
Pressure range | |
Liquid level type | Medium level at atmospheric pressure |
Supply & output | Power supply: lithium sub-battery (38Ah) or solar energy |
Output: NB-IoT/4G/LoRaWAN | |
Operating temp. | -20℃～70℃ (The low temperature below zero has great influence on the performance of lithium sub - battery.) |
Medium temp. | -20ºC~85ºC |
Storage temp. | -40℃～125℃ |
Zero temp. coefficient | ±1.5%FS (-20℃～85℃) |
Sensitivity temp. coefficient | ±1.5%FS (-20℃～85℃) |
Overpressure | 150%FS |
Mechanical vibration | 20g (20~5000Hz) |
Shock | 100g (11ms) |
Comprehensive accuracy | ±0.5%FS |
Operation mode | Regular active report; the reporting cycle can be set at will |
Automatic detection | Built-in monitoring module to monitor the operation of equipment |
Parameter setting | Remote setting, which allows to set reporting cycle and threshold alert |
Sampling accuracy | 24bit |
Long-term stability | ±0.2%FS/year |
Protection grade | Gauge head part: IP66/67; throw-in type sensor part: IP68 |
Material | Housing: stainless steel; internal sensor: 316L |
Medium compatibility | All kinds of media compatible with SS316L |
ESD | Meeting GB/T 17626.2 Chapter 5 Severity Level: Level 4 |
RFEMS | Meeting GB/T17626.3 Chapter 5 Severity Level: Level 3 |
PFMF | Meeting GB/T17626.4 Chapter 5 Severity Level: Level 5 |
