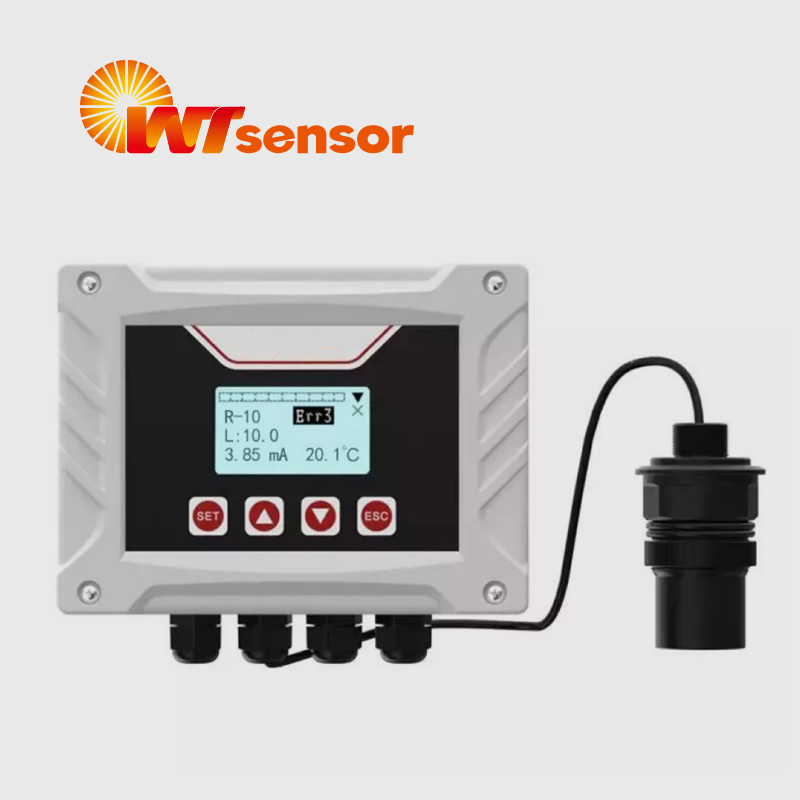

Ultrasonic level transmitter PCU03

Features

 Simple operation

 Remote type with touch buttons improves the quality of human-computer interaction

 Fault self-diagnosis technology, realize real-time fault self-diagnosis

 A variety of working conditions algorithm selection, improve environmental adaptability

 High measurement resolution

 Fast response, the fastest response time:2 seconds

 Automatic temperature compensation



 Applications

 Fire water tank

 Deep well water level

   ■ River reservoir

   ■ Engineering pool

    Sewage/waste water

    Chemical material


Product Parameters

Performance parameters

Product

5m,10mOptional

Model

≤0.35m

Measure range

8°(range 5m),10°(range 10m)

0.5%F.S

Blind zone

OLED

Accuracy

1mm or 0.1%FS

Display

14~28VDC

Output (optional)

5W

Measuring variable

5m,10mOptional

Power supply

4~20mA RL>500Ωstandard

RS485

2 relays (AC: 3A 250V )

Temperature range

-20~60℃

Humidity range

-20~70℃

Ingress protection

(10~85)% (no condensation)

Cable

Back light, dot matrix
