PCM262 Submersible Level Transmitter
Features
■ Piezoresistive silicon chip employed
■ MEMS technology
■ Excellent long term stability
■ Hart protocol selectable
■ CE certificate
Applications
■ Reservoirs
■ Liquid tanks
■ Sewage treatment plant
■ Industrial water
■ Wells
■ Rivers
■ Lakes
■ Ground water monitoring
■ Surface water monitoring

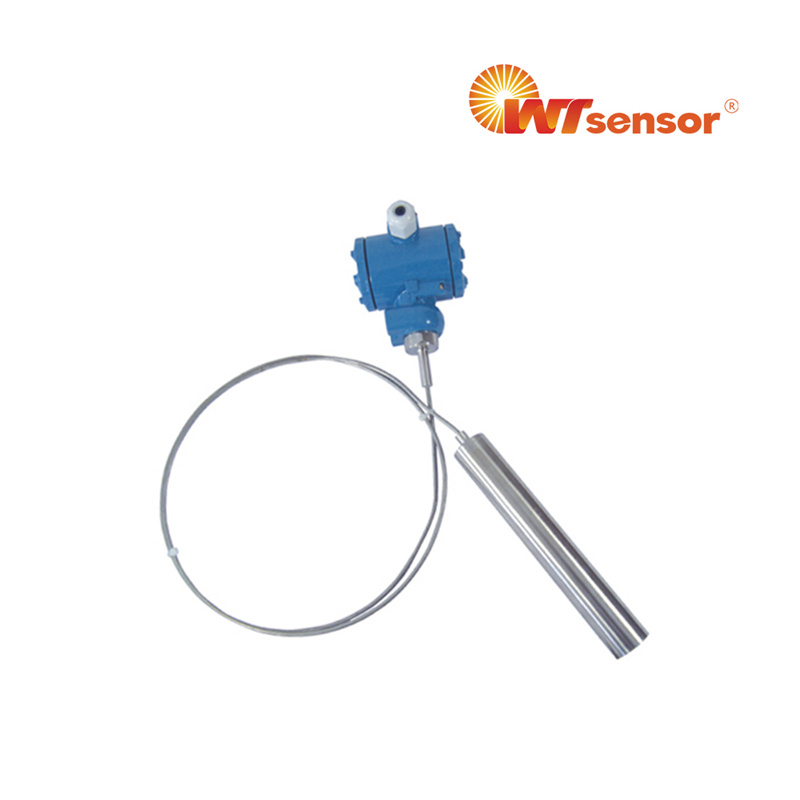

PCM262 submersible piezoresistive silicon level transmitter, water tank liquid level sensor with LCD display
PCM262 submersible piezoresistive diffused silicon level transmitter (level sensor) has aluminium housing with LCD display and hart option, 4-20mA output. It is China factory made with CE, applicable to level measurement of water, liquid, oil, sewage, wells, rivers, lakes, water tank, water column.
Product Parameters
Pressure range | |
Pressure range | 0.5m, 1m, 2m, 5m, 10m, 20m H2O |
Output signal | |
Output | 4 to 20mA |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. (Typical) |
Overpressure | 150%F.S. |
Supply | 24VDC |
Compensated temp. | -10ºC -70 ºC (Typical) | 0ºC -60 ºC (<10mH2O) |
Operating temp. | -20ºC -85ºC |
Medium temp. | -20ºC -100ºC |
Storage temp. | -40ºC -125 ºC |
Zero temp. coefficient | ≤±0.03%F.S./ ºC |
Span temp. coefficient | ≤±0.03%F.S./ ºC |
Long term stability | ≤0.2%F.S.S./year |
Probe housing material | Stainless steel 304, 316L |
Sensor material | Stainless steel 316L |
Protection | IP68 |
Weight | 250g(approx) |
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
