  • PCM260 Pressure/Level Transmitter

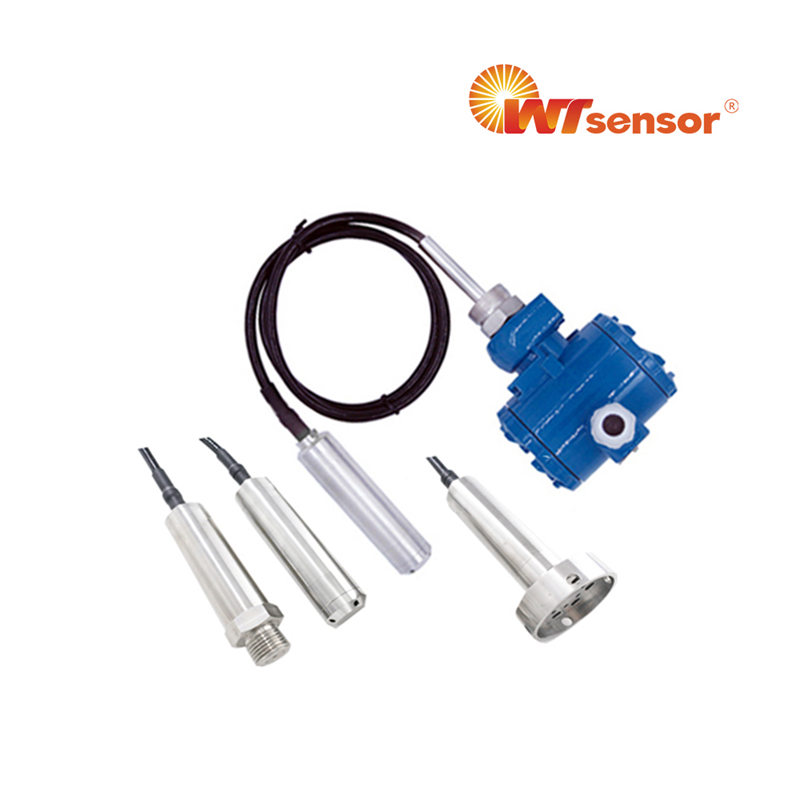

PCM260 Pressure/Level Transmitter

Features

■ Piezoresistive diffused silicon pressure sensor

■ Probe insertion measurement method, easy to install

■ For level measurement

■ Multiple protective structure design, high protection ability

■ LCD option

■ Variety of styles, suitable for various industrial applications

■ Anti-corrosion stainless steel material adopted, suitable for many occasions


Applications

■ Static pressure level

■ Liquid tanks

■ Sewage

■ Industrial water

■ Pools

■ Wells

■ Rivers

■ Seawater

■ Lakes


PCM260 submersible piezoresistive silicon level transmitter, water liquid oil level sensor, 4-20mA level sensor


PCM260 submersible piezoresistive diffused silicon pressure level transmitter or level sensor is China factory made, CE certified, with 4-20mA and display option. It is applicable to level measurement of liquid tanks, sewage, industrial and urban water, pools, wells, rivers, seawater, lakes, etc.


Product Parameters

Performance   parameters


Pressure   range

0~0.5m…20mH2O



Supply & output

4~20mA (18~36V, 24V typical)



4~20mA with display (12~36V, 24V   typical)



1~5V, 0~5V, 0.5~4.5V, 0~10V (12~32V, 24V typical)



Operating   temp.

-20~85



Medium temp.

-10~70



Storage temp.

-40~125



Compensated temp.

0m~10mHO: 0~60



10m~200mHO: -10~70



Zero temp. coefficient

±1.5%FS (within compensated temp.)



Span temp. coefficient

±1.5%FS (within compensated temp.)



Overpressure

200%FS~300%FS



Mechanical vibration

20g (20~5000HZ)



Shock

100g (11ms)



Accuracy

0.5%FS



Insulation

100MΩ/250VDC



Response time

≤1ms (Up to 90%FS)



Long term stability

±0.2%FS/year



Protection

IP68



Material

Low copper aluminum alloy for   junction box; stainless steel for level probe



Polyurethane   wire for cable



Medium   compatibility

All kinds of media compatible with   stainless steel 304
