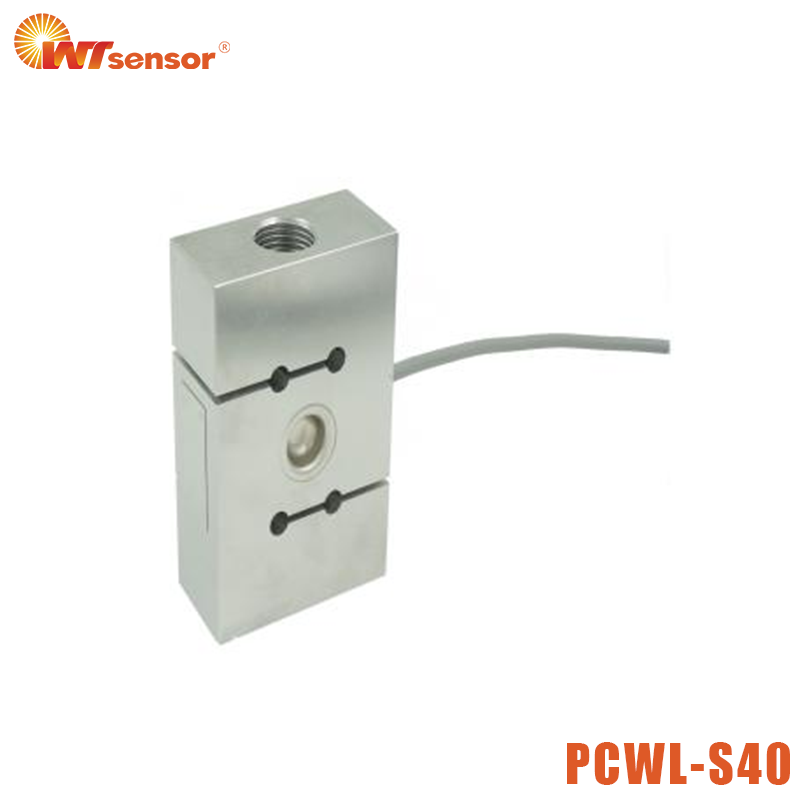

Load Cell PCWL-S40

Features

Low height and small deformation

High protection level (IP68)

Stainless steel material

Two way tension and compression



Applications

Can be used in harsh environments, moisture-proof and waterproof

Pushing and pulling force gauges, hopper scales, various industrial weighing and force measurement systems, etc
.


Product Parameters

Parameter performance

Specification

Capacity

50,100,200,500,1000,2000,3000,5000kg

Output sensitivity

2.0±0.25%m/V

Zero output

0.01mV/V

Non-linearity

0.018%F.S.

Hysteresis

±0.018% F.S.

Repeatability

0.018%F.S.

Creepage (30min)

0.024%F.S.

Temp. sensitivity drift

0.014%F.S./10℃

Zero temp. drift

0.017%F.S./10℃

Input impedance

350±5Ω

Output impedance

350±5Ω

Insulation

≥5000MΩ/100VDC

Excitation

5~15V

Maximum excitation

20V

Compensated temp. range

-10~40℃

Operation temp. range

-30~70℃

Safe over-load

150%F.S.

Ultimate over-load

300%F.S.

Cable size

Φ5.4×3000mm
