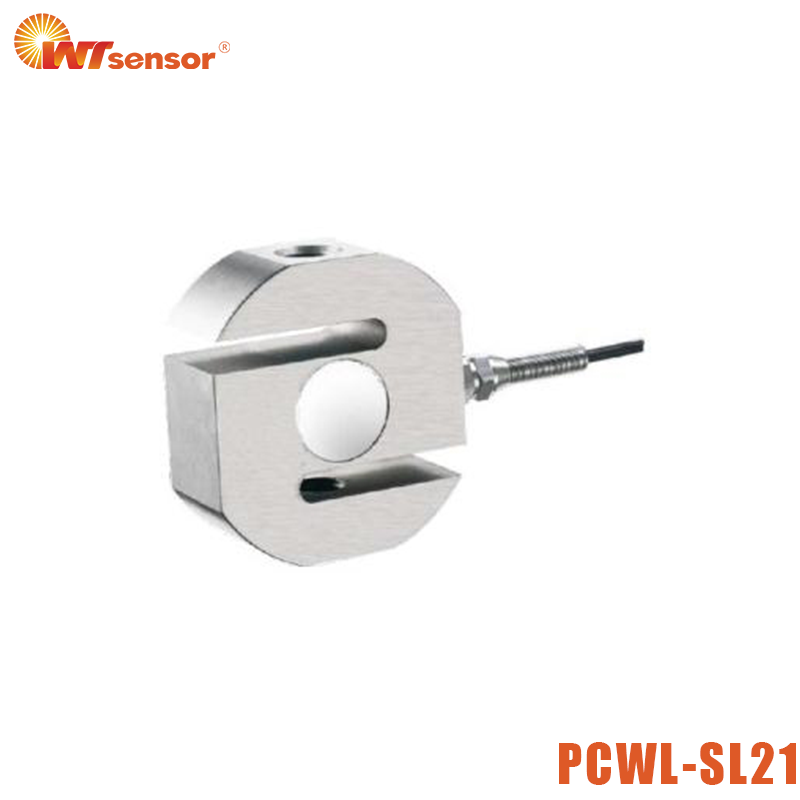

Load Cell PCWL-SL21


Features

Low height, small deformation, high protection level (IP68)

Stainless steel material, suitable for harsh environments,

moisture-proof and waterproof

Tension and compression in both directions



Application

Mainly applied in push-pull force gauges, hopper scales, various industrial weighing and force measurement systems, etc


Product Parameters

Parameter performance

Specification

Capacity

50,100,200,500,1000,2000, 3000,5000,7500kg

Output sensitivity

2.0±0.25%mV/V

Zero point output

0.01mV/

Non-linearity

0.018%F.S.

Hysteresis

±0.018% F.S.

Repeatability

0.018%F.S.

Creepage(30min)

0.024%F.S.

Temp. sensitivity drift

0.014%F.S./10℃

Zero temp. drift

0.017%F.S./10℃

Input impedance

350±5Q

Output impedance

350±5Ω

Insulation

≥5000MΩ/100VDC

Excitation Voltage

5~15

Maximum excitation Voltage

20V

Compensated temp range

-10~40℃

Operating temp. range

-30~70℃

Safe overload

150%F.S

Ultimate overload

300%F.S.

Cable size

25.4×3000mm
