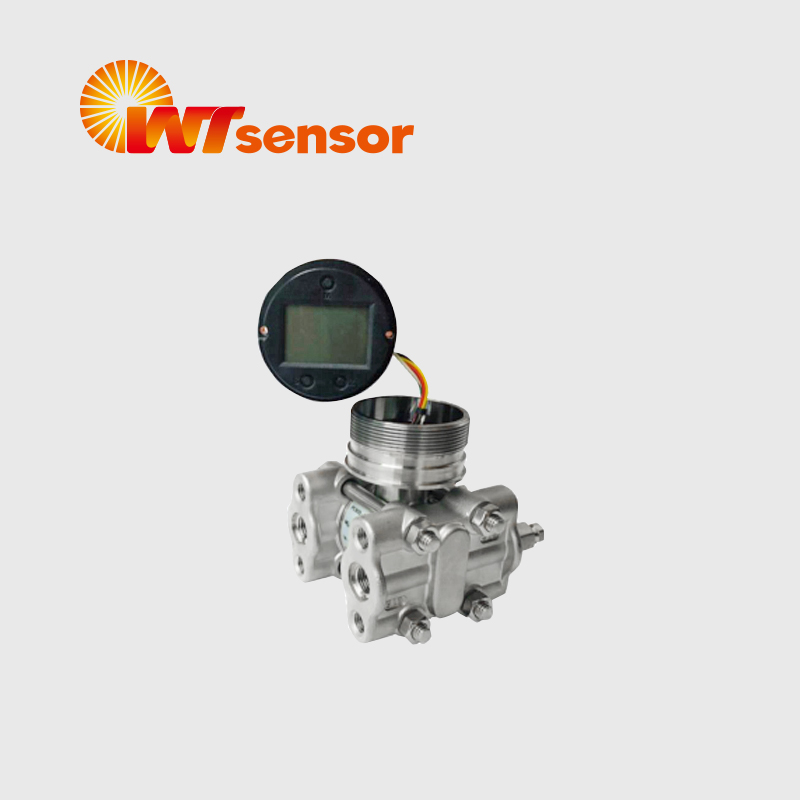

Monocrystalline Silicon Differential Pressure Component with Clamp Block PCM90D
Product overview
PCM90D Monocrystalline Silicon Differential Pressure Sensor Component is a well-developed high performance pressure transmitter based on the international leading technology, adopting the world advanced monocrystalline silicon pressure sensor technology and the patented packaging process. This product adopts the patented double overload protection diaphragm design, with the internal circuit surge protection design, and can accurately measure the gauge pressure, flow, vacuum degree, liquid level and density.
Feature
■ Advanced monocrystalline silicon gauge/absolute pressure sensor adopted
■ Wide pressure range covering-0.1～3MPa
■ Double-wire mode, 4～20mA@HART protocol option
■ Intelligent LCD gauge head with backlight
■ With both the remote transmission and the local zero and pressure range adjustment
■ Complete varieties, high accuracy,good stability
■ High static pressure, high overload protection
■Double overload protection diaphragm design
Application
■ Process control fields for the industries such as petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.
Product Parameters
Performance parameters | |
Pressure rang | ±1kPa；±6kPa；±40kPa；±100kPa；±250kPa；-100kPa～1MPa；-100kPa～3MPa |
Power supply | 12VDC～32VDC，24VDC recommended |
Output | 4～20mA+HART protocol |
Accuracy | ±0.2%FS（±1kPa）；±0.1%FS（±6kPa）；±0.075%FS（ Other pressure ranges）； |
Temperature drift | ±0.5%FS（±1kPa）；±0.3%FS （±6kPa）；±0.25%FS（ Other pressure ranges） @-20℃～70℃ |
Ambient temperature | non-explosive area -30℃～80℃; with LCD gauge outfit -30℃～70℃ |
Medium temp. | -40℃～125℃ |
Static pressure range | ±1kPa；±6kPa；±40kPa Static pressure resistance16MPa； ±100kPa；-100～250kPa Static pressure resistance 25MPa； -0.1～1MPa；-0.1～3MPa Static pressure resistance 40MPa |
Unilateral overpressure | 16MPa |
Ambient humidity | 5～95%RH |
Long-term stability | 0.1%FS/year(Standard pressure range) |
Structural performance | |
Diaphragm material | 316L、Hastelloy C |
Exhaust/Drain valve | 304、316L |
O-ring | Silicone rubber |
Filling liquid | Silicon oil |
Clamp block | 304、316L |
Structure & dimensions | ||||
Product model | PCM90D ±1kPa | PCM90D Other pressure ranges | PCM90D With clamp block | |
Outline drawing |
| |
| |

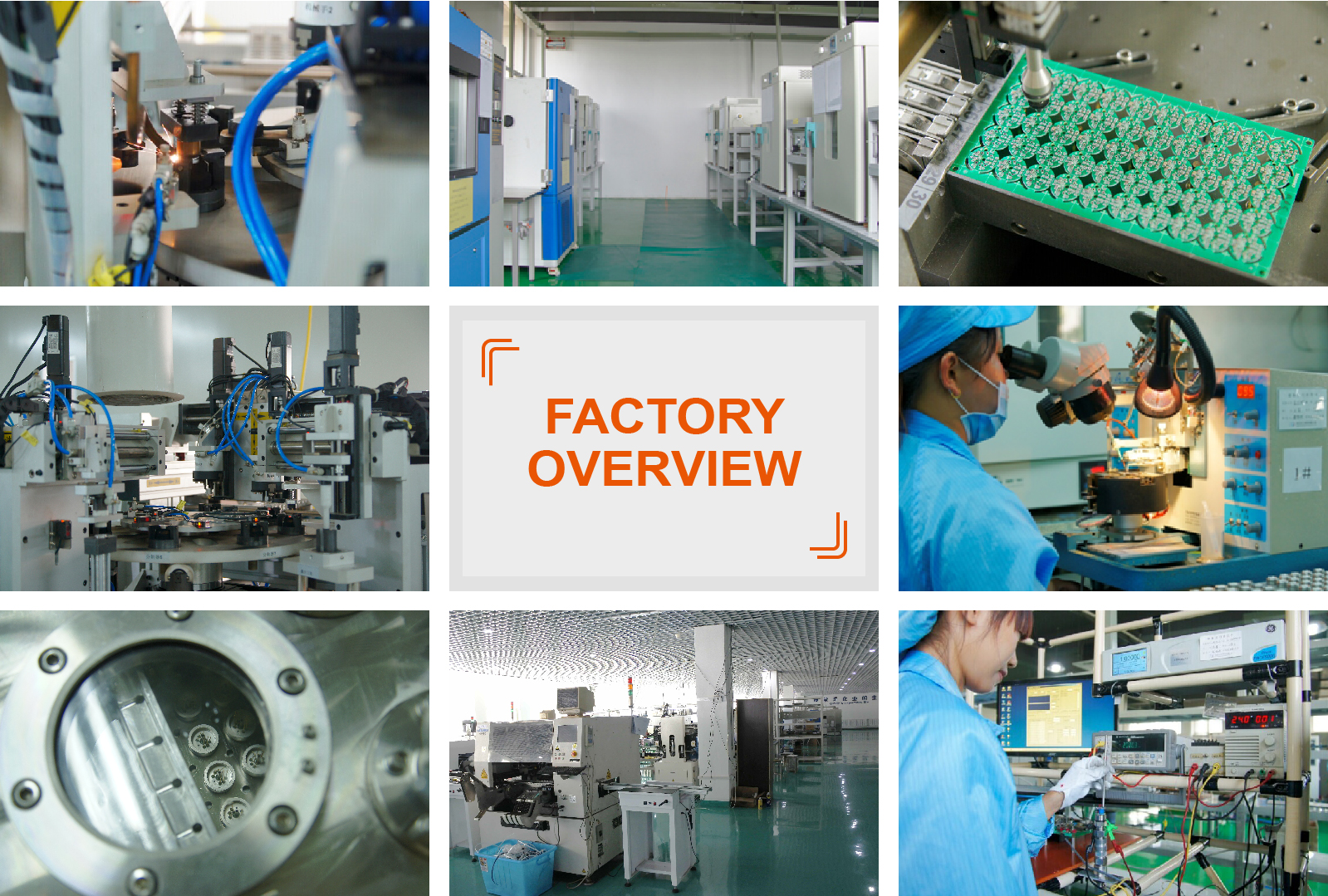

Production process
Testing Equipment

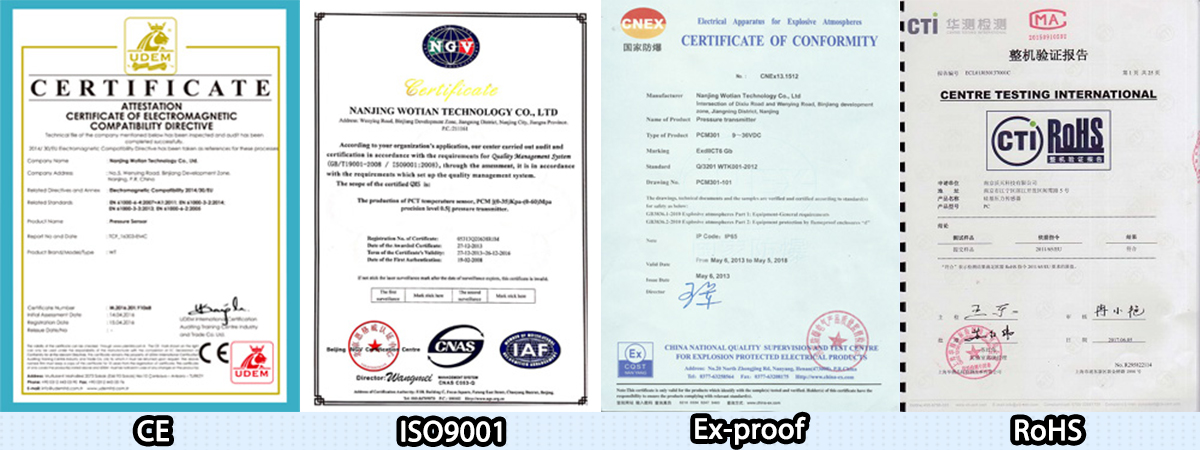

Certificate
Company profile
Nanjing Wotian Technology Co., Ltd. was established in 2005. It is an outstanding top sensor mkanufacturing enterprise in Jiangning District. The company was rated as Nanjing Engineering Technology Research Center and Nanjing. Municipal Engineering Research Center, Nanjing Enterprise Technology Center, Nanjing Postdoctoral Innovation Demonstration Base; is the unit that formulated the national standards for "Silicon Piezoresistive Pressure Sensitive Chips" and "Silicone Pressure Sensors". It is the leading domestic manufacturer of pressure sensors, with core technology of diffused silicon pressure sensor pressure transmitter, level sensor and temperature sensor and existing staff 305. The annual production of pressure sensors is more than 2 million. The products have been exported to more than 70 countries and regions. Nanjing Wotian was awarded the honorary title of "Sensor Application Program Demonstration Enterprise" by the Ministry of Industry and Information Technology in 2019. "Creating value for customers" is the goal that enterprises always pursue. As leading manufacturer in the domestic pressure sensor industry, the company will revitalize China's pressure sensor business as its own responsibility, work diligently, step by step, strive to make pressure sensors better, and provide customers with cost-effective sensors. Nanjing Wotian Technology Co., Ltd. has passed ISO9001-2015 quality management system certification and TS16949 certification for the automotive industry.
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
