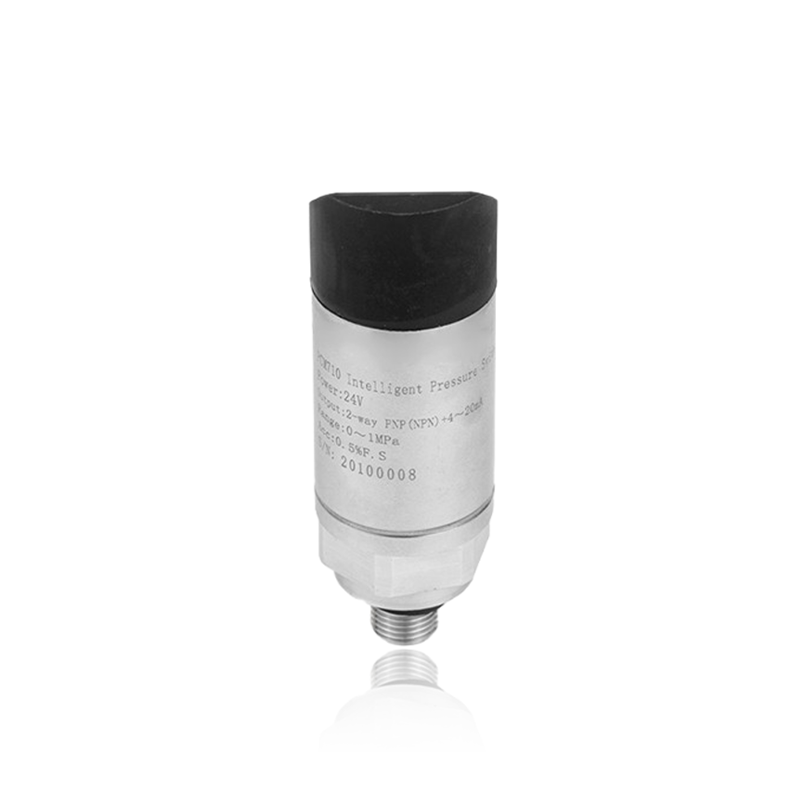

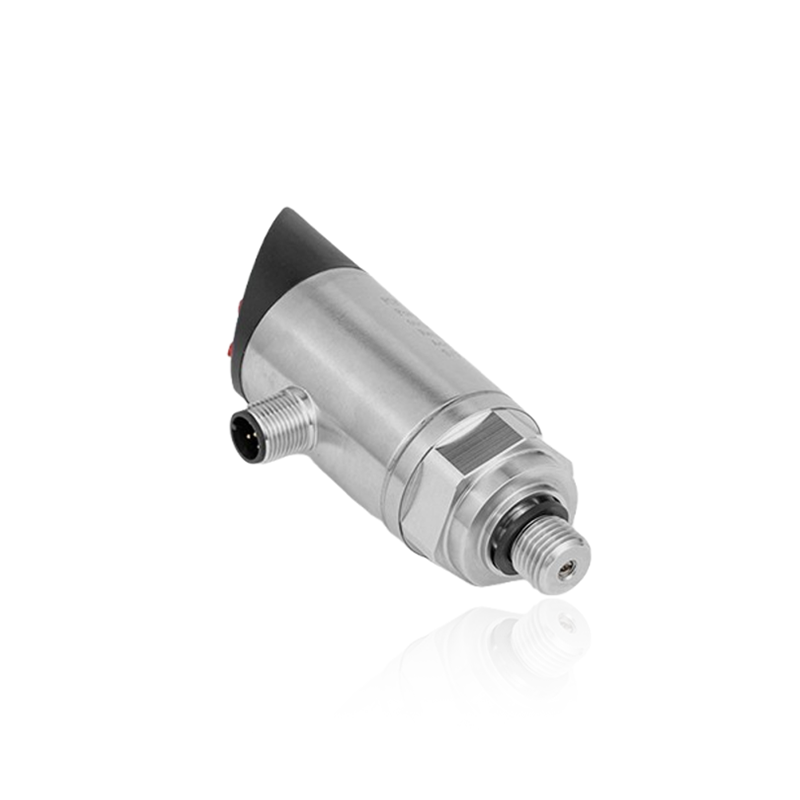

PCM710 Intelligent Pressure Switch: High-Precision Industrial Pressure Control Solution

In industrial production and scientific research, precise fluid pressure measurement and control are essential for maintaining stable equipment operation and improving overall efficiency. The PCM710 Intelligent Pressure Switch is an advanced all-in-one solution designed to meet these demands. With reliable performance, flexible configuration, and user-friendly operation, it is widely suited for hydropower, chemical processing, urban water systems, and more.

Product Highlights: Engineered for Performance

High-Precision Measurement

The PCM710 adopts a silicon piezoresistive sensor combined with a high-accuracy A/D conversion circuit, enabling real-time pressure monitoring with an accuracy of up to 0.5% FS. This ensures dependable performance across most industrial applications.

Adjustable Response Time

Users can flexibly configure the sampling frequency, allowing the device to adapt efficiently to varying and complex working conditions.

Dual Output Modes for Broad Compatibility

Supporting both NPN and PNP output modes, the PCM710 allows seamless switching via software settings—eliminating the need for hardware replacement and simplifying integration with different PLC systems.

Intuitive Operation and Clear Display

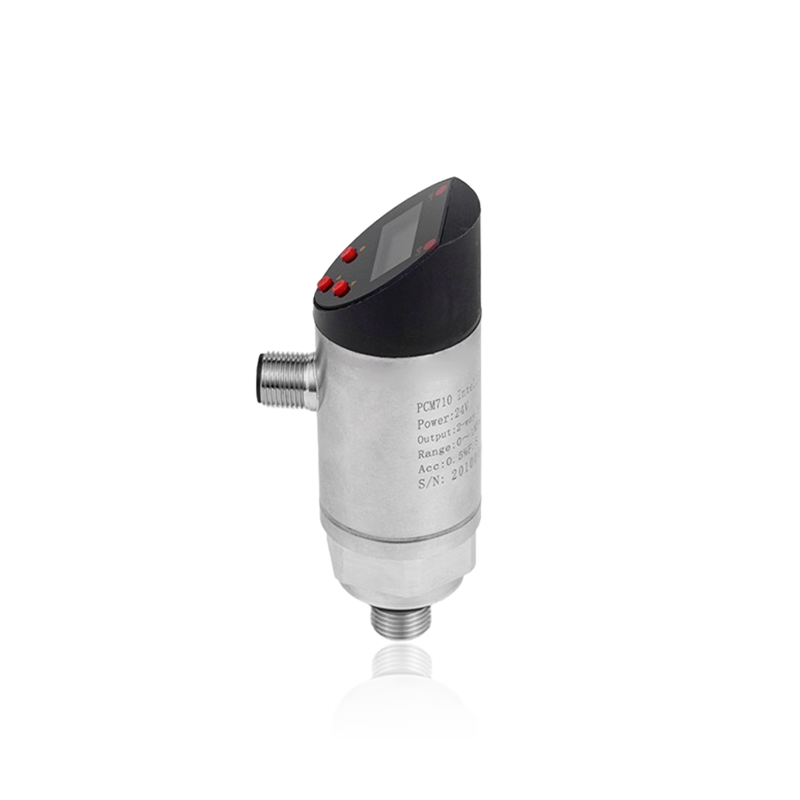

Equipped with an OLED real-time digital display, the device provides clear and immediate pressure readings. Features such as one-click zero calibration and quick unit switching significantly reduce commissioning time on-site.

Wide Range of Industrial Applications

The PCM710 Intelligent Pressure Switch delivers reliable pressure monitoring and control across multiple industries:

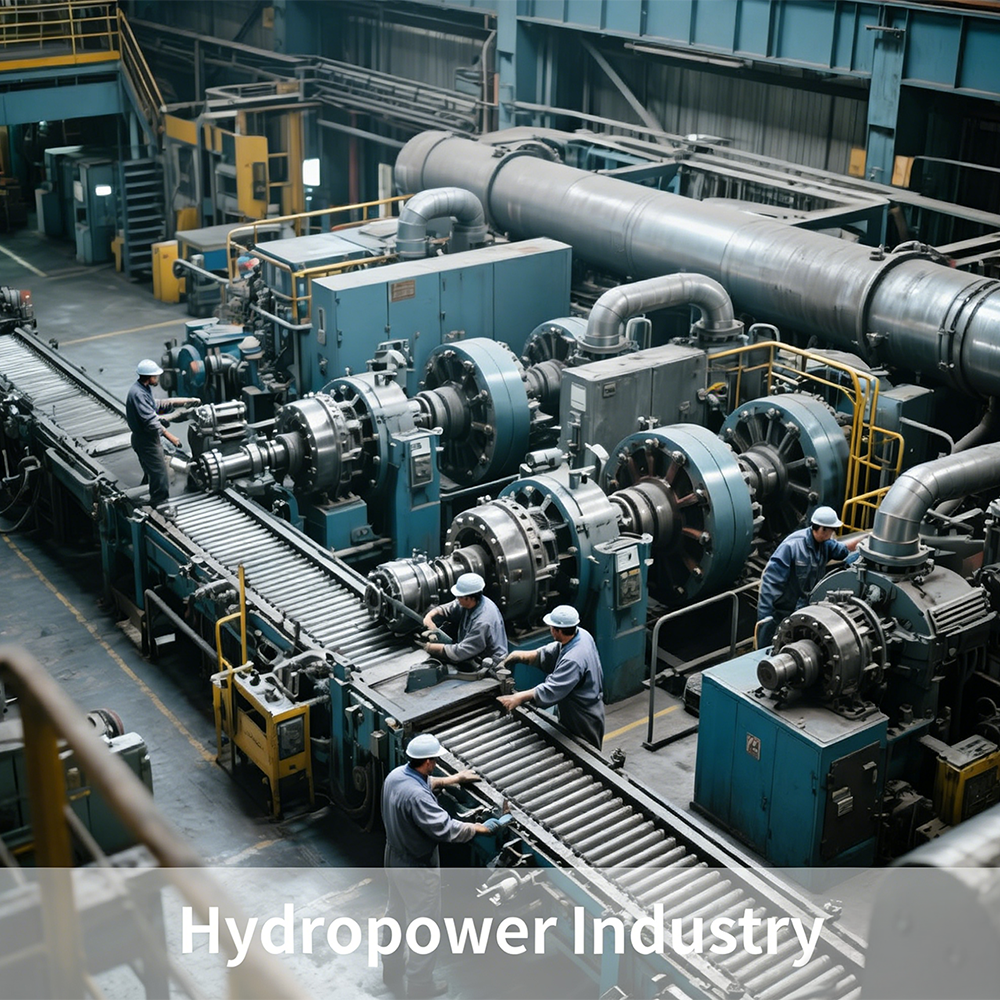

• Hydropower Industry
  Monitors pressure in pipelines and generating units to ensure stable transmission and prevent damage caused by abnormal pressure conditions.

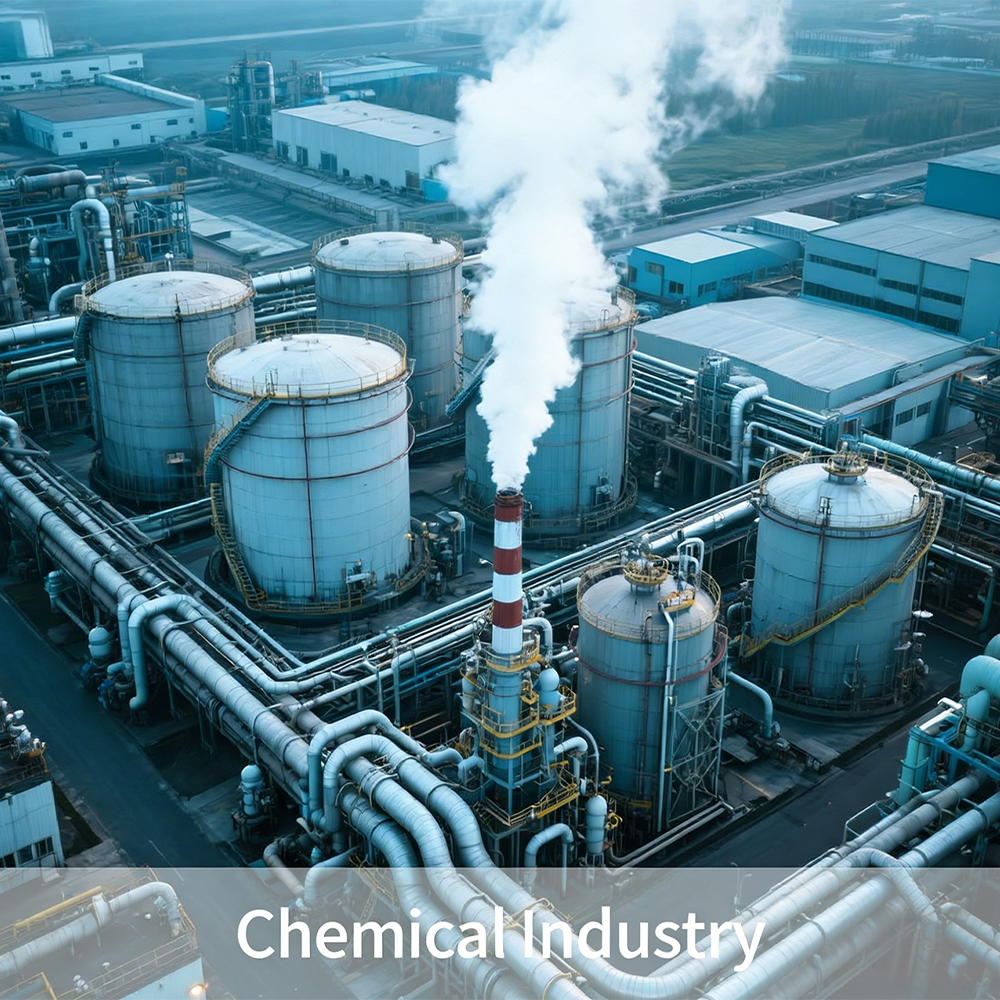

• Chemical Industry
  Suitable for various chemical media, with corrosion-resistant materials designed for harsh environments. Precise control enhances operational safety.

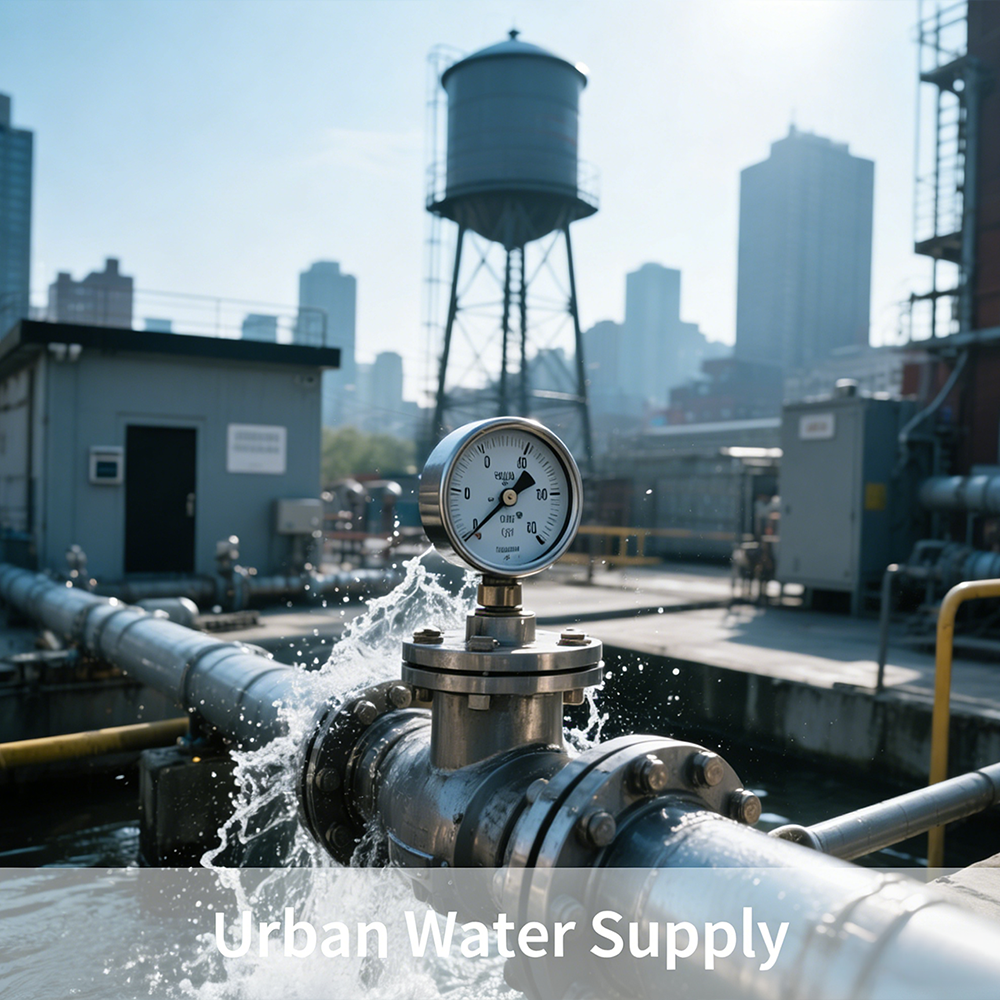

• Urban Water Supply Systems
  Enables real-time monitoring of pipeline pressure, helping prevent pipe rupture due to overpressure and ensuring consistent water delivery.

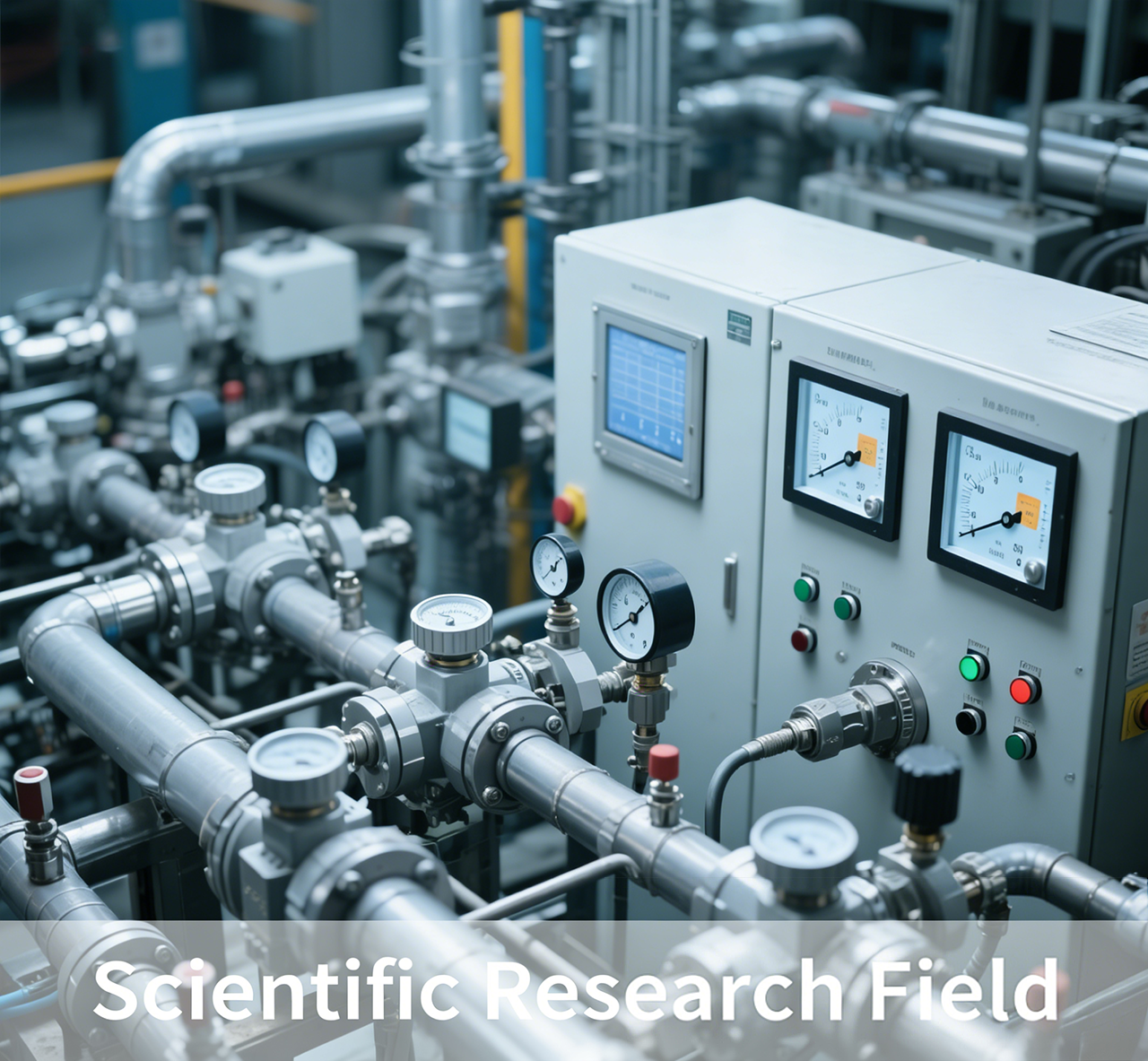

• Scientific Research
  Provides high-precision pressure data for fluid-related experiments and laboratory applications.

Additionally, the PCM710 is applicable in petroleum, machinery, and hydraulic systems, meeting diverse pressure control requirements.

Core Technologies Backed by Robust Parameters

Wide Measuring Range & High Reliability

• Measuring range: 0–10 kPa to 40 MPa

• Maximum overload: 300% FS
  Designed for demanding environments such as hydropower, chemical plants, and water supply systems.

Excellent Temperature Adaptability

• Operating temperature: -25°C to 80°C

• Storage temperature: up to 100°C
  Ensures stable performance across varied environmental conditions.

Fast Response & Strong Anti-Interference

• Response time: ≤ 20 ms

• Integrated DAP damping mechanism reduces high-frequency noise, preventing false triggering and improving system stability.

Durable Structure & Media Compatibility

• Wetted diaphragm: 316L stainless steel

• Pressure connector: 304 stainless steel
  Offers excellent corrosion resistance and durability, suitable for both liquid and gas media.




Why Choose PCM710?

• All-electronic structure for enhanced reliability

• High precision with rapid response

• Flexible NPN/PNP output switching without additional hardware

Technical Support & Contact Information

For inquiries regarding accuracy, model selection, or installation, our professional engineering team is ready to assist with tailored solutions.

• Website: www.wtsensor.com

• Address: No.5 Wenying Road, Binjiang Development Zone, Nanjing 211161, China

• Email: [email protected]

With extensive industry experience, we provide professional technical support and customized solutions for your industrial pressure measurement needs.
