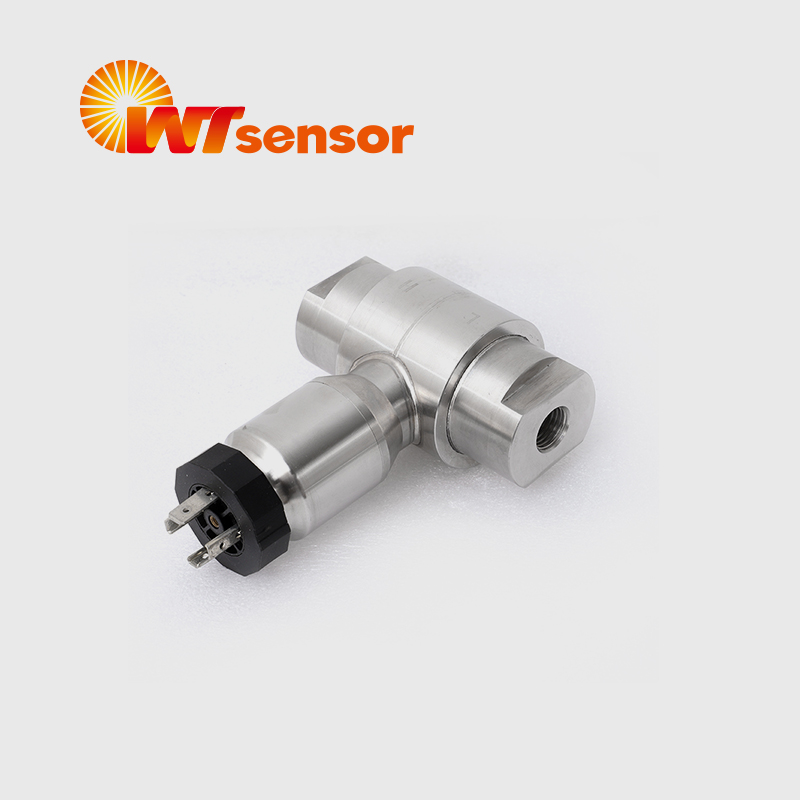

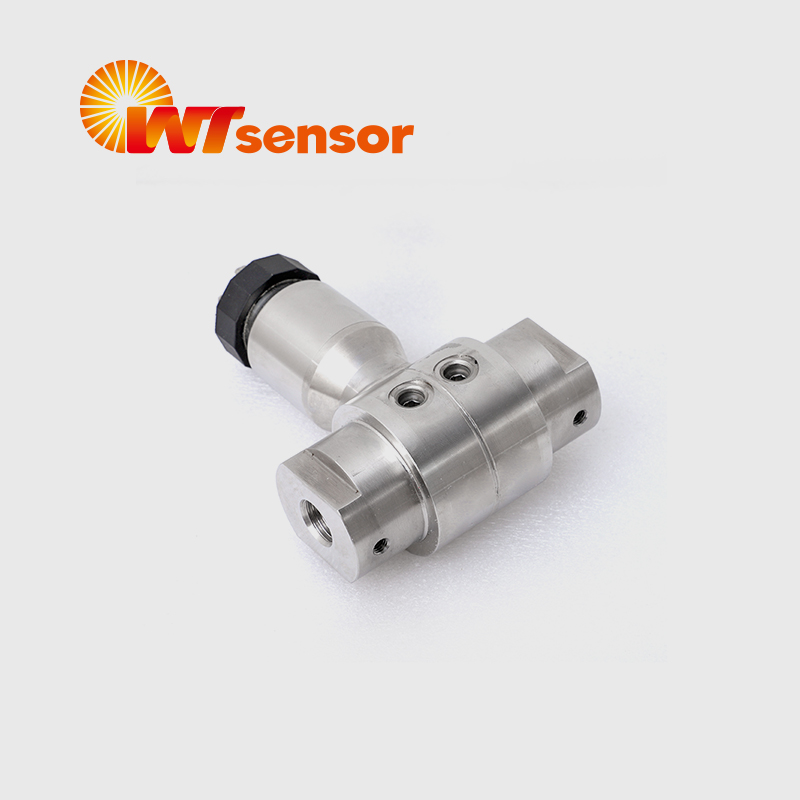

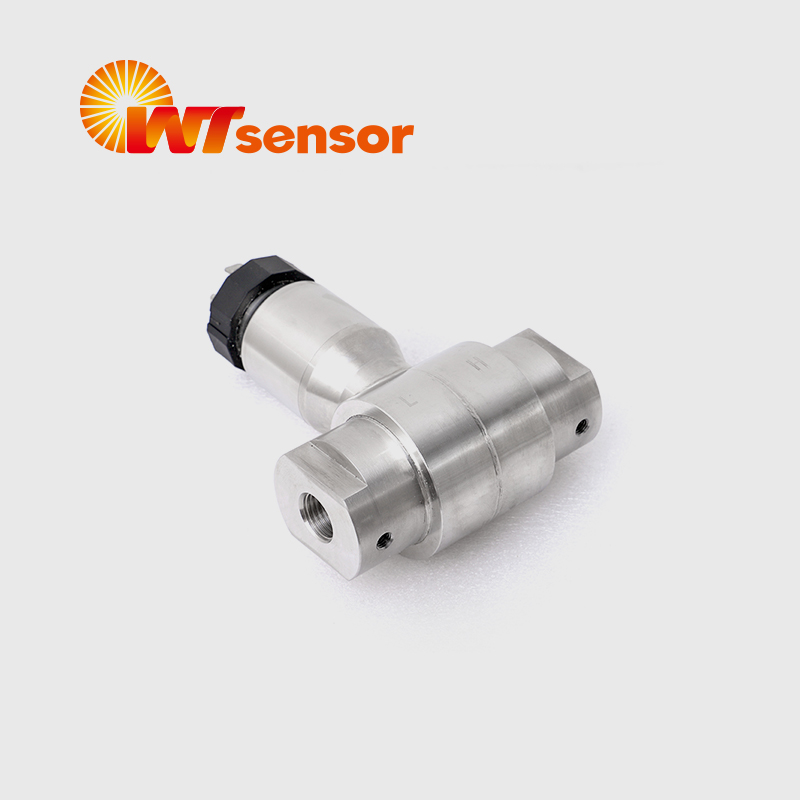

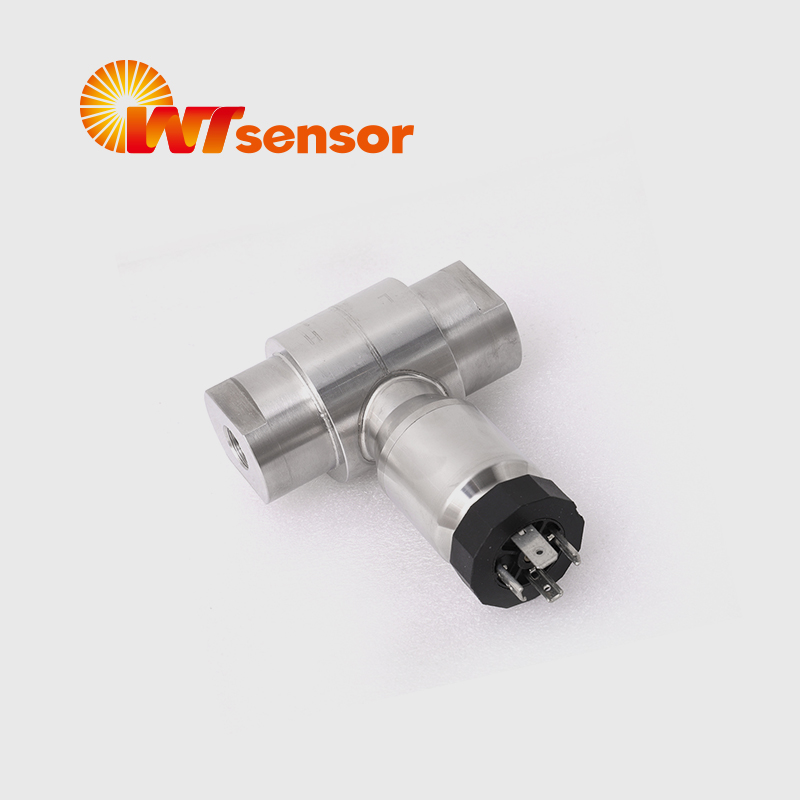

Monocrystalline Silicon Differential Pressure Transmitter PCM1610

Features

■ Imported ultra-high stability differential pressure die

■ High accuracy and excellent stability

■ Static pressure error within ±0.1%FS/10MPa

■ Unilateral overpressure limit of up to 40MPa

■ High accuracy temperature sensor inside

■ Intelligent temperature compensation

■Positive and negative pressure completely symmetrical, no O-ring inside

■ All welded integrated structure


Applications

■ Mobile tank monitoring

■ Thermal meter manufacturing



Monocrystalline silicon differential pressure transmitter,China factory differential pressure transmitter,Wotian differential pressure transmitter,China differential pressure transducer manufacturer


China Wotian factory differential pressure transmitter adopting high stability differential pressure chip, monocrystalline silicon floating design and the embedded signal processing module to achieve high accuracy and long-term stability over a wide range of static pressure and temperature changes


Product Parameters

Performance   parameters

Pressure range

02kPa3MPa

Supply/output

420mA, 420mA+RS485-MODBUS1028VDC

Operating temp.

-40-85

Storage temp.

-40℃~125

Compensation temp.

-2080

Temp. coefficient

1.5%-2080℃)

Overpressure

16MPa

Maximum static pressure

40MPa

Mechanical   vibration

20g(205000Hz)

Shock

100g11ms

Overall   accuracy

0.5%FS

Insulation   resistance

100MΩ/250VDC(200MΩ/250VDC)

Response time

1msup to 90%FS

Long term   stability

±0.1%FS/year

IP protection

IP65

Material

Stainless steel

Medium compatible

Various medium compatible with 304 stainless steel
