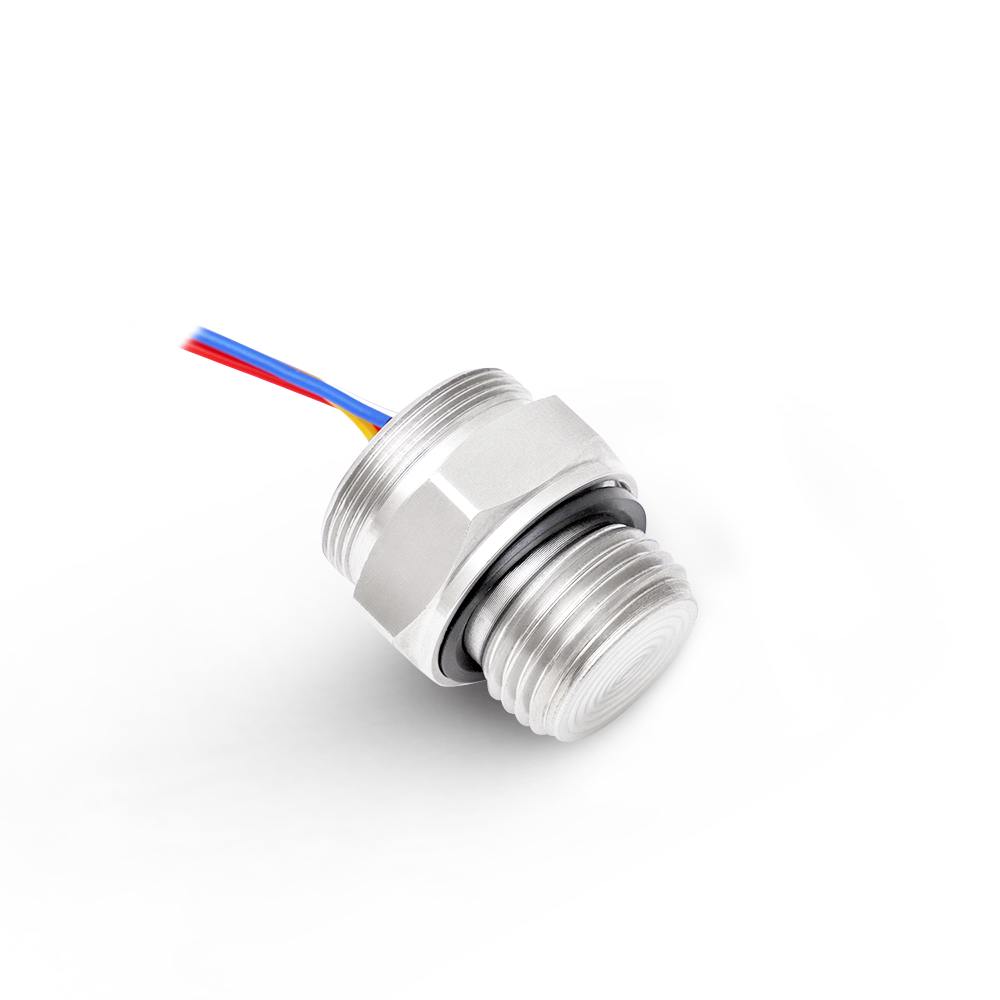

All Welded in harsh environment Pressure Sensor PC11B

l  Full welded seal, can be used in harsh environment

l  High performance, all solid, corrosion resistant

l  High accuracy and stability

l  Strong anti-interference, good long-term stability

l  Constant current excitation option

l  Customization available



 PC11B all welded pressure sensor, China pressure sensor, wotian pressure sensor,  pressure  sensor

PC11B all welded pressure sensor is to package PC10 pressure sensor into the workpiece with standard pressure connection. Nanjing Wotian Technology Co., Ltd is a Chinese manufacturer that produces the pressure sensors and transmitters.

Product Parameters


All Welded in harsh environment Pressure Sensor PC11B


Pressure range

Pressure range

-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa

Pressure reference

Gauge pressure | Absolute pressure | Sealed gauge pressure

Overpressure

200%F.S.(<10MPa) | 150%F.S.(≥25MPa)

Output signal

Zero output

±2mV

Span output

1.5mA Excitation: ≥40mV (≤35kPa); ≥60mV (Other ranges) |

10V Excitation: ≥60mV (≤35kPa); 80~120mV (Other ranges)

Specification

Excitation

1.5mA | 10VDC

Compensated temp.

0-60(≤35kPa) | -10-70(Other ranges)

Operating temp.

-40-125

Storage temp.

-40-125

Zero temp. coefficient

0.02%F.S. /(≥100kPa) | 0.04%F.S. /(<100kPa)

Span temp. coefficient

0.02%F.S. /(≥100kPa) | 0.04%F.S. /(<100kPa)

Insulation resistance

200Mohm/250VDC

Input impedance

2kΩ-5kΩ

Long term stability

≤0.2%F.S.S/year

Vibration

20g (20-5000Hz)

Shock

100g (11ms)

Response time

≤1ms(up to 90%F.S.)

Oil filling

Silicon oil

Material

Housing: Stainless steel 304 | Diaphragm: Stainless steel 316L

Medium compatibility

All the liquids and gases compatible with the diaphragm

Structure





H type

L type

Q type















① Pressure range: 20kPa10MPa

② Feature: The pressure sensor is designed inside the pressure connection part with small longitudinal length and big horizontal length.

① Pressure range: 6MPa100MPa

② Feature: Part of the pressure sensor is designed inside the pressure connection part with small diameter of rear end.

① Pressure range: 20kPa2.5MPa

② Feature: The pressure sensor is designed outside the pressure connection part. The pressure connection part, diaphragm and base are welded together with big longitudinal length and small horizontal length.



Note: Above are 3 typical structures of all welded pressure sensor. The product is a customized product. Detailed specifications follow customer’s requirements.
