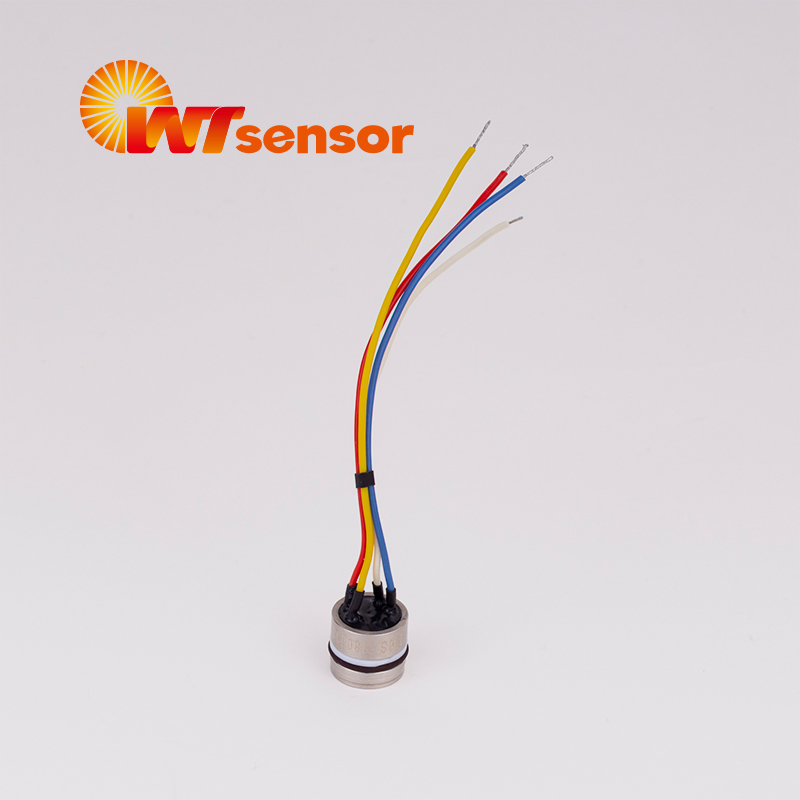

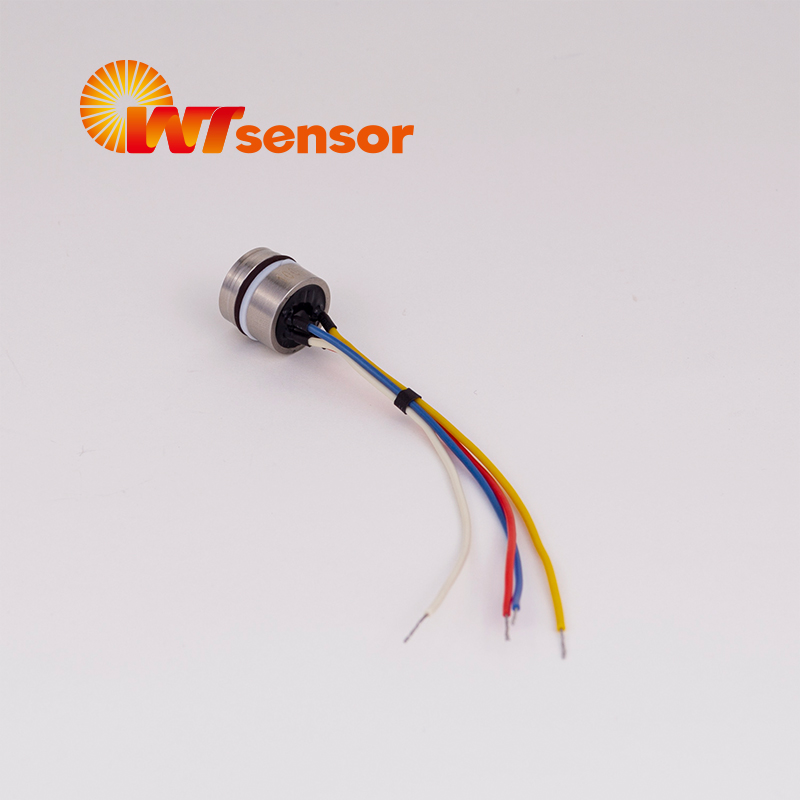

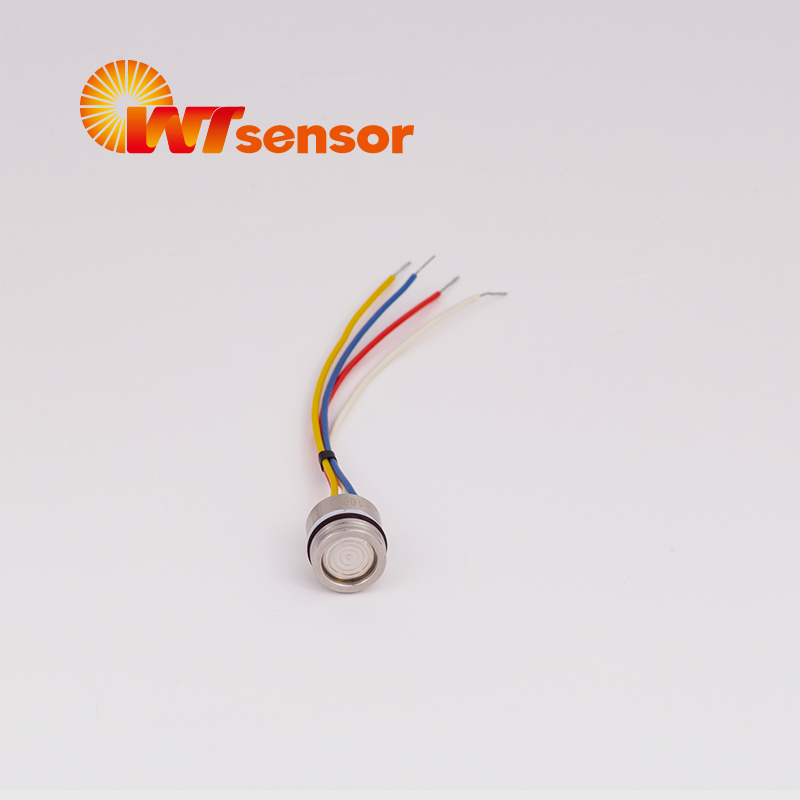

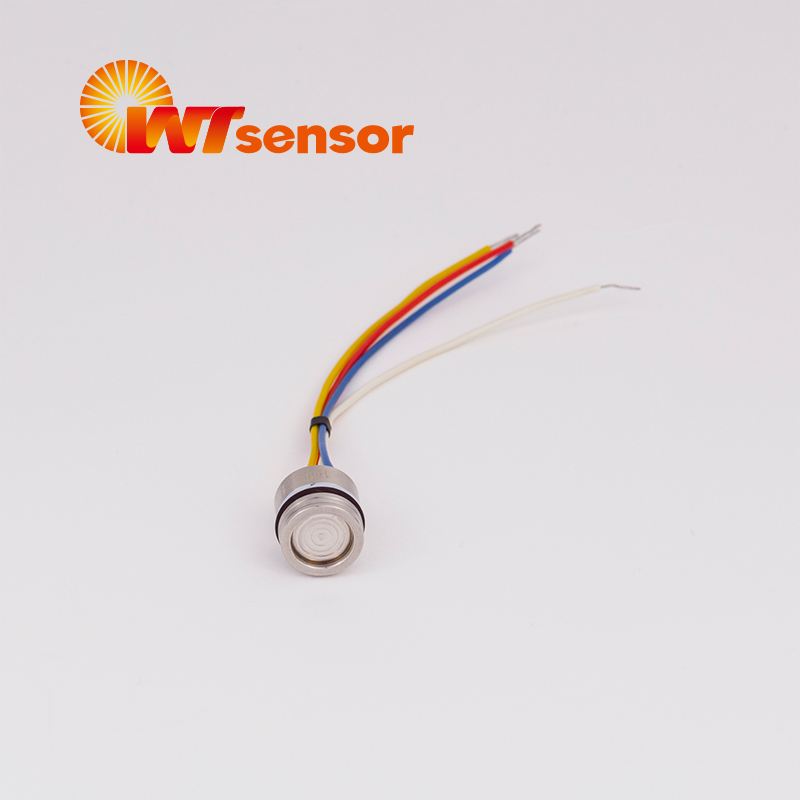

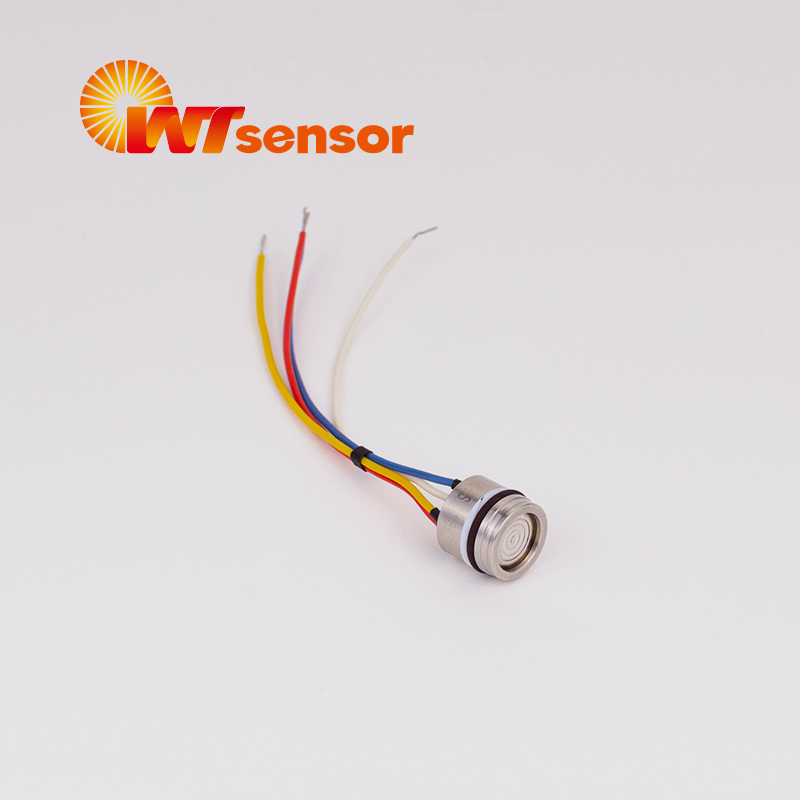

Φ15x13mm Industrial Pressure Sensor PC8

Features

Piezoresistive silicon chip employed

Perfect long term stability

MEMS technology

Sensor diameter: 15mm



Φ15mm PC8(WT15) industrial pressure sensor,China pressure sensor,wotian pressure sensor,pressure sensor factory

Wotian are the factory that produce small-diameter silicon pressure sensors with oil filling in China.

Product Parameters

Electrical performance parameters

Pressure range

1.6MPa…60MPa


Pressure reference

Absolute pressure, Sealed gauge pressure


Excitation

1.5mA recommended for constant current

10V recommended for constant voltage


Input impedance

Constant current: 2kΩ~5kΩ

Constant voltage: 3kΩ~18kΩ


Electrical connection

Gold-plated KOVAR pin or silicon soft wire


Compensation temp.

-1070


Operating temp.

-40℃~125


Storage temp.

-40℃~125


Insulation resistance

≥200MΩ/250VDC


Response time

≤1ms (up to 90%FS)


Measured medium

All the liquids and gases compatible with 316L.


Mechanical vibration

20g (20~5000Hz)


Shock

100g /10ms


Service life

106 pressure cycles


Structural performance parameters

Diaphragm material

316L


Housing material

316L


Oil filling

Silicon oil


Sealing ring

Fluorine rubber






Basic parameters

Item

Condition

Min

Nominal

Max

Unit

Note


Non-linearity


-0.3

±0.2

0.3

%FS

Notes(1)


Hysteresis


-0.05

±0.03

0.05

%FS



Repeatability


-0.05

±0.03

0.05

%FS



Basic parameters (cont.)


Item

Condition

Min

Nominal

Max

Unit

Note


Zero output


-2

±1

2

mV



Span output

1.5mA

10V

60

98

90

100

150

102

mV



Zero temp. coefficient


-1.5

±0.75

1.5

%FS

Notes(2


Span temp. coefficient


-1.5

±0.75

1.5

%FS

Notes(2)


Thermal hysteresis


-0.075

±0.05

0.075

%FS

Notes(3)


Long term stability


-0.3

±0.2

0.3

%FS/Year



Notes:

(1) Calculate according to BFSL method.

(2) In the compensation temperature range, refer to 30 ℃ for -10 ℃ ~ 70 ℃.

(3) After passing high and low temperature, return to the reference temperature.



Structure & dimension (in mm)








Electrical connection (in mm)

1. 6 pin (6p) constant current






Pin          Definition

3        Excitation+(IN+)

5        Excitation-(IN-)

2        Output+(OUT+)

4        Output-(OUT-)

1          Die-

6          Die-
















Electrical connection (in mm) (cont.)

2. 4 wires (4w)





Wire color       Definition

Red        Excitation+(IN+)

Blue    Excitation-(IN-)

Yellow    Output+(OUT+)

White    Output-(OUT-)


Pressure range selection

Code

Pressure reference

Pressure range

Overload

pressure

Burst pressure

O-ring


1.6M

AS

0~1.6MPa

200FS

500FS

Fluorine rubber


2.5M

AS

0~2.5MPa

200FS

500FS

Fluorine rubber


4M

S

0~4MPa

200FS

400FS

Fluorine rubber


6M

S

0~6MPa

200FS

400FS

Fluorine rubber


10M

S

0~10MPa

200FS

400FS

Fluorine rubber


16M

S

0~16MPa

200FS

300FS

Fluorine rubber


25M

S

0~25MPa

150FS

300FS

Fluorine rubber


40M

S

0~40MPa

150FS

200FS

Fluorine rubber


60M

S

0~60MPa

150FS

200FS

Fluorine rubber


Note: A: Absolute pressure, S: Sealed gauge pressure
