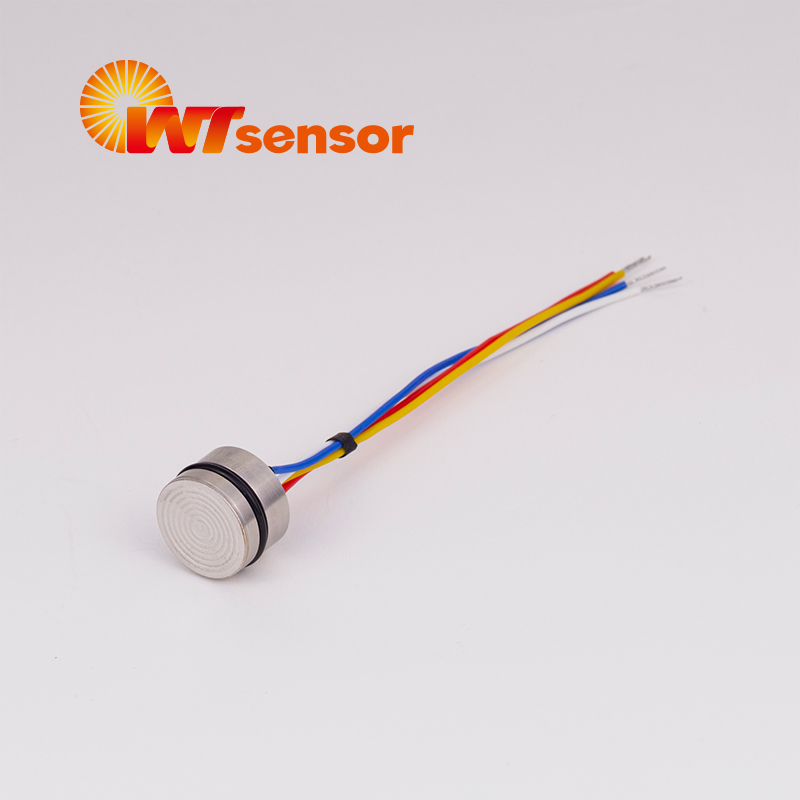

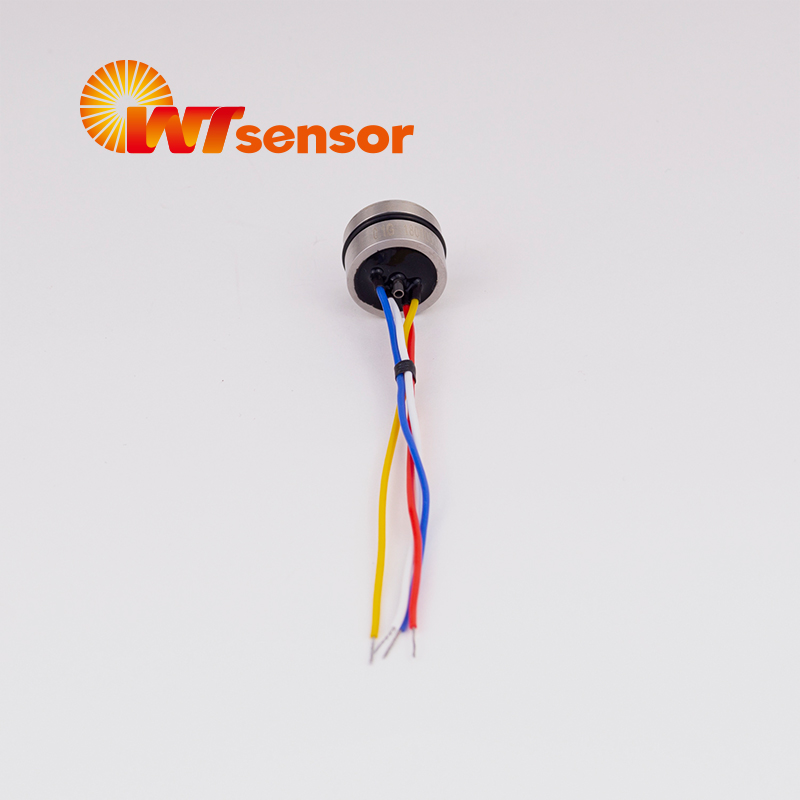

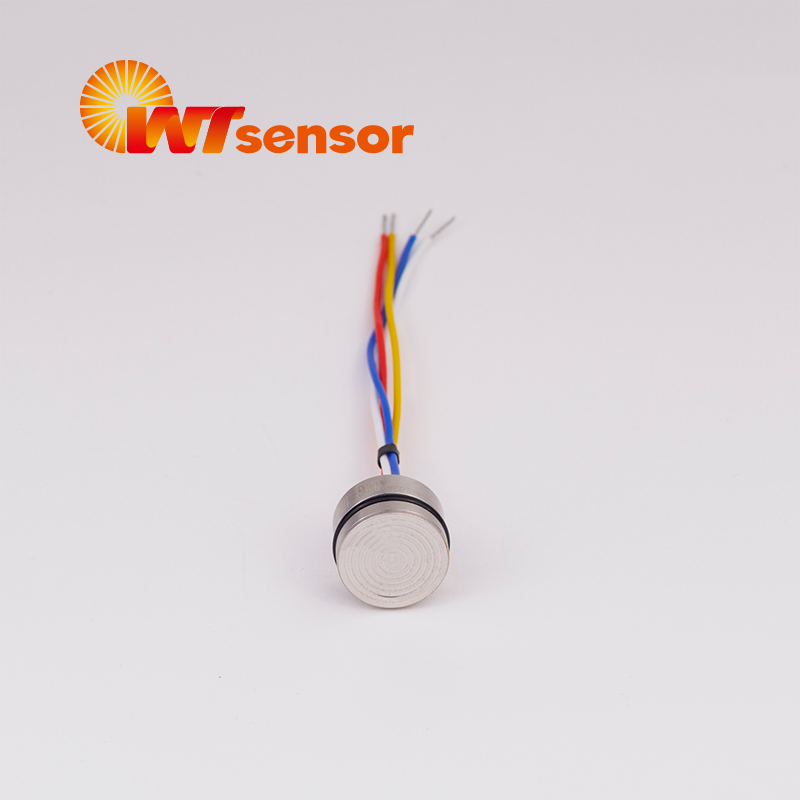

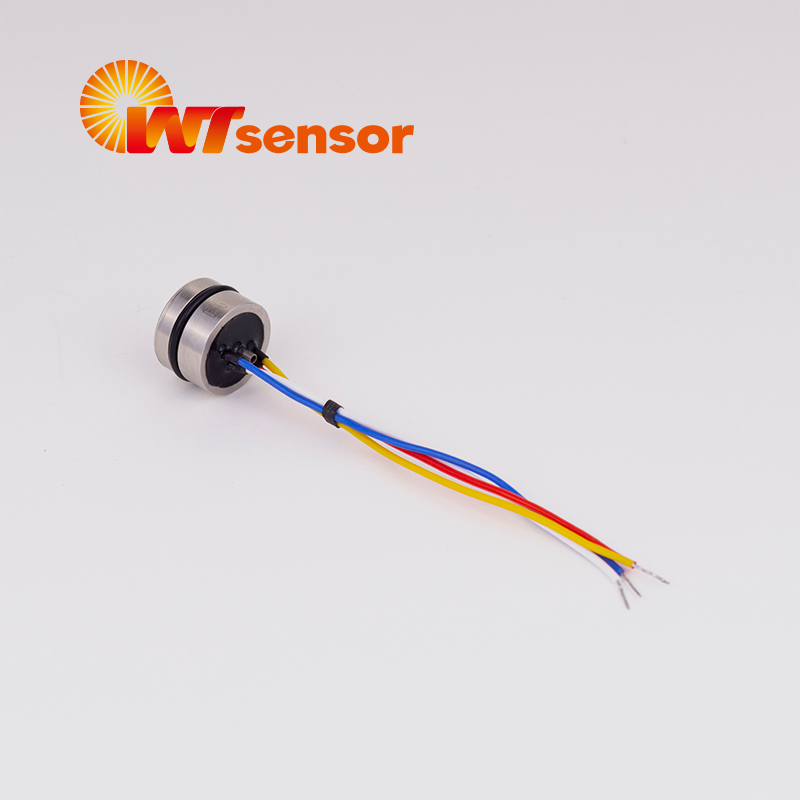

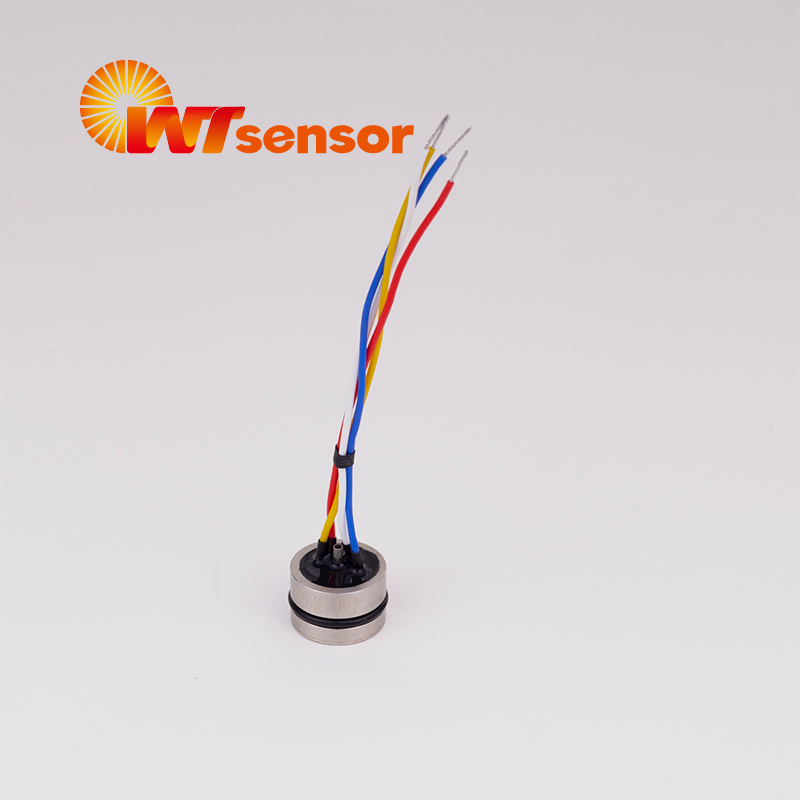

Φ19mm Piezoresistive Silicon Pressure Sensor PC10P

Product overview

PC10P piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters. As high-performance pressure sensitive component, PC10P can be easily amplified and assembled into the pressure transmitters with standard signal output.

PC10P packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC10P uses O-ring for pressure seal, which is easy to install.

The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock and anti-vibration sensors, especially for national defense weapons and equipment.



Features

With constant current and constant voltage excitation options

Imported highly reliable pressure die

Wide temperature compensation

Normalized output available

Compensation board filled with glue for protection against moisture

Φ19mm standard OEM

All 316L material

High performance, all solid, high reliability

18 months warranty period



Applications

Process control systems

Pressure calibration instruments

Refrigeration equipment and HVAC control

Hydraulic systems and valves

Level measurement

Biomedical instruments

Ships and navigation

Aircraft and avionics systems

Weaponry

Product Parameters

Electrical performance parameters

Pressure range

-100kPa010kPa…60MPa



Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure



Excitation

1.5mA recommended for constant current

10V recommended for constant voltage



Input impedance

Constant current: 2kΩ5kΩ

Constant voltage: 3kΩ18kΩ



Electrical connection

Gold-plated KOVAR pin or silicon soft wire



Compensation temp.

Constant current: 060℃(≤70kPa),

-1070℃(other ranges)



Operating temp.

-40125



Storage temp.

-40125



Insulation resistance

≥200MΩ/250VDC



Response time

≤1ms (up to 90%FS)



Measured medium

All the liquids and gases compatible with 316L.



Mechanical vibration

20g (205000Hz)



Shock

100g (10ms)



Service life

1×106 (cycles)



Structural performance parameters

Diaphragm material

316L



Housing material

316L



Oil filling

Silicon oil



Sealing ring

NBR or fluorine rubber



Basic parameters

Item

Condition

Min

Nominal

Max

Unit

Note



Nonlinearity


-0.3

±0.2

0.3

%FS

Note



Hysteresis


-0.05

±0.03

0.05

%FS




Repeatability


-0.05

±0.03

0.05

%FS




Zero output


-2

±1

2

mV




Full scale span output

1.5mA, 10kPa

1.5mA,other ranges

10V, 10kPa

10V, other ranges

30

60

60

98



90



100



150



102

mV




Zero temp. coefficient

10kPa

other ranges

-2

-1.5

±1.5

±0.75

2

1.5

%FS

Note



Span temp. coefficient


-1.5

±0.75

1.5

%FS

Note



Thermal hysteresis


-0.075

±0.05

0.075

%FS

Note



Long term stability


-0.3

±0.2

0.3

%FS/Year




Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range 0 ~ 60 and -10 ~ 70 , and refer to 30

(3) After passing high and low temperature, return to the reference temperature.



Gauge pressure

10kPa4MPa

Sealed gauge pressure or absolute pressure

25MPa

Sealed gauge pressure

≥25MPa











Gauge pressure

10kPa4MPa

Sealed gauge pressure or absolute pressure

25MPa

Sealed gauge pressure

≥25MPa


















Φ19mm Piezoresistive Silicon Pressure Sensor PC10P



Basic parameters


Item

Condition

Min

Nominal

Max

Unit

Note



Nonlinearity


-0.3

±0.2

0.3

%FS

Note



Hysteresis


-0.05

±0.03

0.05

%FS




Repeatability


-0.05

±0.03

0.05

%FS




Zero output


-2

±1

2

mV




Full   scale span output

1.5mA, 10kPa

1.5mA, other   ranges

10V, 10kPa

10V, other   ranges

30

60

60

98



90



100



150



102

mV




Zero   temp. coefficient

10kPa

other   ranges

-2

-1.5

±1.5

±0.75

2

1.5

%FS

Note



Span   temp. coefficient


-1.5

±0.75

1.5

%FS

Note



Thermal   hysteresis


-0.075

±0.05

0.075

%FS

Note



Long term   stability


-0.3

±0.2

0.3

%FS/Year



Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range, refer to 30 for 0 ~ 60 and -10 ~ 70 , and refer to 32.5 for -20 ~ 85 .

(3) After passing high and low temperature, return to the reference temperature.



Structure and dimensions

In mm

Gauge pressure

10kPa4MPa

Sealed gauge pressure or absolute pressure

25MPa

Sealed gauge pressure

≥25MPa



 Φ19mm Piezoresistive Silicon Pressure Sensor PC10P








Φ19mm Piezoresistive Silicon Pressure Sensor PC10P

Φ19mm Piezoresistive Silicon Pressure Sensor PC10P








Electrical connection (in mm)

1. 6 pin (6p)




 Φ19mm Piezoresistive Silicon Pressure Sensor PC10P




Pin           Definition

3        Excitation+(IN+)

5        Excitation-(IN-)

2        Output+(OUT+)

4        Output-(OUT-)

1          Die-

6          Die-


Electrical connection (in mm) (cont.)

2. 4 wire (4w)





Wire color       Definition

Red        Excitation+(IN+)

Blue    Excitation-(IN-)

Yellow    Output+(OUT+)

White    Output-(OUT-)

3. 5 wire (5w)





Wire color       Definition

Red        Excitation+(IN+)

Blue    Excitation-(IN-)

Blue    Excitation-(IN-)

Yellow    Output+(OUT+)

White    Output-(OUT-)


Pressure range selection


Code

Pressure reference

Pressure range

Overpressure

Burst pressure

O-ring



10k

G

010kPa

300FS

600FS

NBR



20k

G

020kPa

300FS

600FS

NBR



35k

G, A

035kPa

300FS

600FS

NBR



70k

G

070kPa

300FS

600FS

NBR



100k

G, A

0100kPa

200FS

500FS

NBR



160k

G, A

0160kPa

200FS

500FS

NBR



250k

G, A

0250kPa

200FS

500FS

NBR



400k

G, A

0400kPa

200FS

500FS

NBR



600k

G, A

0600kPa

200FS

500FS

NBR



1M

G, A

01MPa

200FS

500FS

NBR



1.6M

G, A, S

01.6MPa

200FS

500FS

NBR



2.5M

G, A, S

02.5MPa

200FS

500FS

NBR



4M

S

04MPa

200FS

400FS

NBR



6M

S

06MPa

200FS

400FS

Fluorine rubber



10M

S

010MPa

200FS

400FS

Fluorine rubber



16M

S

016MPa

200FS

400FS

Fluorine rubber



25M

S

025MPa

150FS

400FS

Fluorine rubber



40M

S

040MPa

150FS

300FS

Fluorine rubber



60M

S

060MPa

150FS

300FS

Fluorine rubber



100M

S

0100MPa

150FS

300FS

Fluorine rubber



(-1000)k

Omitted

-1000kPa

300kPa

600kPa

NBR



(0-100)k

Omitted

0-100kPa

300kPa

600kPa

NBR



Pressure range selection (cont.)



Code

Pressure reference

Pressure range

Overpressure

Burst pressure

O-ring



NP100k

Omitted

±100kPa

300kPa

600kPa

NBR



(-100160)k

Omitted

-100160kPa

480kPa

900kPa

NBR



(-100250)k

Omitted

-100250kPa

750kPa

1.25MPa

NBR



(-100400)k

Omitted

-100400kPa

800kPa

2MPa

NBR



(-100600)k

Omitted

-100600kPa

1.2MPa

3MPa

NBR



(-0.11.0M

Omitted

-0.11MPa

2MPa

5MPa

NBR



(-0.11.6M

Omitted

-0.11.6MPa

3MPa

9MPa

NBR



(-0.12.5M

Omitted

-0.12.5MPa

5MPa

12.5MPa

NBR


Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure
