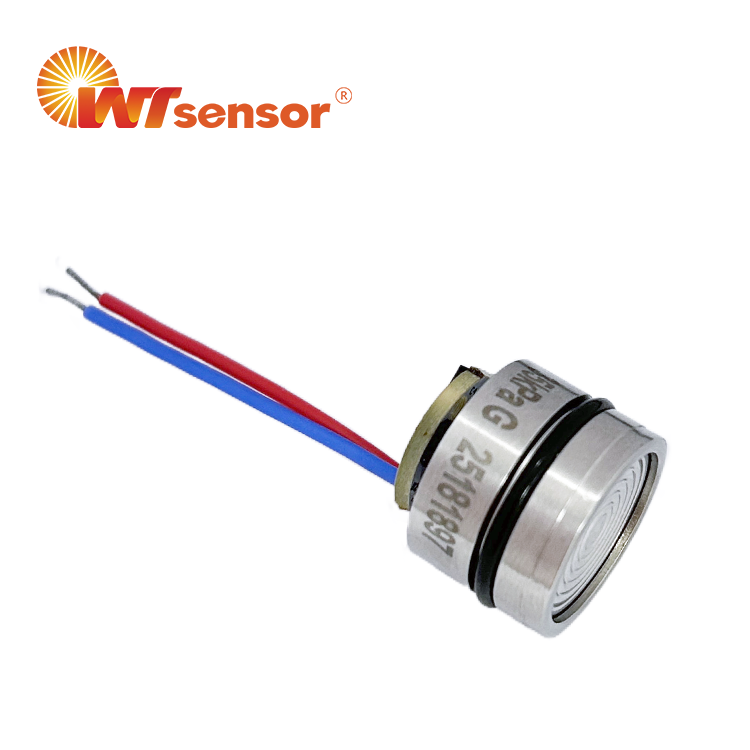

PCM50 Current Output Pressure Sensor 4~20mA output

Features

316L stainless steel isolation diaphragm structure

Small size and light weight

High cost-effectiveness

O-ring seal

Low heat affect (20mA)


Applications

Hydraulic control system

 Water depth detection

 Seal detection system

 Industrial process control

 Fluid pressure measurement


Product Parameters

Performance parameters

Pressure range

0~35 kPa…6MPa

Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure

Accuracy

0.5%FS

Temp. drift

±1.5%FS(-20℃~85℃)

Power-on response time

≤100ms

Overload pressure

Refer to “Pressure range selection”

Durability

≥106pressure cycles

Ambient temp.

-20℃~85℃

Medium temp.

-40℃~85℃

Storage temp.

-40℃~85℃

Insulation resistance

≥100MΩ/250VDC

Medium compatibility

All kinds of media compatible with 316L stainless steel

Performance parameters

Pressure range

0~35 kPa…6MPa

Pressure reference

Gauge pressure, Absolute pressure, Sealed gauge pressure

Accuracy

0.5%FS

Temp. drift

±1.5%FS(-20℃~85℃)

Power-on response time

≤100ms

Overload pressure

Refer to “Pressure range selection”

Durability

≥106pressure cycles

Ambient temp.

-20℃~85℃

Medium temp.

-40℃~85℃

Storage temp.

-40℃~85℃

Insulation resistance

≥100MΩ/250VDC

Medium compatibility

All kinds of media compatible with 316L stainless steel


Current Output Pressure Sensor 4~20mA output PCM50

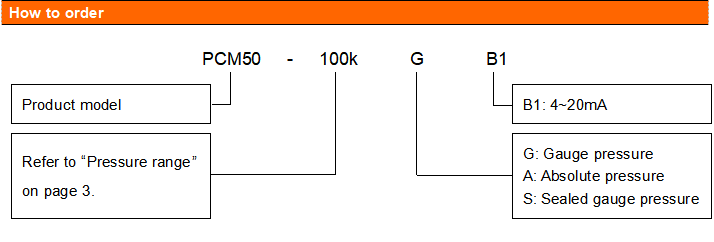

Pressure range selection

Code

Pressure reference

Pressure range

Overpressure

Burst pressure

Notes

35k

GA

0~35kPa

200%FS

300%FS


100k

GA

0~100kPa

200%FS

300%FS


160k

GA

0~160kPa

200%FS

300%FS


250k

GA

0~250kPa

200%FS

300%FS


400k

GA

0~400kPa

200%FS

300%FS


600k

GA

0~600kPa

200%FS

300%FS


1M

GA

0~1MPa

200%FS

300%FS


1.6M

GA

0~1.6MPa

200%FS

300%FS


2.5M

S

0~2.5MPa

200%FS

300%FS


4M

S

0~4MPa

200%FS

300%FS


6M

S

0~6MPa

200%FS

300%FS


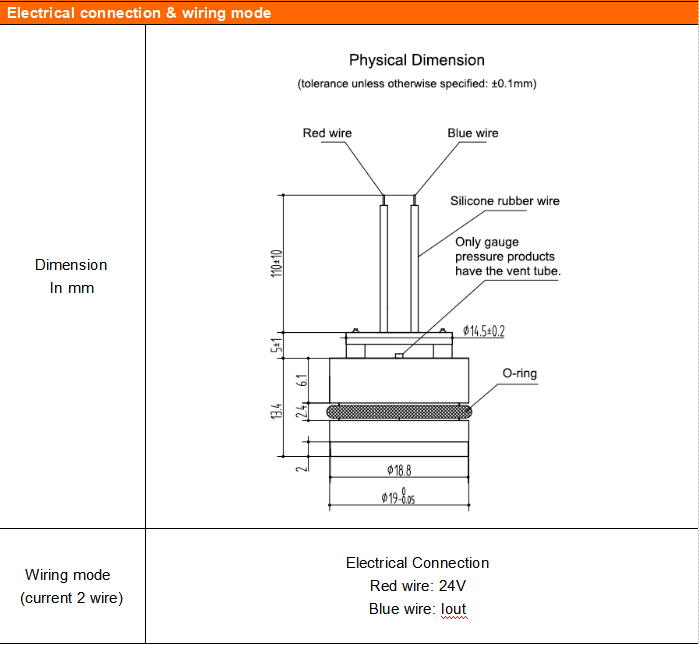

Current Output Pressure Sensor 4~20mA output PCM50
