  • PMA/PMF Adjustable Low Pressure Switch

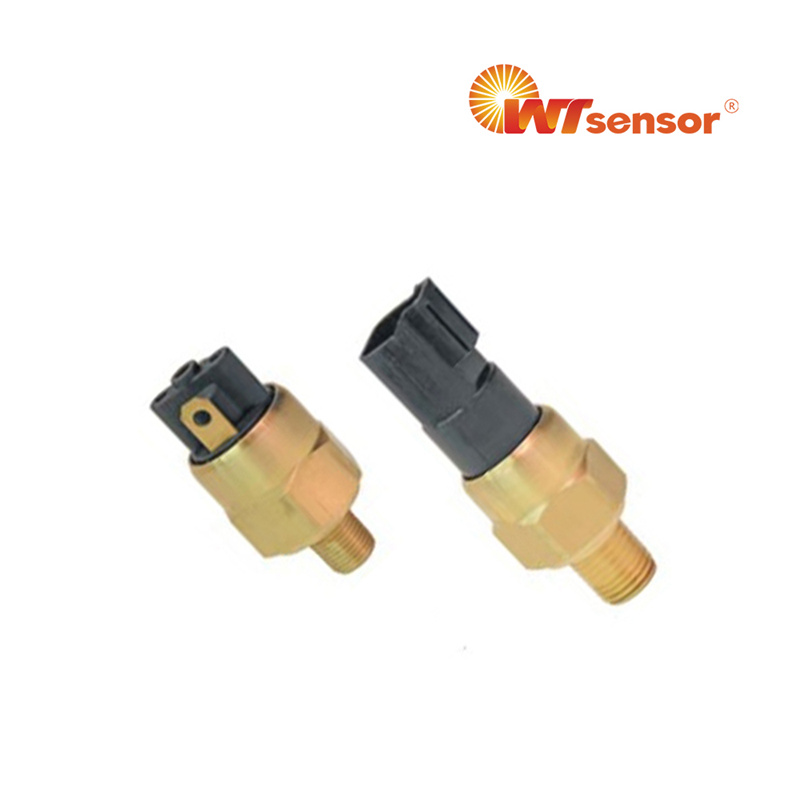

PMA/PMF Adjustable Low Pressure Switch

Adjustment range: 2~150PSI

Maximum overpressure: 350PSI

Protection: IP00 (exposed terminal), IP69 (flying leads, Deutsch integral)

Diaphragm: Buna-N (optional EPDM, KAPTON ® or VITON ®)

Housing: brass (optional electroless nickel plated steel or 316 stainless steel)

Mechanical life: 1,000,000 cycles


Applications

Industrial and mobile hydraulic field as well as pneumatic, water process, refrigerant, air conditioning, beverage and other associated industries.


China factory set adjustable low pressure switch, creep action KAPTON diaphragm brass housing pressure switch


PMA mechanical adjustable low pressure switch is creep action type of ±3% repeatability. Adjustment range is 0.14-10bar. Average differential less than 10% of actuation point. It is applicable to hydraulic field, pneumatic, water process, refrigerant, air conditioning and beverage industries, etc.

Product Parameters

Performance Parameters

Model

 Adjustment Range

   Avg. Differential

 Model

Adjustment Range

Avg.   Differential

PSI       Bar


  PSI           Bar


1

2 - 20

0.14 - 1.4

Less than 10% of
  Actuation Point

3

50 - 150

3.5 - 10

Less than 10% of
  Actuation Point

2

15 - 100

1.03 – 6.9





ELECTRICAL:

100VA/42VDC

Gold contacts may be required for   less than 12 VDC and 20 milliamp

WETTED MATERIAL:

Diaphragm:   KAPTON®

(optional   EPDM, VITON®, Buna-N)

Housing:   Brass

(optional   Steel - Electroless Nickel Plated, 316 Stainless Steel)

PROTECTION:

Exposed   Terminals -IP00

Flying   Leads & Deutsch Integral - IP69

REPEATABILITY:

± 3% of full set   point range at 21°C
  Ambient Temperature

SWITCH TYPE:

Creep   Action

MECHANICAL LIFE:

1,000,000   cycles

TEMPERATURE RANGE:

BUNA-N:   -26~110

EPDM:   -23~121

KAPTON®:   -40~110

VITON®:   -18~150

(®   Registered Trademark of DuPont)

MAXIMUM OVERPRESSURE:

350 PSI (24 Bar)

WEIGHT:

0.07   kg
