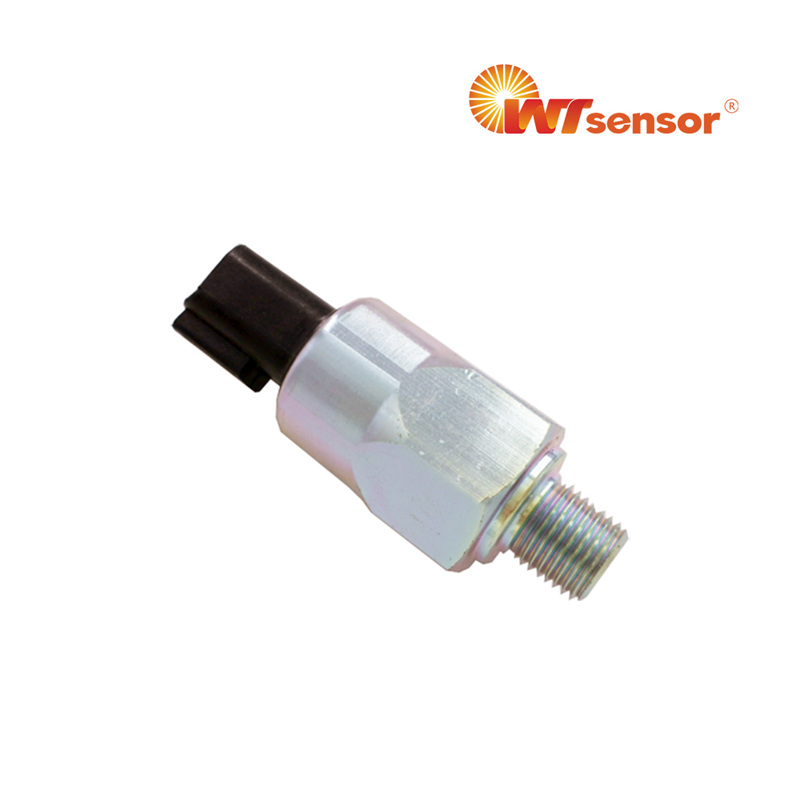

BPA/BPF Adjustable High Pressure Switch
Adjustment range: 5~6000PSI
Maximum overpressure: 9000PSI static pressure; 7500PSI dynamic pressure
Protection: IP00 (exposed terminal), IP65 (DIN HC), IP69 (flying leads, M12, Deutsch integral)
Diaphragm: Buna-N (optional EPDM, KAPTON ®, VITON ® or low temperature nitrile)
Housing: galvanized steel (optional electroless nickel plated steel or 316 stainless steel)
Mechanical life: 1,000,000 cycles
Applications
Industrial and mobile hydraulic field as well as pneumatic, water process, refrigerant, air conditioning, beverage and other associated industries.
factory set adjustable high pressure switch, 2% repeatability Buna-N diaphragm OEM mechanical pressure switch
BPA China factory set mechanical adjustable high pressure switch is snap action type of ±2% repeatability with spade, flying lead, M12, Deutsch connector. Range 0.35-414 bar, applicable to industrial and mobile hydraulic field, pneumatic, water process, refrigerant, air conditioning, beverage fields
Product Parameters
Performance Parameters |
Model | Adjustment Range | Avg. Differential | Model | Adjustment Range | Avg. Differential | |||||||
PSI Bar | PSI Bar | PSI Bar | PSI Bar | |||||||||
1 | 5-85 | 0.35-6 | 1.0-10 | 0.07-0.7 | 3 | 500-2500 | 35-170 | 70-300 | 5-20 | |||
1A | 65-300 | 4-20 | 8-30 | 0.55-2.1 | 4 | 1000-6000 | 69-414 | 150-600 | 10-41 | |||
2 | 125-600 | 8-40 | 20-80 | 1.3-5.5 | 5 | 500-3500 | 35-240 | 75-300 | 5-24 | |||
ELECTRICAL: Standard:5A,125V/250VAC-U.L.Recognized 5A,12/24VDC- U.L. Recognized Option -7: 0.2A, 60VDC- U.L. Recognized Gold contacts may be required for less than
WETTED MATERIAL: Diaphragm: Buna-N (Standard) | MANUFACTURER’S OTHER RATING: 5A@40VDC PROTECTION: Exposed Terminals -IP00 DIN HC-IP65 Flying Leads, M12, Deutsch Integral - IP69 REPEATABILITY: ± 2% of full set point range at 21°C SWITCH TYPE: Snap Action MECHANICAL LIFE: 1,000,000 cycles | TEMPERATURE RANGE: BUNA-N: -26℃~110℃ (® Registered Trademark of DuPont) Low Temp Nitrile: -40℃~110℃
MAXIMUM OVERPRESSURE: 9000 PSI (620 Bar) - Static WEIGHT: Approx. 0.09 kg | ||||||||||
Company advantage
Mass production
We have one production center in Nanjing and one production center in Anshan with 20,000㎡plant and 170 units of production equipments. The main annual capacity of sensors is about 2,000,000 pieces.
Imported equipments
We imported 20 sets of pressure controller and 150 units of testing ovens to our production line.
Informatization management
We have the information management system of CRM, PLM, ERP, MES and DINGDING etc.
Comprehensive testing
We have our own lab and testing equipment such as lightning stroke, surging, static electricity, vibration, high-low temperature impact test and helium mass-spectrum leak detection.
