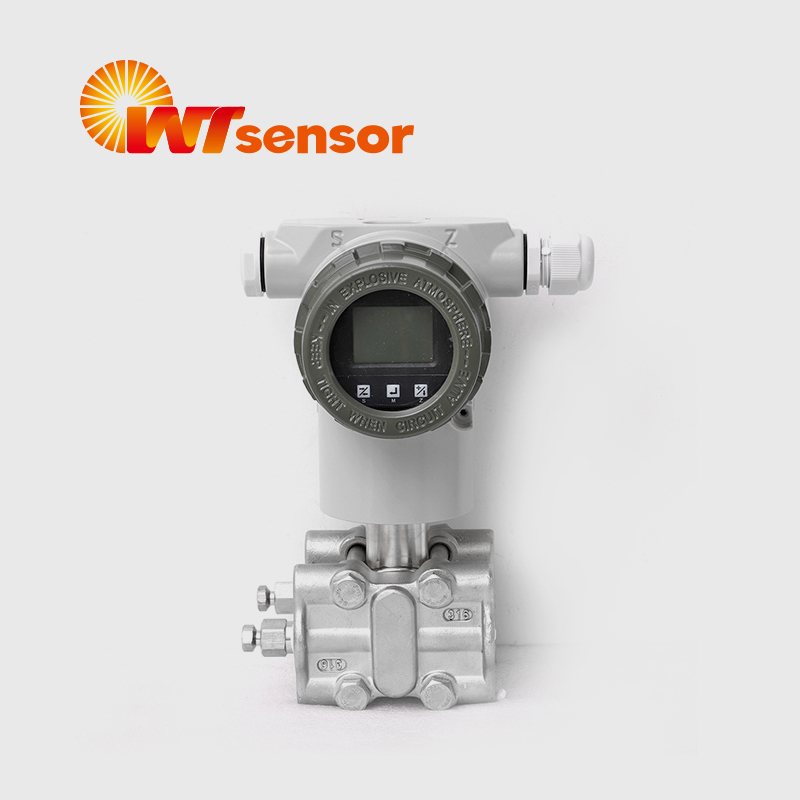

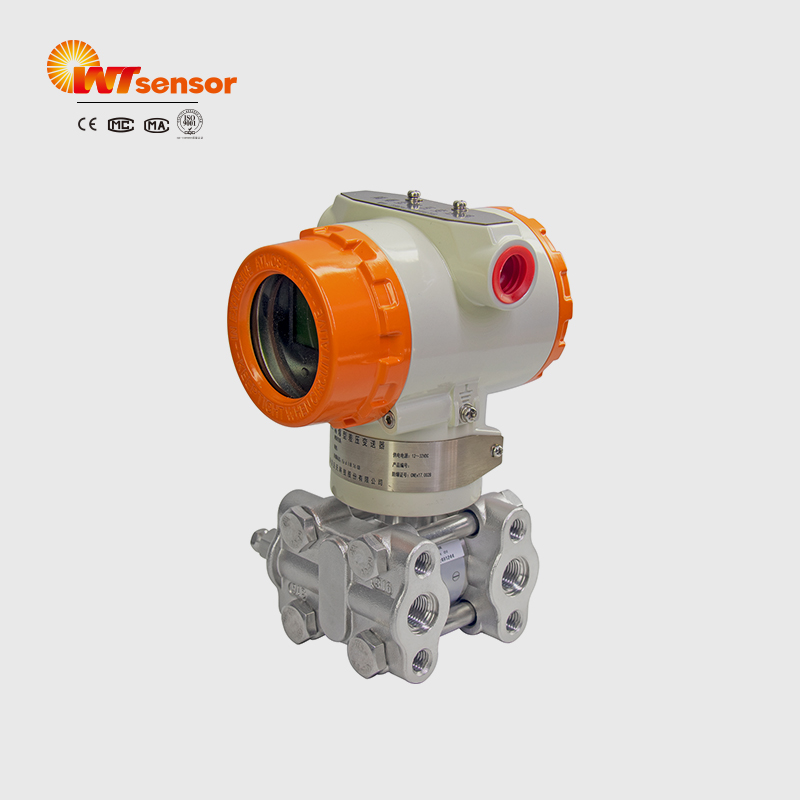

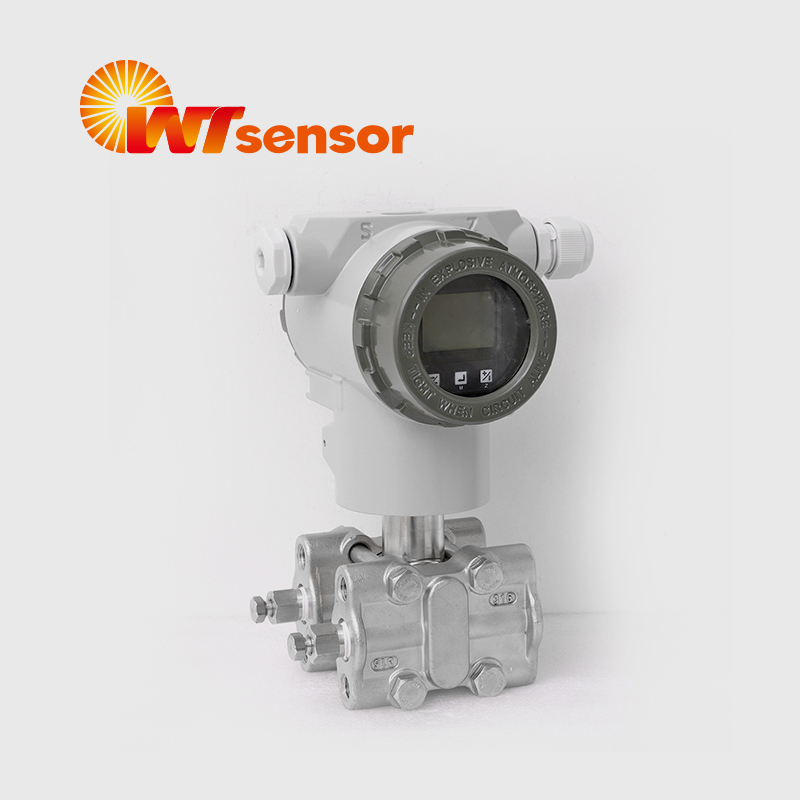

PCM3051S-DP Momocrystalline Differential Pressure Sensor

Features

 Advanced monocrystalline silicon differential pressure sensor adopted

 Wide pressure range covering -0.13MPa

 2-wire mode, 420mA analog output, HART® protocol digital communication

 Intelligent LCD gauge with backlight

 With both remote transmission and local zero and pressure range adjustment

Complete varieties, high accuracy, good stability

 Isolation ex-proof housing structure, strong resistance to frequency conversion interference

High static pressure, high overpressure protection

 Patented two pressure ends overpressure protection diaphragm design

 Lightning protection circuit design



Applications and industries

 Process control fields for the industries of petroleum, chemical industry, metallurgy, electricity, food, papermaking, medicine, machine manufacturing, scientific experiment and military aviation etc.

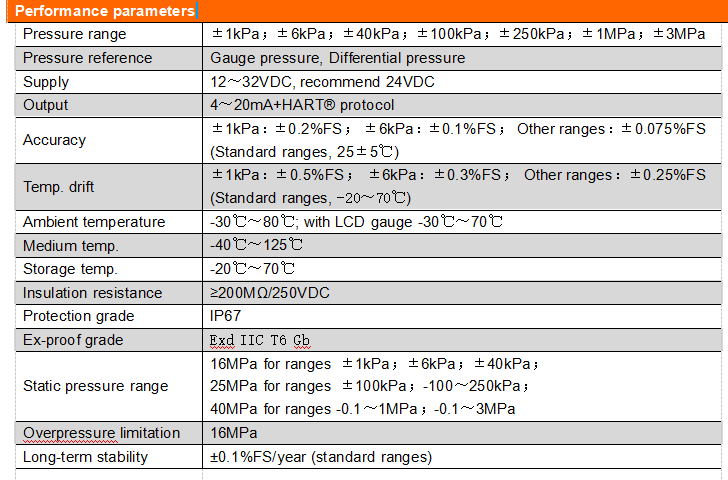

Product Parameters


Structural performance


Diaphragm material

316L, Hastelloy C



Exhaust/Drain valve

304



O-ring

Silicone rubber (contact with measurement medium)



Filling liquid

Silicon oil



Flange and clamp block

304



Housing material

Die-cast aluminium alloy, painted epoxy coating



Electrical connection

M20×1.5 (Female), NPT1/2 (Female)



Pressure connection

M20×1.5 with welded pipe, NPT1/4 (Female), NPT1/2, NPT1/2 (Female), G1/2 with welded pipe, G1/4, tri-valve set M20×1.5 with welded pipe (304/316 options), tri-valve set NPT1/4 (Female) (304/316 options)



Weight

3.5kg (not including accessories)

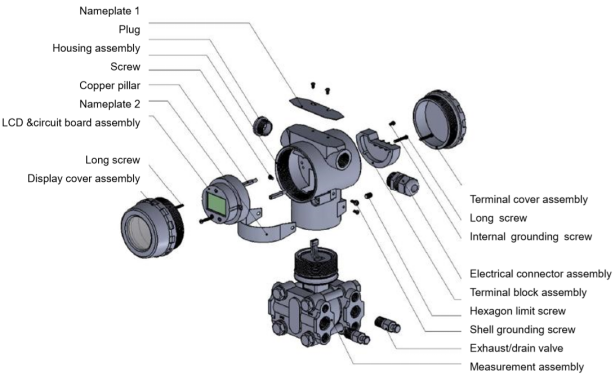

Component diagram

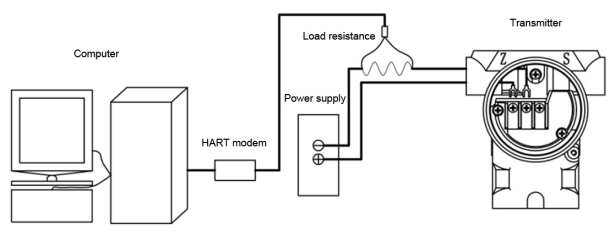

HART communication connection diagram

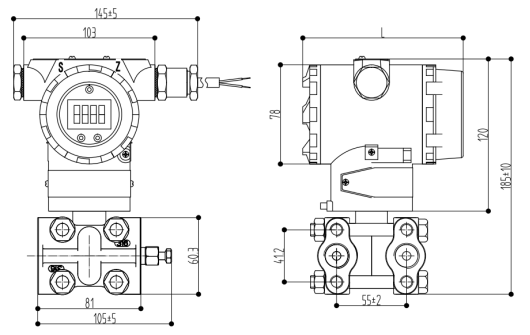

Dimensional drawing


Product model

                      Dimensional drawing                       In mm


PCM3051S-DP

(no accessory)


Note:

L=126±5mm if with display; L=108±5mm if without display
