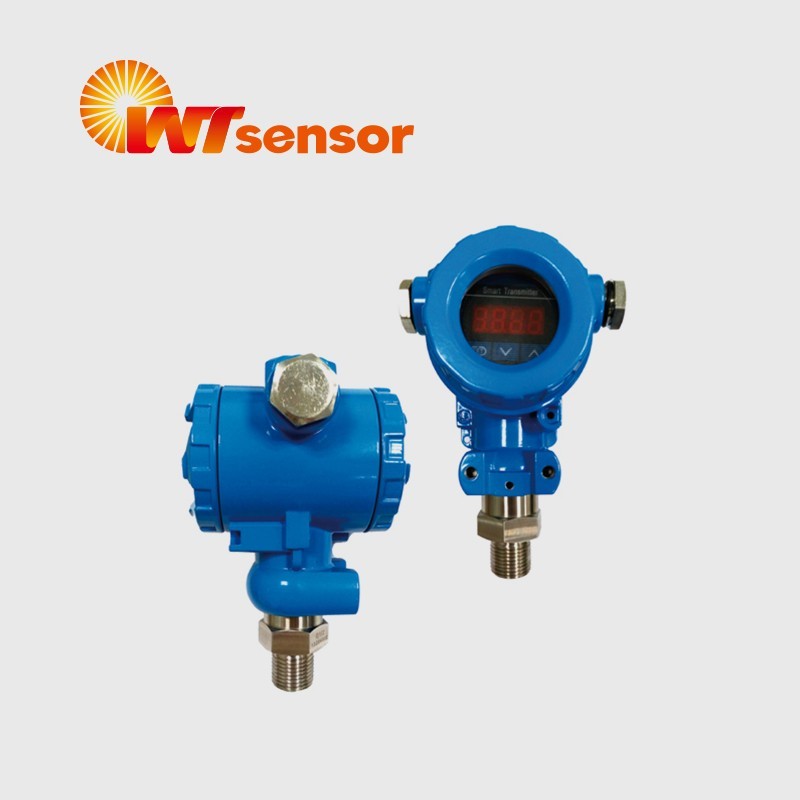

Flameproof Pressure Transmitter PCM401

Features

■ Diffused piezoresistive silicon pressure sensor

■ Solid and well-sealed aluminum alloy junction box, convenient for outdoor installation and use

■ For gas, liquid and steam pressure measurement

■ Provide low, medium and high pressure ranges

■ LCD option

Applications

■ Industrial site control

■ Coal mine

■ Oilfield & Gas network

■ Heavy Industry

■ Chemicals

■ Water supply network

Inquire Now Download

Product Parameters

	Performance parameters
	Pressure range		-0.1MPa…0~0.01MPa…100MPa
	Pressure reference		Gauge pressure, Absolute pressure, Sealed gauge pressure
	Operating temp.		-20℃~85℃
	Medium temp.		-20℃~85℃
	Storage temp.		-40℃~125℃
	Zero temp. coefficient		±1.5%FS (@-20℃~85℃)
	Span temp. coefficient		±1.5%FS (@-20℃~85℃)
	Overpressure		150%FS~300%FS
	Mechanical vibration		20g (20~5000HZ)
	Shock		100g (11ms)
	Accuracy		0.5
	Insulation		100MΩ/250VDC
	Response time		≤1ms (Up to 90%FS)
	Long term stability		±0.2%FS/Year
	Protection		IP65
	Ex-proof		ExdⅡBT6
	Material		Low copper aluminum alloy for housing; 316L for isolation diaphragm
	Medium compatibility		All media compatible with stainless steel 316L

Structure

Type		J12: Flameproof housing		J13: Flameproof housing with display
Dimension In mm

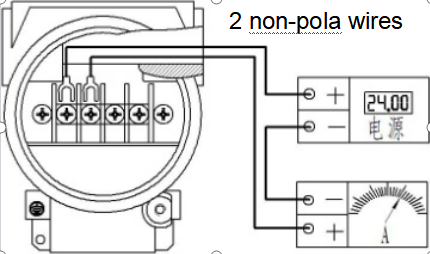

Wiring method (Current output)
Wiring method (Voltage output)

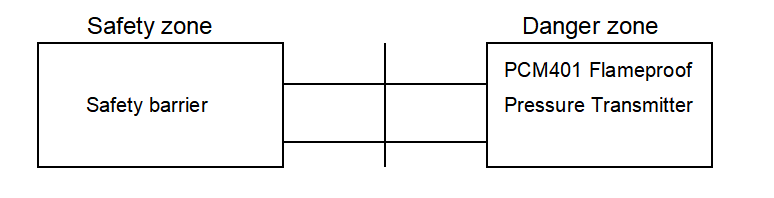

Flameproof parameters

Safety barrier parameters should meet: C0≤35V, I0≤35mA

Transmitter internal parameters: C1=0.01uF, L1=0

The distribution parameters of the connecting cable between safety barrier and the transmitter should meet: Cp≤Co-Ci, Lp≤Lo-Li

Flameproof parameters (cont.)

Note:

Uo: Maximum open circuit voltage of safety barrier

Io: Maximum short circuit current of safety barrier

Co: Maximum allowable capacitance outside the safety barrier

Lo: Maximum allowable inductance outside the safety barrier

Cp: Maximum allowable distributed capacitance of connecting cable

Lp: Maximum allowable distributed inductance of connecting cable

Ci: Maximum capacitance inside the transmitter

Li: Maximum inductance inside the transmitter

Pressure range selection
	Pressure range code	Pressure reference	Pressure range	Overpressure	Burst pressure	Remark
	10kG	G	0~10kPa	300％FS	600％FS
	20kG	G	0~20kPa	300％FS	600％FS
	35kG	G	0~35kPa	300％FS	600％FS
	70kG	G	0~70kPa	300％FS	600％FS
	100kG	G	0~100kPa	200％FS	500％FS
	160kG	G	0~160kPa	200％FS	500％FS
	250kG	G	0~250kPa	200％FS	500％FS
	400kG	G	0~400kPa	200％FS	500％FS
	600kG	G	0~600kPa	200％FS	500％FS
	1MG	G	0~1MPa	200％FS	500％FS
	100kA	A	0~100kPa	200％FS	500％FS
	160kA	A	0~160kPa	200％FS	500％FS
	250kA	A	0~250kPa	200％FS	500％FS
	400kA	A	0~400kPa	200％FS	500％FS
	600kA	A	0~600kPa	200％FS	500％FS
	1MA	A	0~1MPa	200％FS	500％FS
	1.6MS	S	0~1.6MPa	200％FS	500％FS
	2.5MS	S	0~2.5MPa	200％FS	500％FS
	6MS	S	0~6MPa	200％FS	400％FS
	10MS	S	0~10MPa	200％FS	400％FS
	16MS	S	0~16MPa	200％FS	400％FS
	25MS	S	0~25MPa	150％FS	400％FS
	40MS	S	0~40MPa	150％FS	300％FS
	60MS	S	0~60MPa	150％FS	300％FS
	100MS	S	0~100MPa	150％FS	300％FS

Note: G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.

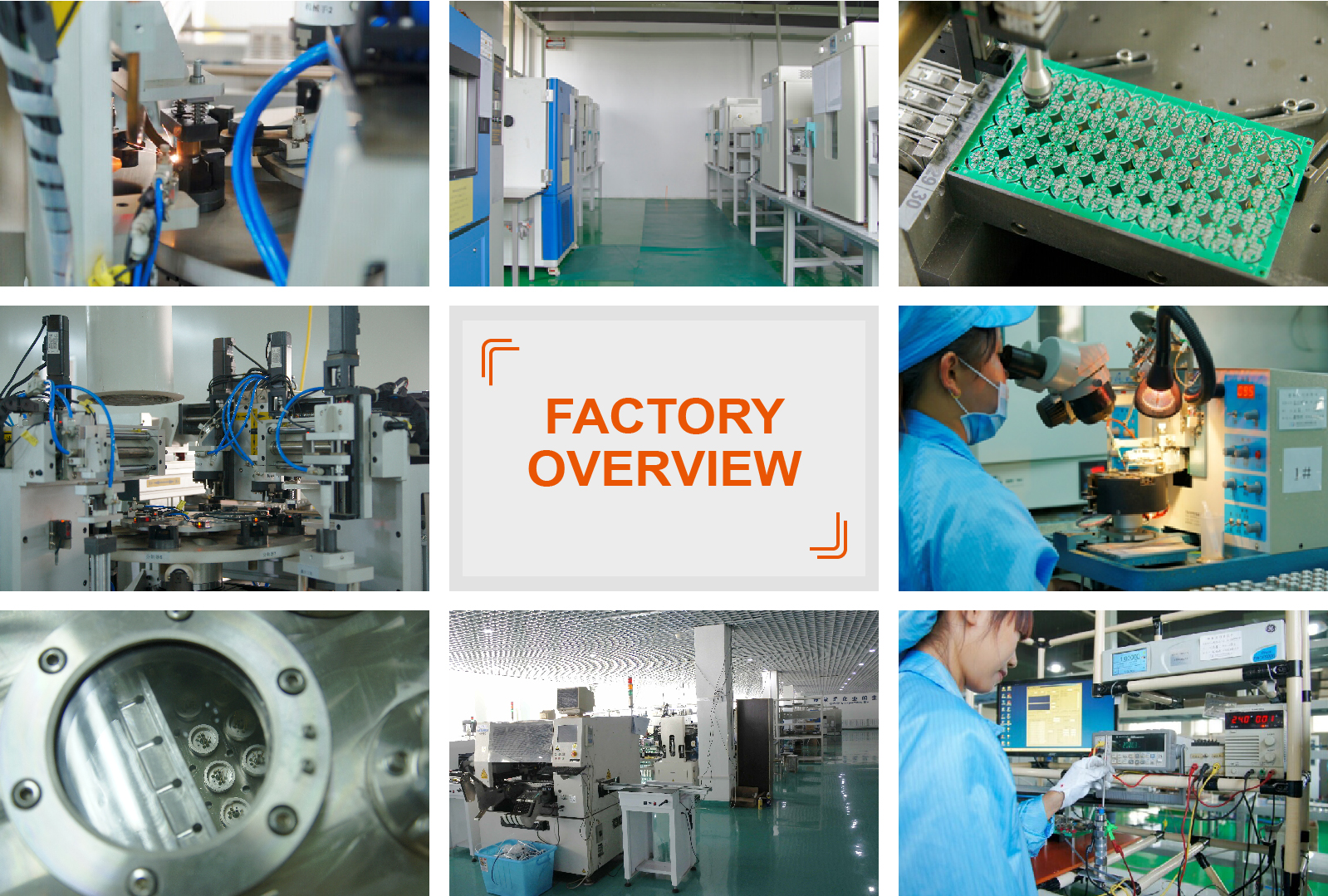

Production process
